PRODUCT DESCRIPTION
Fiber laser pipe cutting machine adopts Germany rofen laser 1000W~2000W fiber, automatic feeding device through CNC system, seamless connection with pipe cutting machine.Realize the lifting and loading of the whole bundle of pipes, control system for intelligent material layout, automatic conveying process.Save labor feeding cost and improve efficiency of pipe cutting machine.
PRODUCT FEATURES
1. The mechanical structure adopts cantilever type.Stable performance, ensure smooth operation of equipment.
2. The bottom layer of German PA8000 is a professional pipe cutting system with laser power regulation function, which can guarantee cutting quality and high stability.
3. Full-touch operating system, good human-machine interaction interface, convenient and fast operation.
4, Equipped with professional tube material nesting software, so that it has an efficient nesting function, save time and material.
5. High quality and high efficiency fiber laser generator, low processing cost, energy saving and environmental protection.
6. The machine adopts ac servo motor drive system, and the machine tool motion structure adopts gear and rack transmission, ensuring the high speed, high precision and high reliability of the equipment.
7, The gas system adopts integrated control type, advanced design, the whole set of pneumatic components import, can be connected to different auxiliary gas at the same time, and can be automatically converted.High pressure gas path design, improve the cutting ability of hard cutting materials such as stainless steel.
PROCESSING RANGE
1. Circular tube Φ 20 - Φ 150 mm * 6000 mm
2. Tetragonal tube □ 20-□ 100*6000mm
3. The length of each side of the rectangular tube is 20~100mm
4. Oval tube 20~100mm
5. Waist tube 20~100mm
6 Hexagonal pipe □20* 20-□ 100*100mm
7. Cutting 0.5~10mm ,carbon steel pipe 0.5~5mm ,stainless steel pipe, galvanized plate pipe, electrolytic plate pipe, silicon steel and other thin metal pipe.
TECHNICAL PARAMETERS
|
Repeat Position Accuracy |
±0.03mm |
Maximum Operating Speed |
40m/min |
Maximum Accelerated Speed |
1G |
|
Transmission method |
Precision Lead Screw, Rack and Pinion |
Rated Voltage and Frequency of Power Supply |
380V 50Hz |
Laser Power |
1000W/2000W(Optional) |
Volume |
18m3 |
|
Weight |
4000kg |
Dimension |
9000*3060*2200 |
|
Tool Machine Operating Humidity |
＜90% |

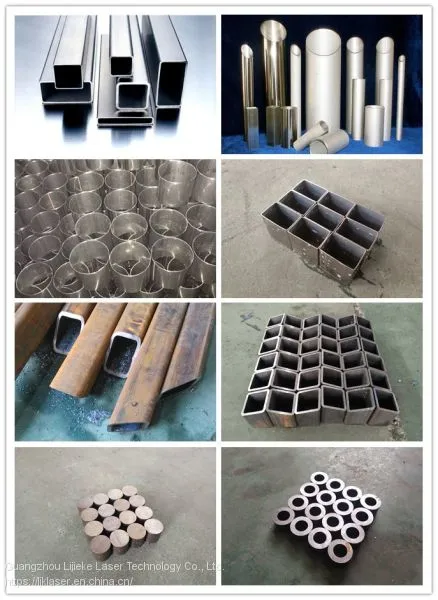

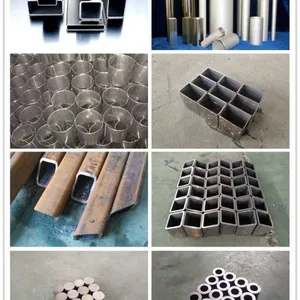

Effects
