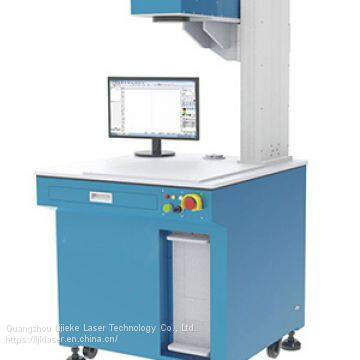

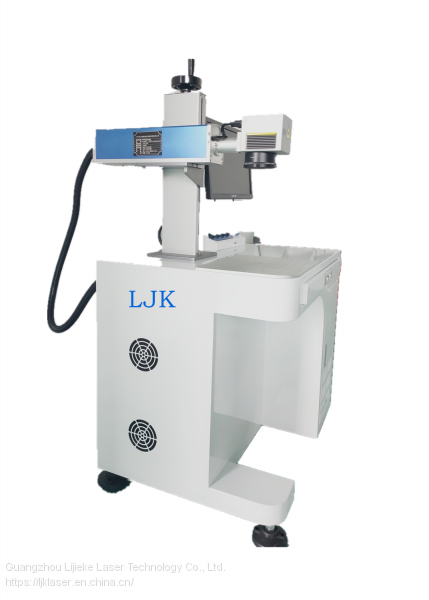

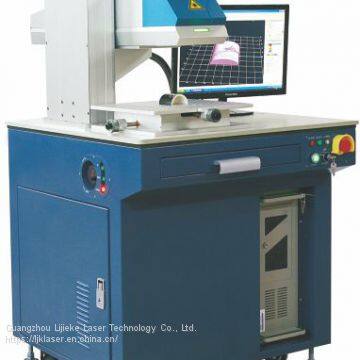

Help CenterLJK 10W-50W Fiber Laser Marking (Sculpture) Machine for Metals / PVC/ABS/Wafer Electrical Appliances/ Hardware/Jewelry
Related Products
-
220V UV Laser Marking Machine for Ultra-Fine Processing FPCB/ LCD/ WaferUS$ 10720 - 13150MOQ: 1 Set -
LJK 10W 20W 30W 50W Visual Fiber Laser Marking Machine for Metal / Silver / Gold / Stainless SteelUS$ 7860 - 14000MOQ: 1 Set
-
500W 1000W Robot Hand Laser Welding Machine for Metal/Silver/Gold Cookware Automobile Digital AccessoriesUS$ 60000 - 78580MOQ: 1 Set
-
60W Automatic Laser Precision Spot Welding Machine for Metal Jewelry WatchNegotiableMOQ: 1 Set
-
UV Picosecond Laser Cutter Machine PCB/Ceramic/Sillicon/Teflon CuttingUS$ 214290 - 520000MOQ: 1 Set
ADVANTAGES
1. Excellent beam quality: The beam quality of the LJK-FB series fiber laser marking machine is better than that of the traditional solid-state laser marking machine. It is the output of the fundamental mode (TEMOO). The concentrated spot diameter is 8um, and the divergence angle is 1/4 of that of semiconductor-pumped laser. It is especially suitable for precision and fine marking.
2. Good laser engraving effect: It completely overturns the notion that the marking machine cannot carve alumina oxide directly into black surface - it can quickly carve alumina products into pure black surface as beautiful as screen printing, without adding any auxiliary materials such as medicines.
3. Low cost and low power consumption.
4. Maintenance-free: The laser does not require any maintenance and does not require adjustment or cleaning of the lens.
5. Long service life: Using a laser diode as the pump source, the average working time is up to 100,000 hours.
6. High marking speed: The processing speed is 2-10 times that of the traditional laser marking machine.
USAGES

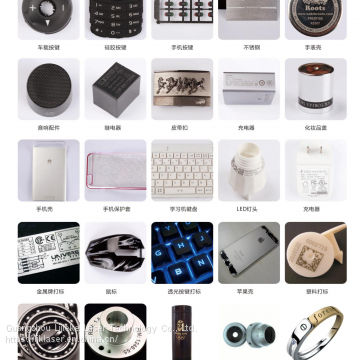

Applicable materials:It is suitable for marking all kinds of metals, alloys and some non-metals, such as ABS, PVC, epoxy resin, silicon wafer, paint (electronic component packaging insulation, automobile instrument buttons, mobile phone buttons, audio transmission keys), etc.
APPLICATIONS
It is widely used in electrical and electrical appliances, electronic communications, automotive and motorcycle accessories, precision hardware, gift jewelry, glasses and clocks, instrumentation and sanitary ware and other industries.
SPECIFICATION
Machine model |
LJK-FB-10/20/50/100 |
LJK-FB-M-20/30 |
Focus lens |
F-160（Optional） |
F-160（Optional） |
Markup range |
100mm*100mm |
100mm*100mm |
Working distance |
195mm（±5mm,） |
195mm（±5mm,） |
Marking speed |
300cps |
300cps |
Minimum character |
0.5mm |
0.5mm |
Minimum line width |
30um |
30um |
Laser Type/Wavelength |
Optical fiber/1064nm |
Optical fiber/1064nm |
output power |
10/20/30/50 |
20/30 |
|
Peak Power stability |
||
Average Power Stability |
||
Beam quality |
||
Pulse Repetition Frequency |
20KHz/200KHz |
20KHz/1000KHz |
Cooling mode |
Air cooling |
Air cooling |
Operating ambient temperature |
15℃-35℃ |
15℃-35℃ |
Electricity requirements |
220v/Single-phase/50HZ、2.5A |
220v/Single-phase/50HZ、2.5A |
Weight |
100KG |
100KG |
Total Power |
0.5KW |
0.5KW |

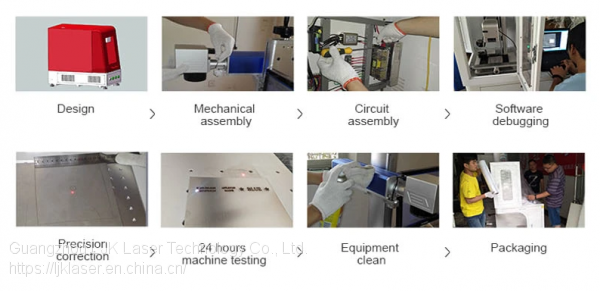

Production Process
