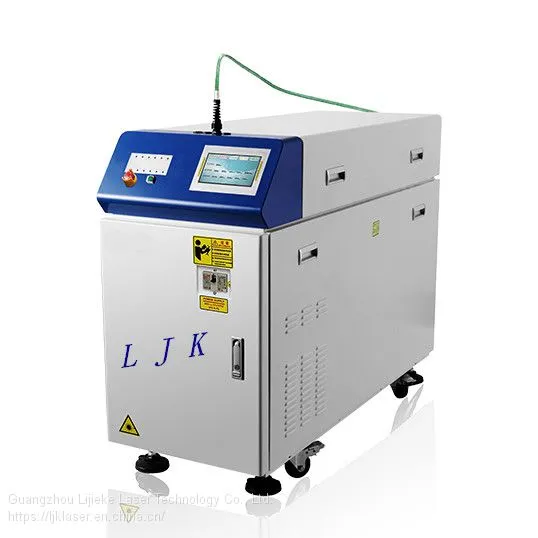

Help CenterLJK Laser YAG Automatic Fiber Laser Welding Machine for Medical Equipment/ Electronic Componets/ Cell Phone Battery
Related Products
-
LJK 50-20W Laser Automatic Laser Plastic Welding Machine for MoldUS$ 54290 - 214290MOQ: 1 Set -
LJK 220V/380V 200W/300W Output Laser Fiber Galvanometer Laser Welding MachineUS$ 24000 - 26860MOQ: 1 Set
-
500W 1000W Robot Hand Laser Welding Machine for Metal/Silver/Gold Cookware Automobile Digital AccessoriesUS$ 60000 - 78580MOQ: 1 Set
-
60W Automatic Laser Precision Spot Welding Machine for Metal Jewelry WatchNegotiableMOQ: 1 Set
-
LJK 200w 500w 800w 1000w 2000w Laser Handheld Laser Welding Machine for Metal, Stainless SteelUS$ 12290 - 16860MOQ: 1 Set
1. Split water cooler automatically refrigerates according to the temperature set by the system to ensure the safe operation of the equipment.
2. Laser energy closed-loop feedback controls laser power supply to avoid the influence of Xenon lamp aging on laser power, which is more stable than the output of current feedback type. 16 kinds of pulse waveform modes can be set, and semiconductor red light indicates positioning, which enables the welding of different materials.
3. Through the internal flexible optical combination, the time division, energy division and multi-position welding are realized at the same time. The beam quality is good, the focusing spot is small, the solder joint size is uniform and the depth is the same.
4. International first-class optical fiber laser, years of industrial application, long service life, maintenance-free, stable and reliable.
5. CNC system is simple and easy to learn.
Applications:
It is suitable for the welding of stainless steel, gold, silver, alloy, steel, diamond and other same or different materials. It is widely used in cell phone batteries, sensors, medical devices, craft gifts, watches, electronic components, precision machinery, communications and other industries.
|
Laser Machine |
Model |
LJK-LPF150-500/HY-PFLW150-500 |
|
|
Control System |
Negative Current/Energy Feedback |
||
|
Laser Wavelength |
1064nm |
||
|
Maximum Average Power |
150-500W |
||
|
Maximum Single Pulse Power |
75-100J |
||
|
Maximum Peak Power |
6.0KW |
||
|
Pulse Width |
≤20ms |
||
|
Repeat Frequency |
≤100Hz |
||
|
Repeat Stability |
±3(Frequency＞6Hz), ±1%（Frequency＜2Hz） |
||
|
Energy Spectroscopic |
Up to 4 |
||
|
Time Spectroscopic |
Up to 4 |
||
|
Fiber Core Diameter |
400/600Micron |
||
|
Indicate Light |
Red Visible Light |
||
|
Safety Shutter |
Open/Close Sensor with Shutter |
||
|
System |
Laser Power Supply |
Demand for Electricity |
Three Phase 380V AC ±10%-15%,50/60Hz |
|
Maximum Input Electricity |
32-63A |
||
|
Maximum Power |
6-18KW |
||
|
Switching Electricity Capacity |
50A |
||
|
Cooling-water Machine |
Heat Exchange Mode |
Cooling-water Machine Cooling |
|
|
Working Environmental temperature |
15-35℃ |
||
|
Heat Exchange Capacity |
2-5P |
||
|
Size and Weight |
Maximum Mainframe Size (length×width ×height) |
1450mm*700mm*1100mm |
|
|
Cooling-water Machine Size (length×width×height) |
800mm*580mm*1500mm |
||
|
Workbench Size(length×width×height) |
N/A |
||
|
Mainframe Weight |
About 300KG |
||
Effects
