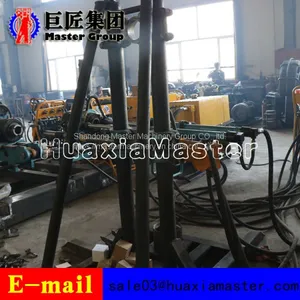

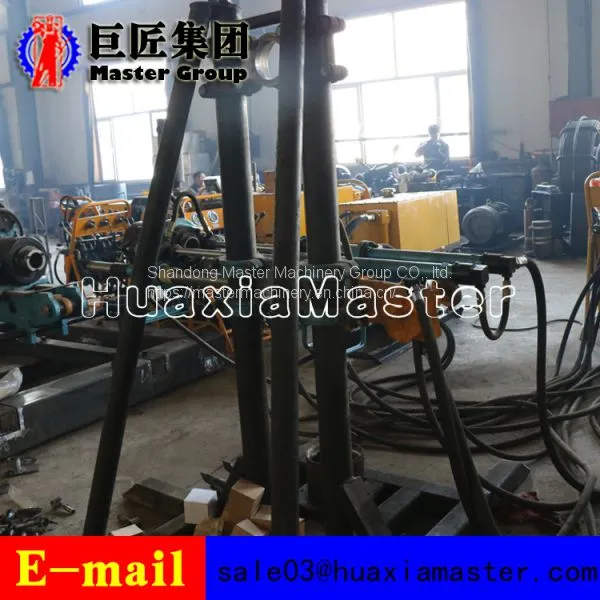

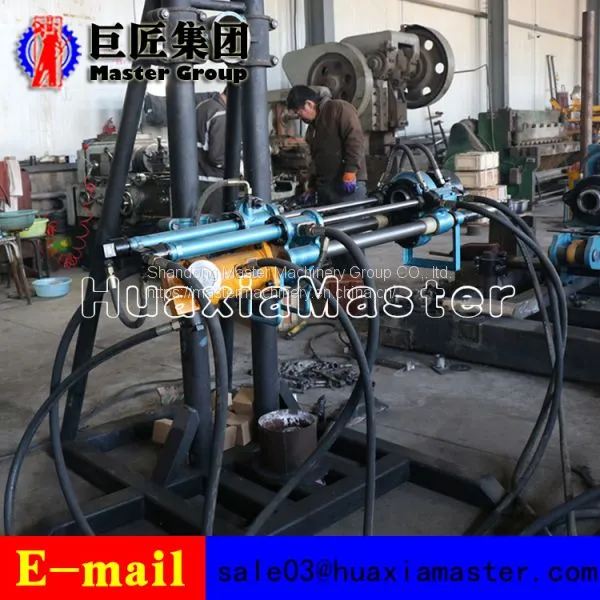

Help CenterMetal Mine Drilling Rig Can Work in the Tunnel Drilling Machine Fast and Convenient
Related Products
-
Steel Core Drilling Machine for Metal Mine Drilling Machine Can be DisassembledUS$ 4000 - 5500MOQ: 1 Set -
360-degree Metal Mine Coring Drilling Machine Surface Coring Drilling RigUS$ 4000 - 6000MOQ: 1 Set
-
360-degree Metal Mine Coring Drilling Machine Surface Coring Drilling RigUS$ 4000 - 6000MOQ: 1 Set
-
Single Sampling Drilling Rig Soil Coring Drilling Machine Free of ContaminationUS$ 4000 - 5500MOQ: 1 Set
-
Selling Exploration Drilling Rig Portable Soil Sampling Drill Machine is Easy and ConvenientUS$ 4000 - 5500MOQ: 1 Set

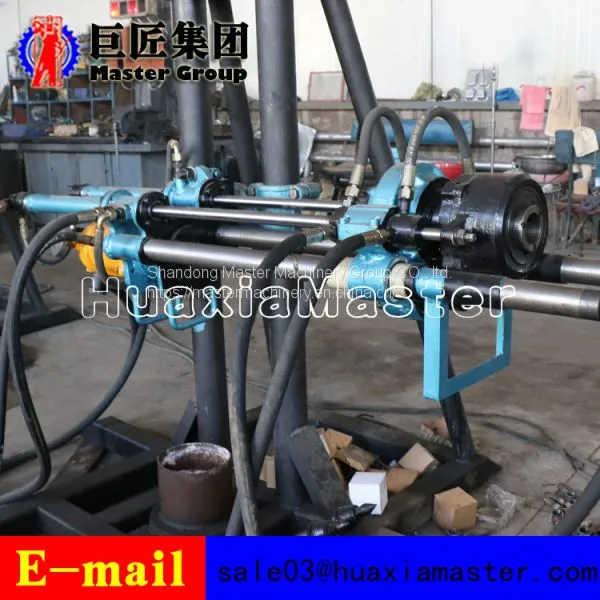

1.Characteristics of KY-150 full hydraulic drill
a.KY-150 full hydraulic drilling machine has good disintegration, convenient transportation, flexible arrangement of drilling rig and mechanization of drill rod unload, which can reduce labor intensity and improve work efficiency, and can be stepless speed regulation.
b.KY-150 full hydraulic drill has the function of linkage. It is simple and safe through the control platform. The spindle of the gyration adopts the through hole structure. The length of the drill rod is not restricted by the drilling machine, and it can also be applied to the cored cored drilling.
c.KY-150 full hydraulic drilling machine uses full hydraulic operation to make the structure more reasonable, more complete function, variable motor, wide speed regulating range, high speed drilling of alloy steel and stone, and hard alloy drilling at low speed, and it is suitable for any inclination drilling in the tunnel or surface drilling.
2.Structure composition of KY-150 full hydraulic drill
The KY-150 fully hydraulic drilling rig adopts the structure of all hydraulic power head, and consists of three parts: main engine, pump station and console.
3.The technical parameter of KY-150 full hydraulic drilling machine
Borehole diameter |
Φ36.5mm/Φ46.5mm |
Drilling depth |
150（33 Steel drill rod）/120（ø43 Steel drill rod）/150(43 Aluminum alloy steel drill rod) |
Borehole angle |
0°-360° |
Spindle speed |
400-1400 r/min |
Spindle output torque |
87-300 n.m |
Rated pulling force |
30 kn |
Rated pull speed |
> 0.3 m/s |
Oil supply mode |
double gear pump |
Type of hydraulic oil |
anti wear hydraulic oil YB-N46/YB-N32 (winter) |
Motor model |
variable motor A6V55MA |
Motor specifications |
Y180M-4/18.5 kw |
Equipment weight |
mainframe 166kg/pillar 40kg/operation console 86kg/power car 210kg |
