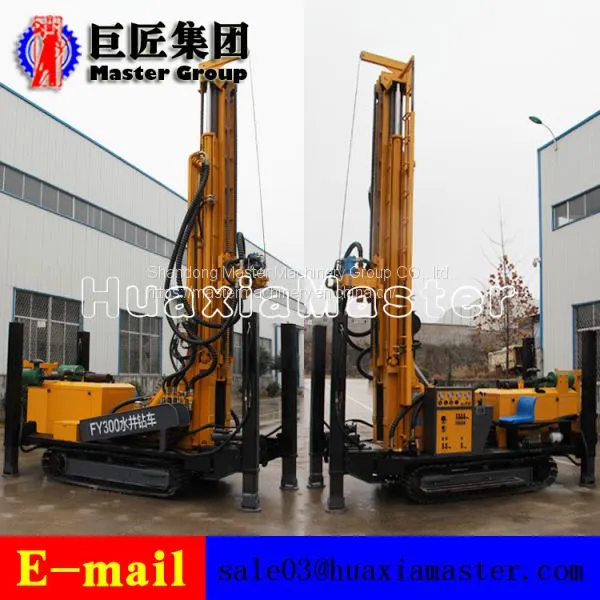

Crawler Pneumatic Water Well Drilling Rig Drilling With Large Diameter and Deep Drilling Footage Flexible and Efficient
US$ 4000 - 6000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Master Machinery
Place of Origin:
China
Model Number:
FY-300
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Huaxia Masetr Sells 400 m Pneumatic Well Drilling Rig, Tracked Large Well Drilling MachineUS$ 4000 - 6000MOQ: 1 Set -
Water Well Drilling Machine Powered by Compressor, Tracked Large Diameter Pneumatic Drilling MachineUS$ 4000 - 6000MOQ: 1 Set
-
Power Grinding Disc Drilling Machine, Large Diameter Well Drilling Rig Easy to DisassembleUS$ 4000 - 6000MOQ: 1 Set
-
Kohler Engine Vertical Backpack Portable Core Drilling Rig With Diamond BitUS$ 4000 - 6000MOQ: 1 Set
-
Single Sampling Drilling Rig Soil Coring Drilling Machine Free of ContaminationUS$ 4000 - 5500MOQ: 1 Set
Brand Name
Master Machinery
Place of Origin
China
Model Number
FY-300
Type
Rotary Drilling Rig
Certification
ISO-9001
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
Six Months
Power Type
Diesel
Usage
Water Well
Condition
New
Power(W)
Diesel
1.The range of application of FY300 crawler type gas drilling rig
Applicable to civil engineering drilling, geothermal drilling, drilling with large diameter and deep drilling footage, fast, flexible and efficient.
2.The technical parameter of FY300 crawler type gas drilling rig
model |
FY300 |
|
Gross weight |
T |
8.8 |
Dimension |
mm |
4350*1850*2750 |
Aperture |
mm |
140-325 |
Drilling depth |
m |
300 |
Feed stroke |
mm |
6000 |
Travel speed |
km/h |
2 |
Grade ability |
Max. |
30° |
Rising height from ground |
mm |
230 |
Wind pressure |
Mpa |
1.7-3.3 |
Air consumption |
m³/min |
23 |
Engine power |
kw |
85 |
Rotary speed |
rpm |
55-115 |
Rotation torque |
N.m |
7200-8500 |
