Product Details
Brand Name | Master Machinery | Place of Origin | China | |
Model Number | qtz-3d | Type | Rotary Drilling Rig | |
Certification | iso-9001 | After-sales Service Provided | Engineers available to service machinery overseas | |
Warranty | Six Months | Power Type | Electric | |
Voltage | 220v | Usage | Other, Soil Sampling | |
Condition | New | Power(W) | Electricity |
Product Description

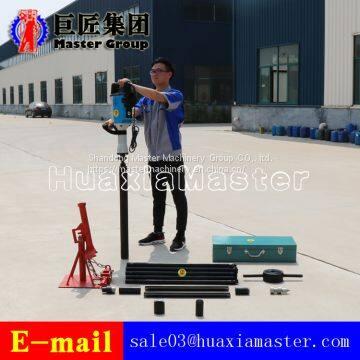

.A brief introduction of QTZ-3D portable electric soil drill
QTZ-3D portable electric earth drill is an electric version of the QTZ-3 type gasoline engine earth drill rig of Shandong Master Machinery Group Co.,Ltd.
The improvement of QTZ-3D electric earth drilling rig is mainly engine system than that of QTZ-3 gasoline drilling rig. The QTZ-3D electric earth drilling rig selects pure copper winding two phase electric motor as a power source. The advantage of using the gasoline engine as the power source is its stability, and it can continuously improve the working efficiency with a certain kind of power operation equipment. It greatly improves the feed speed. In addition, QTZ-3D electric earth drilling rig is easy to operate, safe and stable, and can greatly reduce the labor force of soil sampling personnel.
2.Application field of QTZ-3D portable electric soil drilling rig
Geotechnical investigation; environmental soil survey; agricultural soil survey;
Groundwater survey; coastal geological survey; wetland environmental investigation;
Tailing pond investigation, archaeological investigation, physical chemistry exploration secondary halo sampling; The description of soil structure.
3.Technical parameters of QTZ-3D portable electric earth drilling rig
QTZ-3D portable electric earth drilling rig | |
Voltage | 220v |
Power | 3.6kw |
Fire mode | Switch mode |
energy consumption | Low power consumption |
Impact times | 2600min/m |
Impact energy | 60j-79j |
Core depth | 15m-20m |
Host weight | 22kg |
4.QTZ-3D portable electric driller configuration list
Name | Model | Unit | Quantity |
Electric earth drilling rig | QTZ-3D | Platform | 1 |
Shock reception | 32*150 | Pcs | 1 |
Cones | 32*80 | Pcs | 19 |
Drill pipe | 32*700 | Root | 19 |
Taper wire | 32*100 | Pcs | 19 |
head | 32*50 | Pcs | 1 |
Hoop | 50*150 | Pcs | 1 |
Open tube | 50*600 | Root | 1 |
Double-edged pipe boots | 50*100 | Pcs | 2 |
Head | 32*70 | Pcs | 1 |
Hoop | 70*150 | Pcs | 1 |
Open tube | 70*600 | Root | 1 |
Inner edge pipe boots | 70*100 | Pcs | 1 |
Outer edge pipe boots | 70*100 | Pcs | 1 |
Portable sounding hammer | 10kg | Pcs | 1 |
Sounding the head | 32 | Pcs | 1 |
Double sided hand | 32 | Pcs | 1 |
Touch probe | 32 | Pcs | 1 |
Puller | Three force arm | Set | 1 |
Pipe forceps | 80mm | Hold | 1 |
Hold-all | Pcs | 1 |
