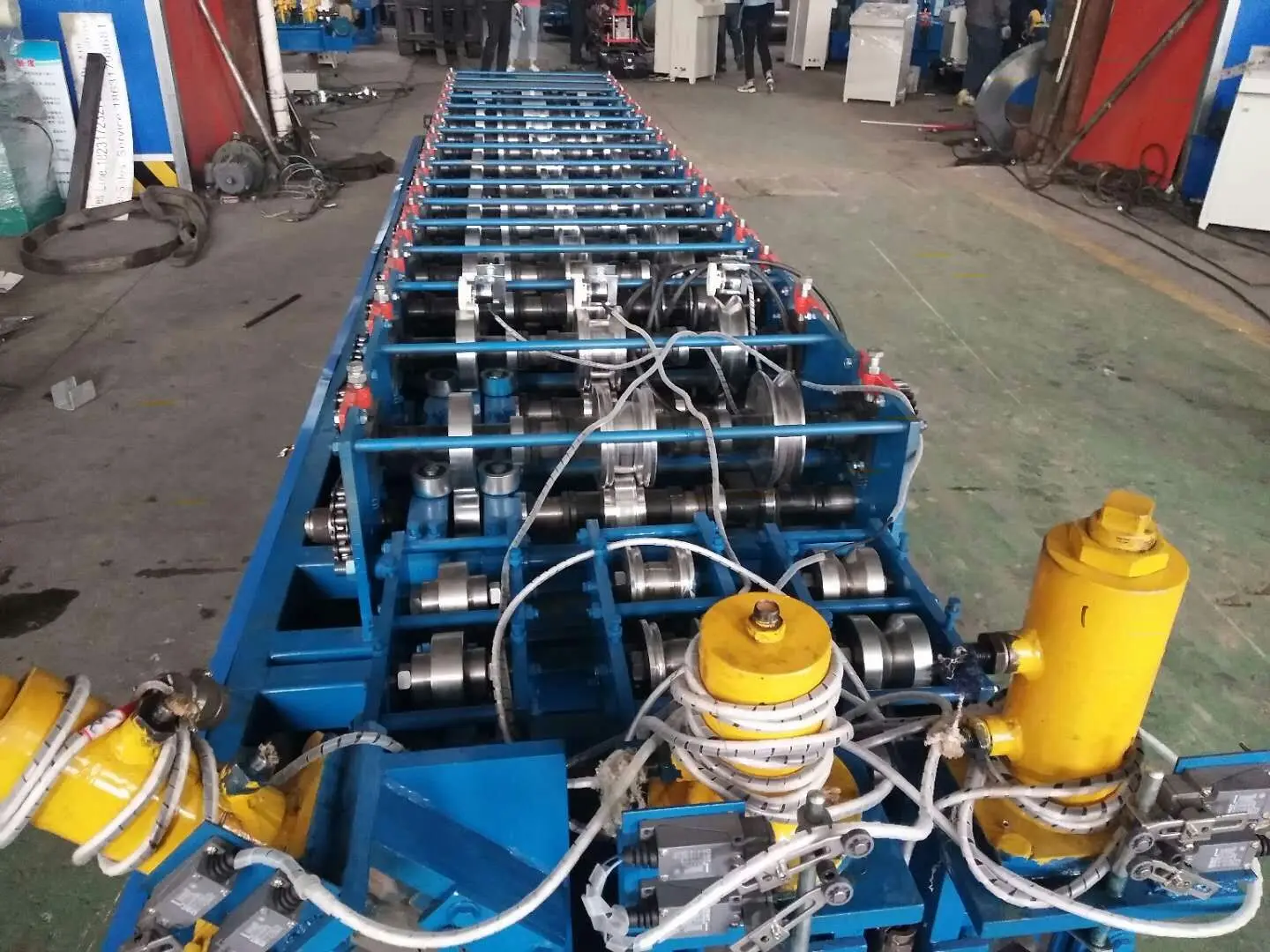

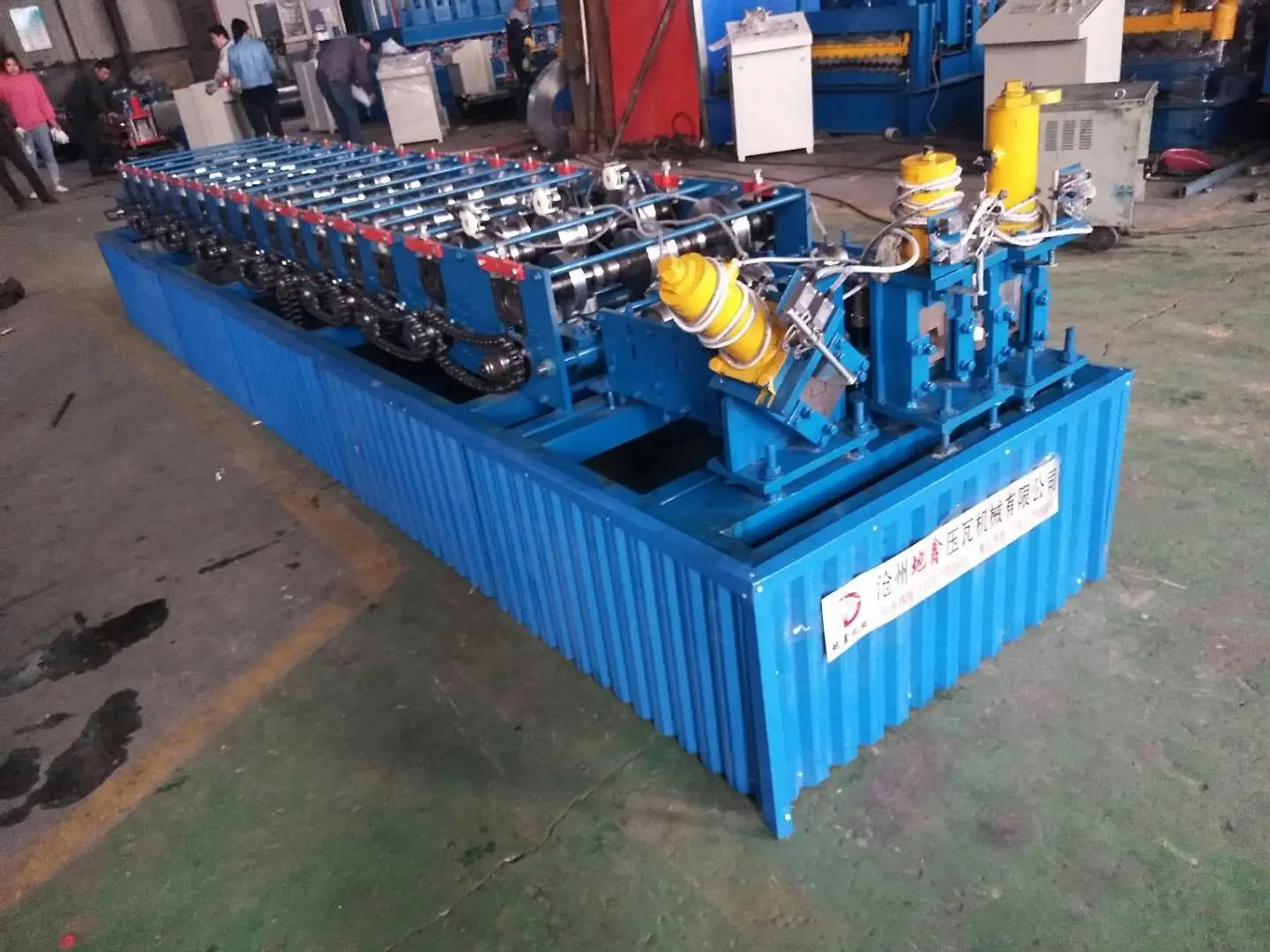

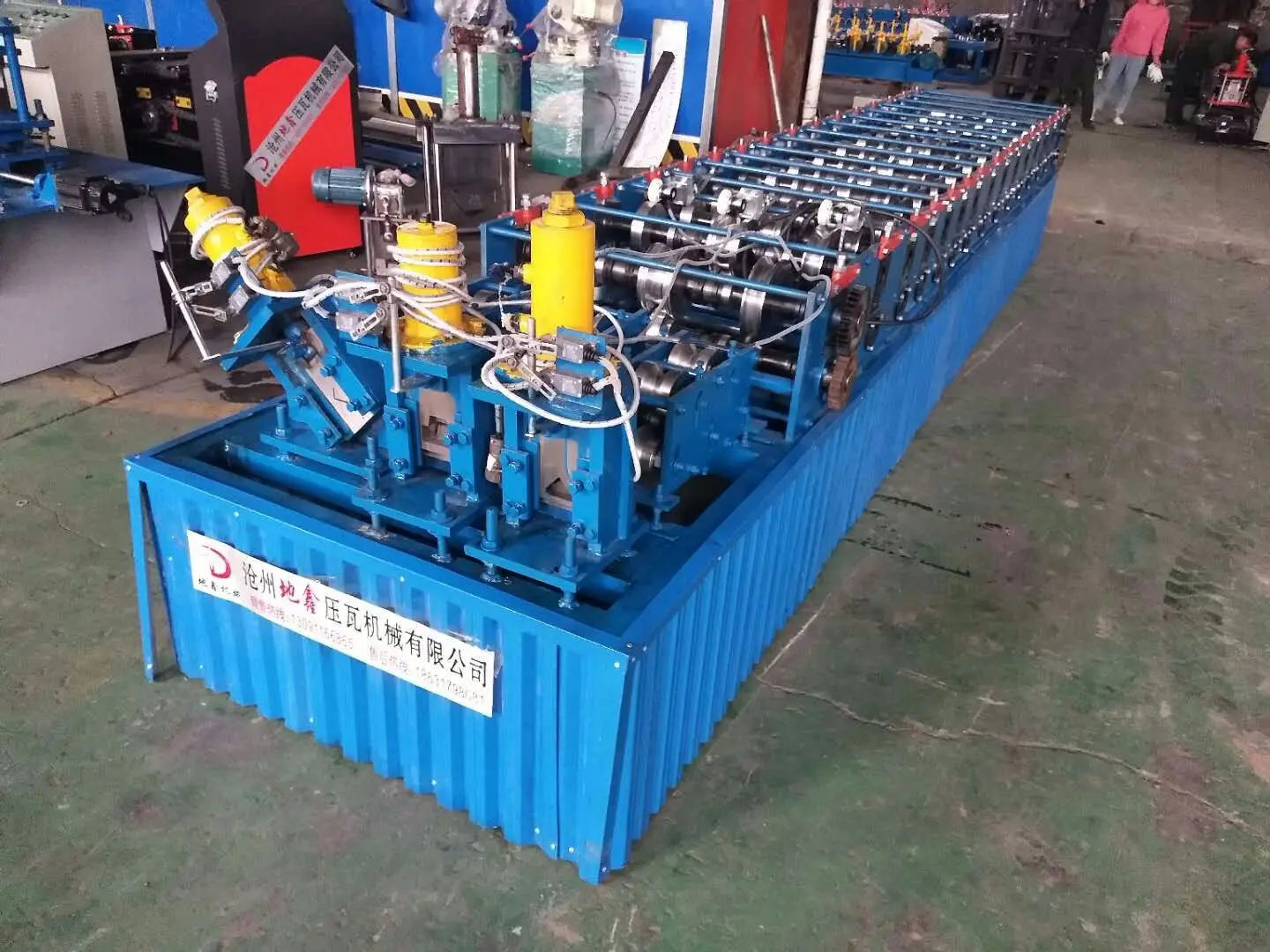

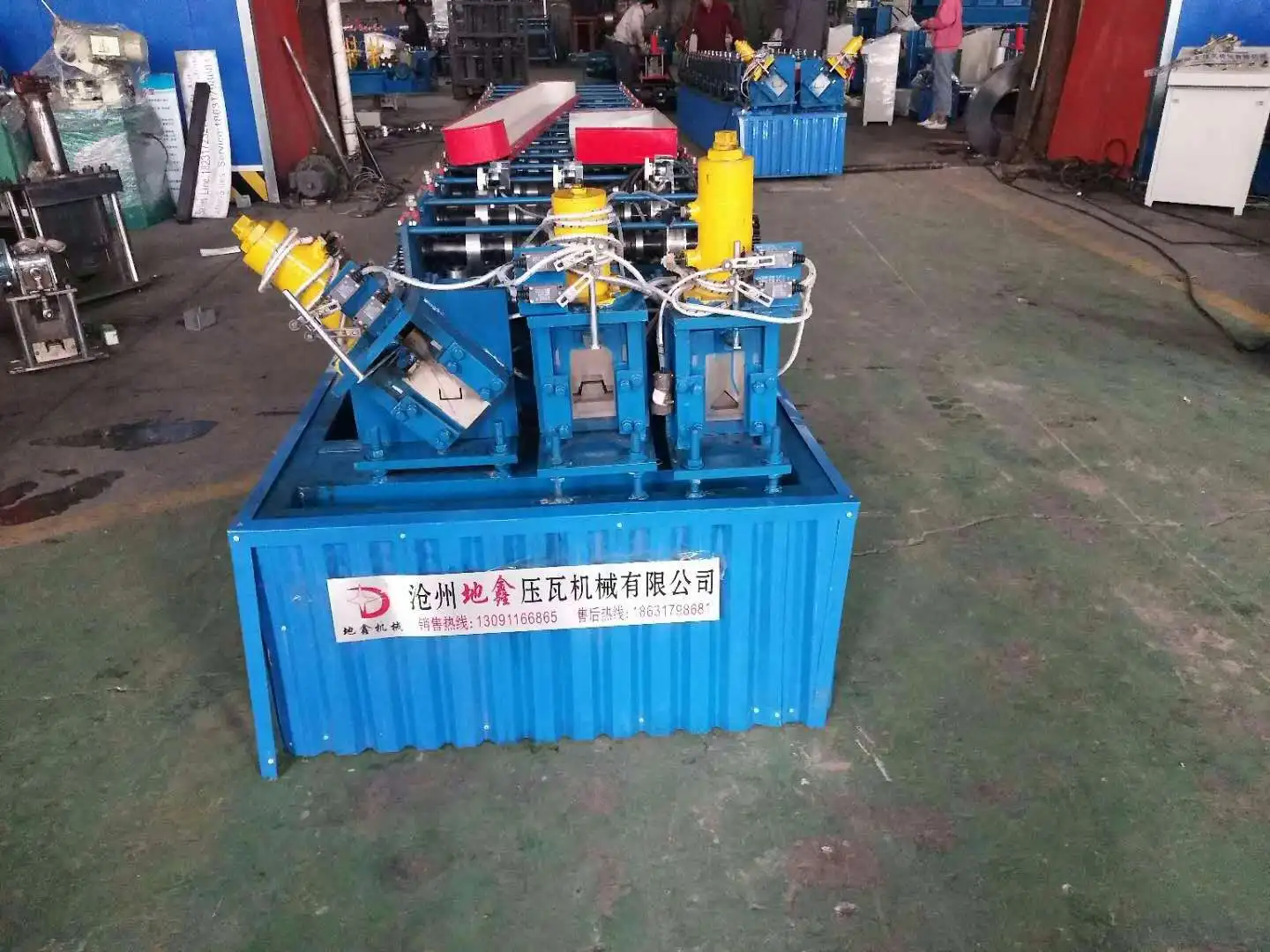

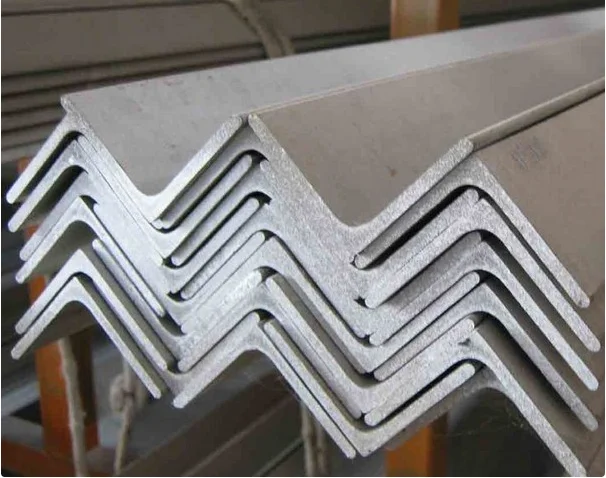

Light steel keel three profiles wall iron angle For Construction omega U roof truss forming machine
We use the best quality raw materials, so you can trust our quality.Machines are not only economical in price, but also guaranteed in quality.
| specification for double line two profile light steel keel C U or Omega channel making machine | |||
| Coil Material | type | Colored Steel Plate, Galvanized Board, Aluminum Plate | |
| width | 100---300mm (according to customer requirements and profile drawing) | ||
| thickness | 0.3-1mm | ||
| Manual Decoiler | inside diameter | 450-508mm | |
| coil load | 5T | ||
| Forming Device | shaft material | 45#steel-high quality steel, diameter 50 mm | |
| roller material | 45# steel with chrome coating | ||
| roller station | 12 (depends on final design) | ||
|
Main frame |
300 H steel | ||
| board thickness | 16mm | ||
| Cutting System | cutting material | Gcr12 with quench treatment | |
| hardness | HRC55-58 | ||
| tolerance | +-1.5mm | ||
| Weight | around 2.5T(depends on final design) | ||
| Dimension | 5000mm*800mm*1300mm(depends on final design) | ||
| Control System | PLC | ||
| Total Power | 4+3kw (depends on final design) | ||
| Voltage | 380V, 50HZ, 3 phases or as your need | ||
| Productivity | 8--15m/min ordinary speed, 20--40m/min higher speed | ||
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q3. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q4. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
