Popular Ceiling Angle Omega Light Keel Stud Steel Roll Forming Machine

Popular Ceiling Angle Omega Light Keel Stud Steel Roll Forming Machine photo-1

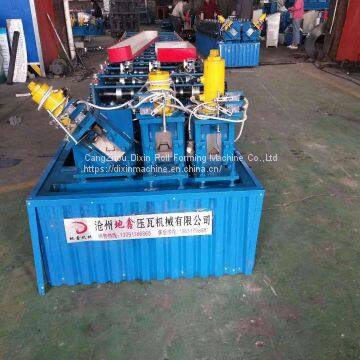

Popular Ceiling Angle Omega Light Keel Stud Steel Roll Forming Machine photo-2

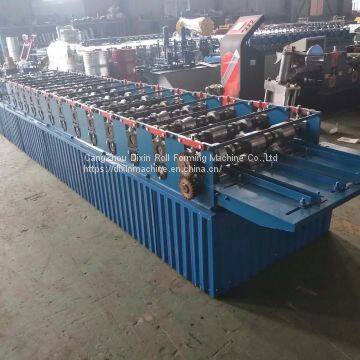

Popular Ceiling Angle Omega Light Keel Stud Steel Roll Forming Machine photo-3

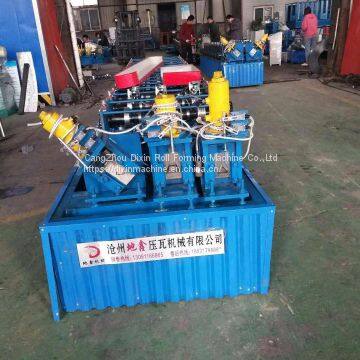

Popular Ceiling Angle Omega Light Keel Stud Steel Roll Forming Machine photo-4

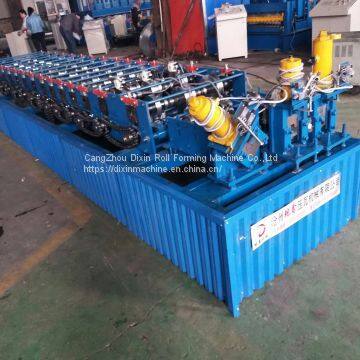

Popular Ceiling Angle Omega Light Keel Stud Steel Roll Forming Machine photo-5
US$ 8000 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dixin
Place of Origin:
China
Model Number:
5m
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
30 days
Brand Name Dixin
Place of Origin China
Model Number 5m
Use Roof
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 2T
Production Capacity 8-12m/min
Condition New
Voltage 380v
Power(W) 4kw
Type Tile Forming Machine
Tile Type Steel

Popular Ceiling angle omega light keel stud steel  roll forming machine



The process of light steel keel roll forming machine:
Process flow: unwinding - directing - forming - cutting - receiving

WorKing flow..png

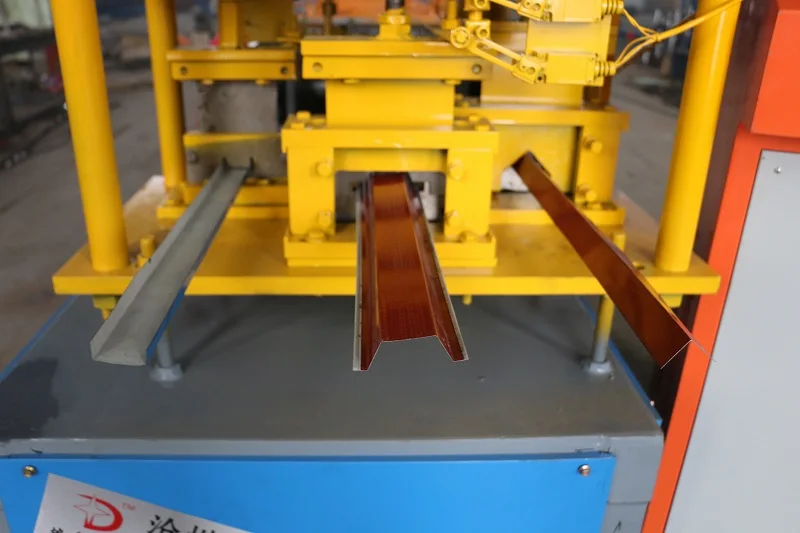

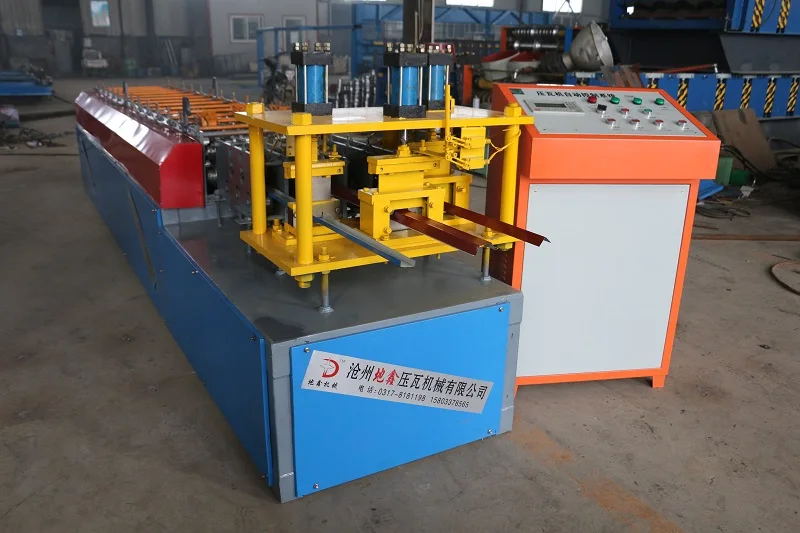

Detailed Images

We use the best quality raw materials, so you can trust our quality.Machines are not only economical in price, but also guaranteed in quality.


Technical parameters



specification for double line two profile light steel keel C U or Omega channel making machine
Coil Material typeColored Steel Plate, Galvanized Board, Aluminum Plate
width100---300mm (according to customer requirements and profile drawing)
thickness0.3-1mm
Manual Decoilerinside diameter450-508mm
coil load5T
Forming Deviceshaft material45#steel-high quality steel, diameter 50 mm
roller material45# steel with chrome coating
roller station12 (depends on final design)
Main frame


300 H steel

board thickness16mm
Cutting Systemcutting materialGcr12 with quench treatment
 hardnessHRC55-58
tolerance+-1.5mm
Weightaround 2.5T(depends on final design)
Dimension5000mm*800mm*1300mm(depends on final design)
Control SystemPLC
Total Power4+3kw (depends on final design)
Voltage380V, 50HZ, 3 phases or as your need
Productivity8--15m/min ordinary speed, 20--40m/min higher speed



Main product


Packaging & Shipping



1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.


Company Information

Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.


Our Services

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.


FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.



Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.



Q3. What’s your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.



Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.



Q5. How about the after-sale service?

A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.



Q6. If I am in Beijing,or Shanghai ,how to visit your company?

A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.




Product Tags: intermediate channel best price Steel Profile forming machine , ceiling section making machine use for Villa construction , omega roll forming machine steel frame villa
