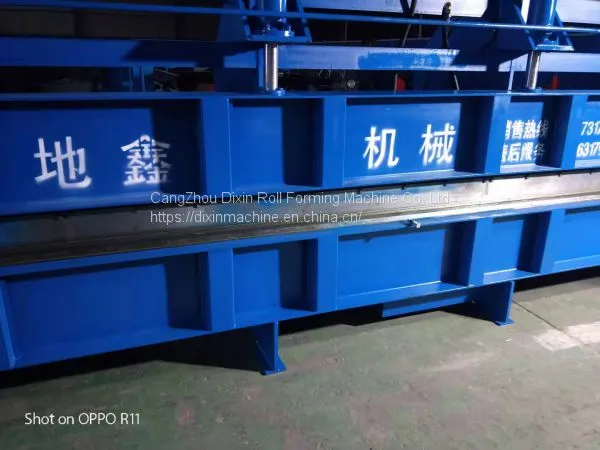

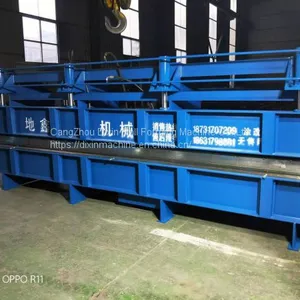

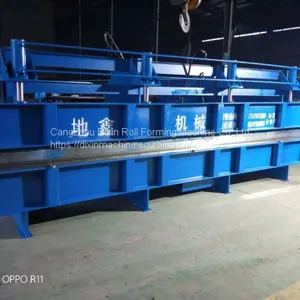

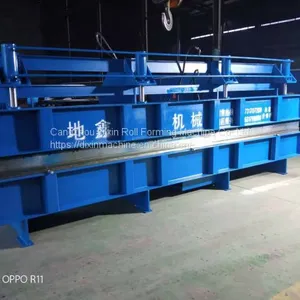

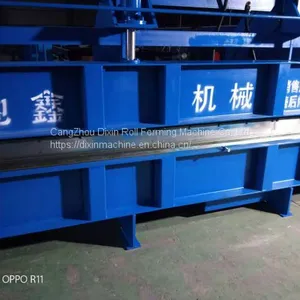

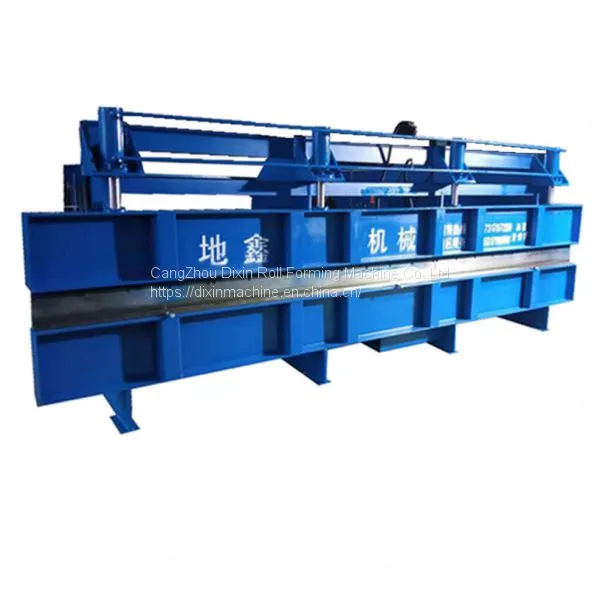

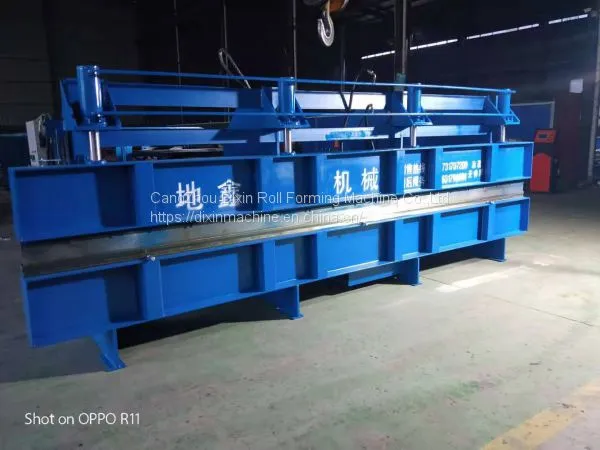

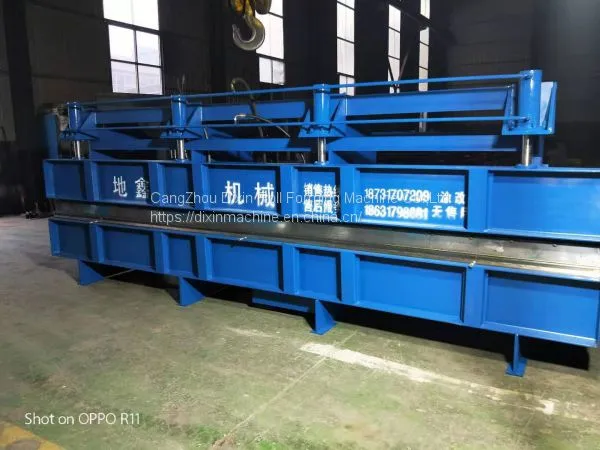

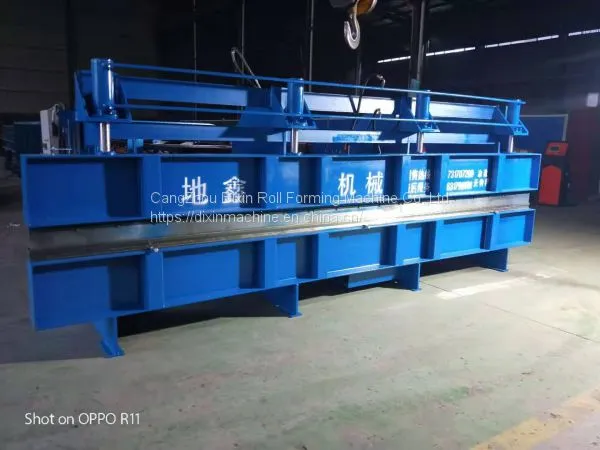

2019 Electric cutter manual sheet metal shearing machine with good quality
Techincal parameter
|
Type (QC11Y/K) |
Max.cutting thickness (mm) |
Max. cutting width (mm) |
Anti-strength of plate (N/mm²) |
Shearing angle (°) |
Max backgauge range (mm) |
Stroke times (min-1) |
Throat depth (mm) |
Blade length (mm) |
Main motor power (kw) |
L*W*H (mm) |
| 6*3200 | 6 | 3200 | 450 | 0.5-1.5 | 500 | 13~22 | 130 | 3300 | 7.5 | 3900*1520*2100 |
| 6*4000 | 6 | 4000 | 450 | 0.5-1.5 | 500 | 8~15 | 130 | 4100 | 7.5 | 4700*1770*2200 |
| 6*6000 | 6 | 6000 | 450 | 0.5-2 | 750 | 5~10 | 100 | 6100 | 11 | 6800*1900*2550 |
| 8*2500 | 8 | 2500 | 450 | 0.5-2 | 500 | 14~24 | 130 | 2600 | 7.5 | 3150*1580*2050 |
| 8*3200 | 8 | 3200 | 450 | 0.5-2 | 500 | 12~21 | 130 | 3300 | 7.5 | 3900*1700*2150 |
| 8*4000 | 8 | 4000 | 450 | 0.5-2 | 500 | 8~14 | 130 | 4100 | 11 | 4700*1840*2350 |
| 8*6000 | 8 | 6000 | 450 | 0.5-2 | 750 | 5~10 | 100 | 6100 | 11 | 6800*2100*2750 |
| 8*8000 | 8 | 8000 | 450 | 0.5-2 | 900 | 5~8 | 100 | 8080 | 18.5 | 8800*2400*3000 |
| 10*2500 | 10 | 2500 | 450 | 0.5-2 | 500 | 12~24 | 130 | 2600 | 11 | 3150*1670*2150 |
| 10*3200 | 10 | 3200 | 450 | 0.5-2 | 500 | 10~18 | 130 | 3300 | 11 | 3900*1730*2250 |
| 10*4000 | 10 | 4000 | 450 | 0.5-2 | 750 | 7~12 | 130 | 4100 | 18.5 | 4750*1900*2450 |
| 10*6000 | 10 | 6000 | 450 | 0.5-2 | 750 | 5~10 | 100 | 6100 | 18.5 | 6950*2200*2900 |
| 10*8000 | 10 | 8000 | 450 | 0.5-2 | 900 | 4~8 | 100 | 8080 | 30 | 8950*2500*3150 |
| 12*2500 | 12 | 2500 | 450 | 0.5-2.5 | 750 | 10~18 | 130 | 2600 | 18.5 | 3250*1800*2280 |
| 12*3200 | 12 | 3200 | 450 | 0.5-2.5 | 750 | 9~18 | 130 | 3300 | 18.5 | 3950*1870*2350 |
| 12*4000 | 12 | 4000 | 450 | 0.5-2.5 | 750 | 7~12 | 130 | 4100 | 18.5 | 4800*1970*2550 |
| 12*6000 | 12 | 6000 | 450 | 0.5-2.5 | 750 | 5~10 | 100 | 6100 | 30 | 7000*2250*3000 |
| 12*8000 | 12 | 8000 | 450 | 0.5-2.5 | 900 | 4~9 | 100 | 8080 | 37 | 9000*2500*3300 |
1. Free technical support and free accessories supply.
2. Engineer available to service machinery overseas.
3. One year warranty is provided.
4. Long life technical guidance for free.
5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
