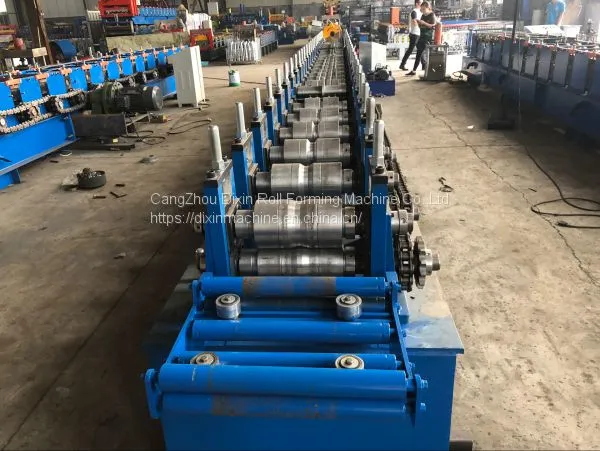

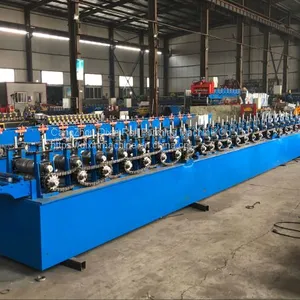

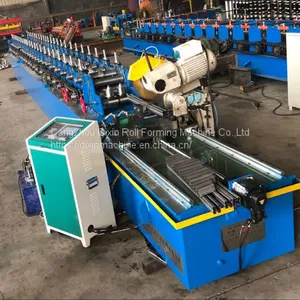

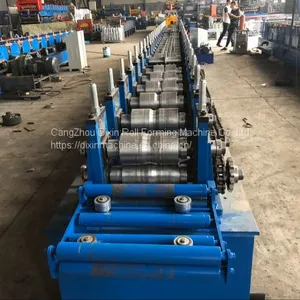

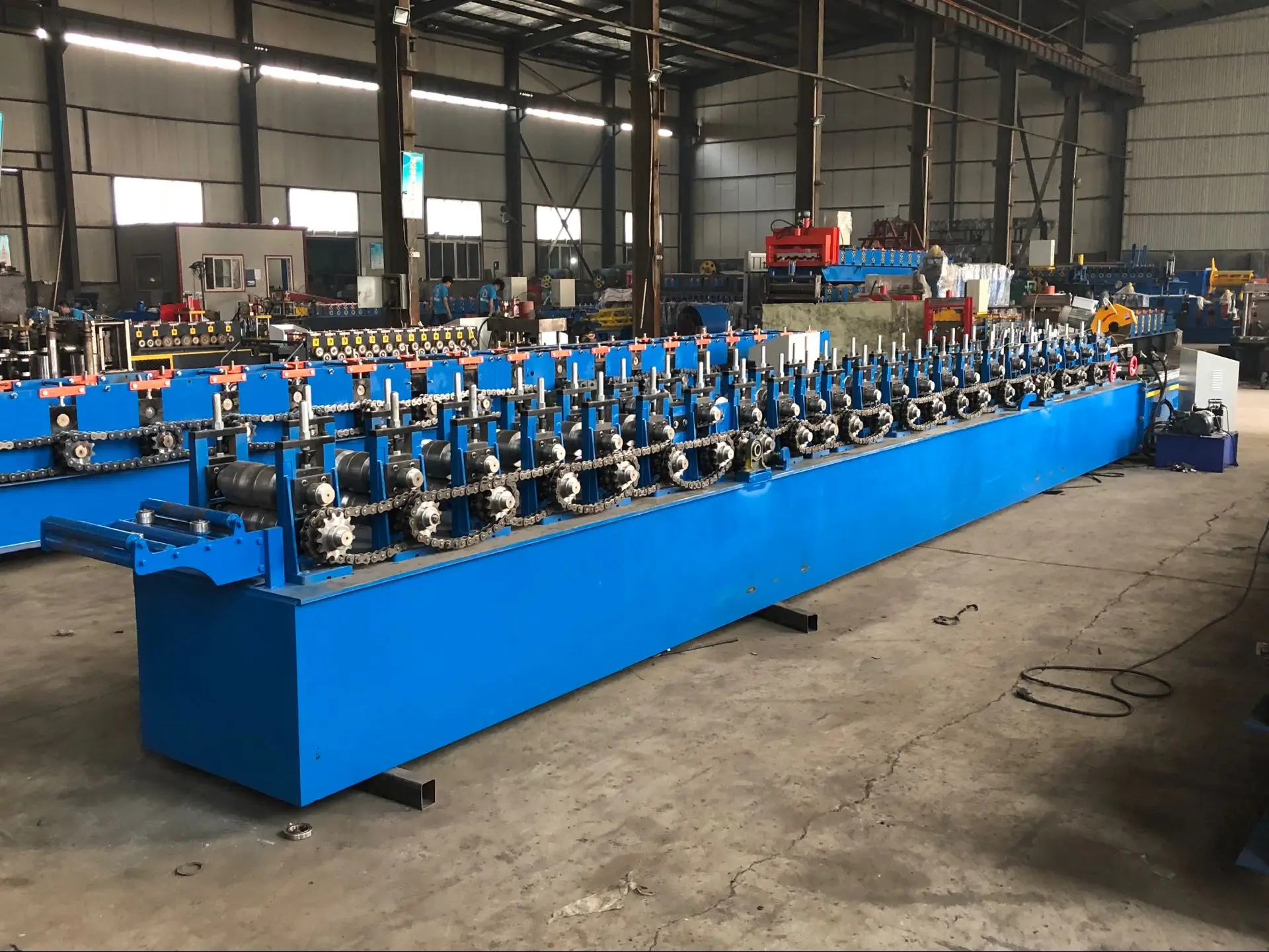

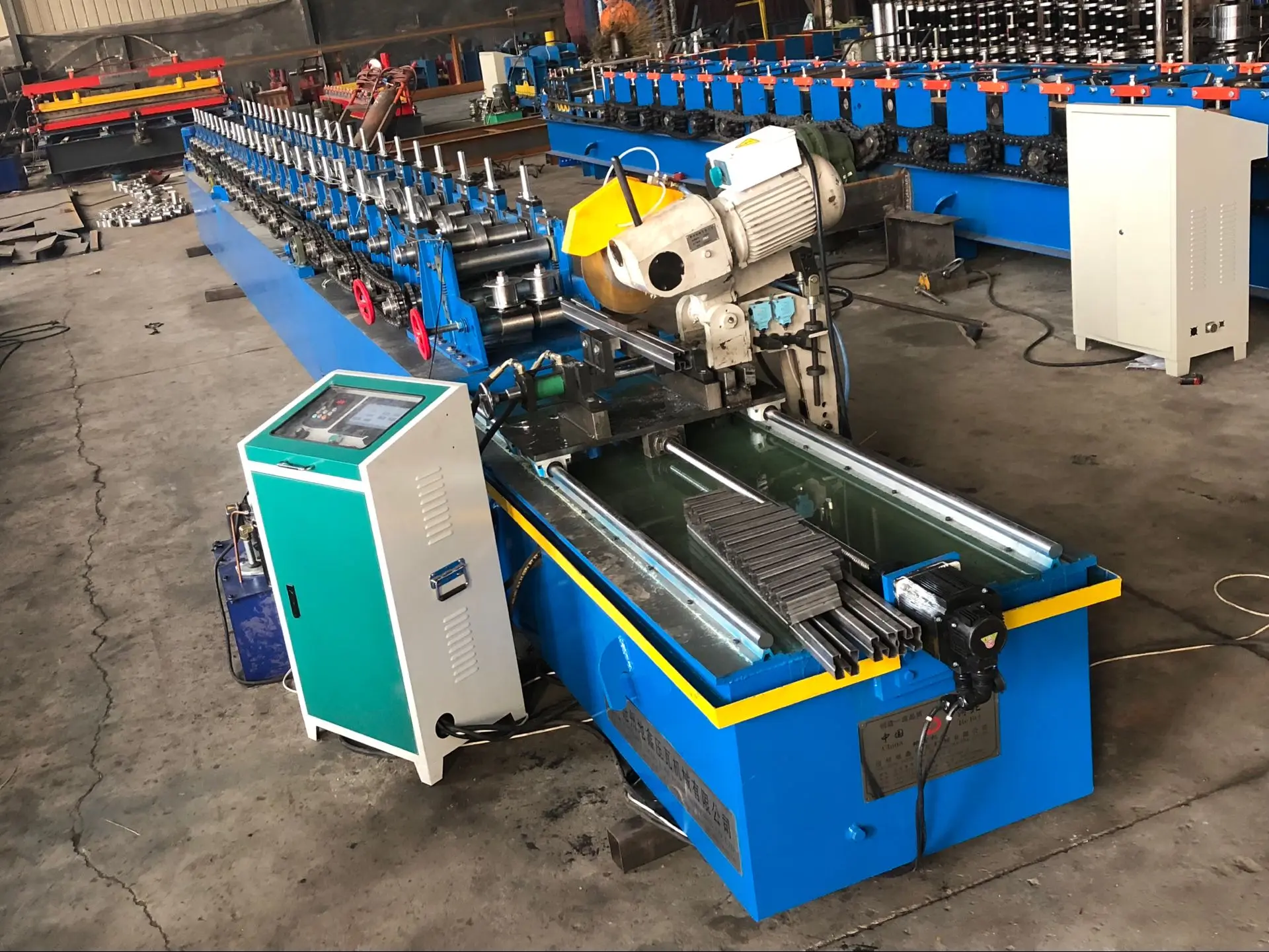

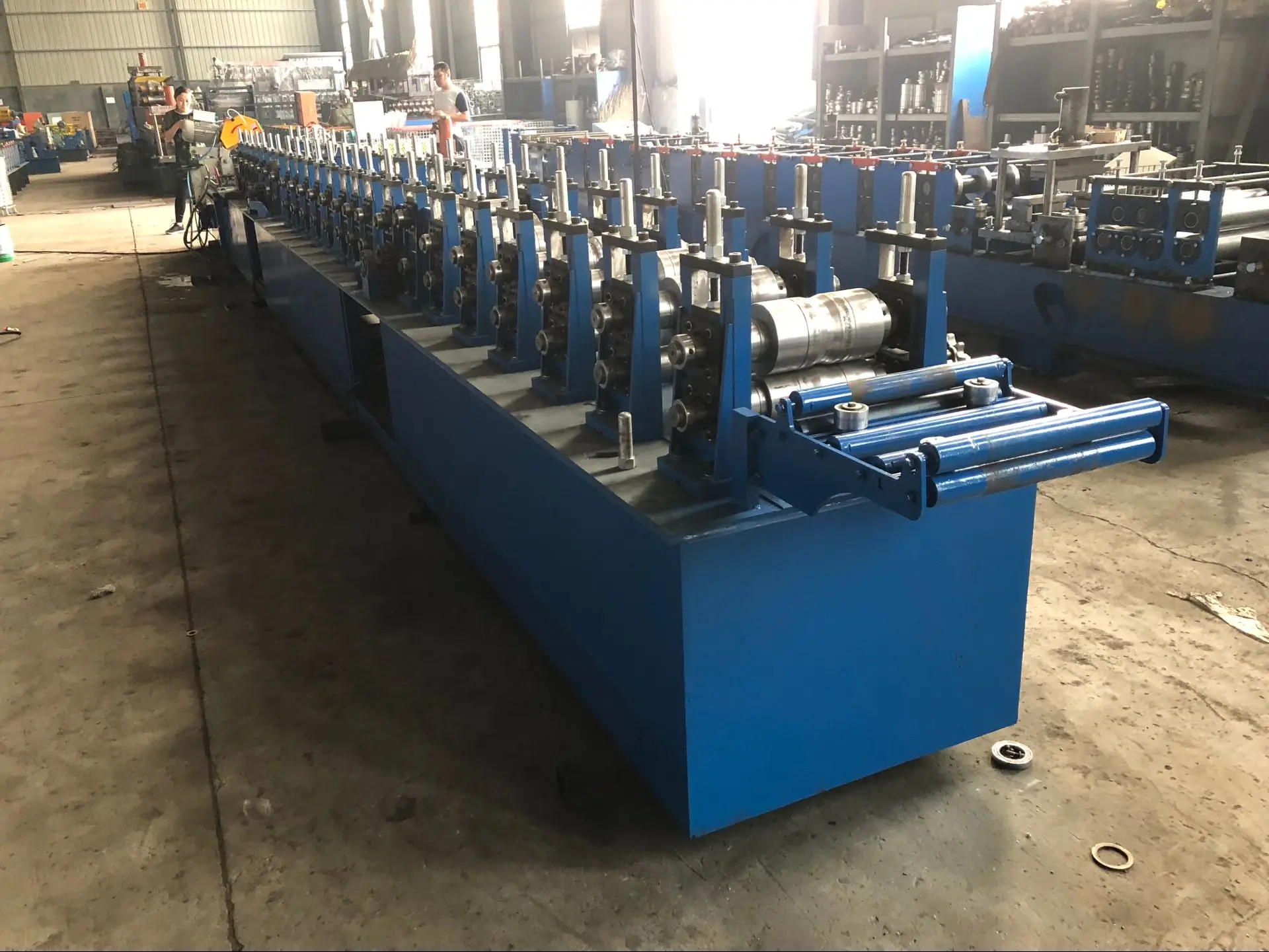

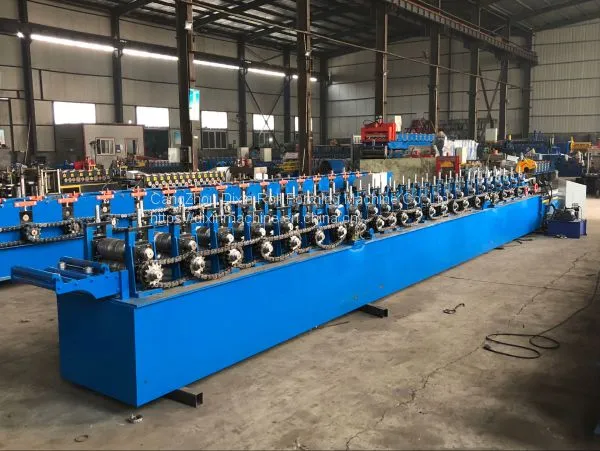

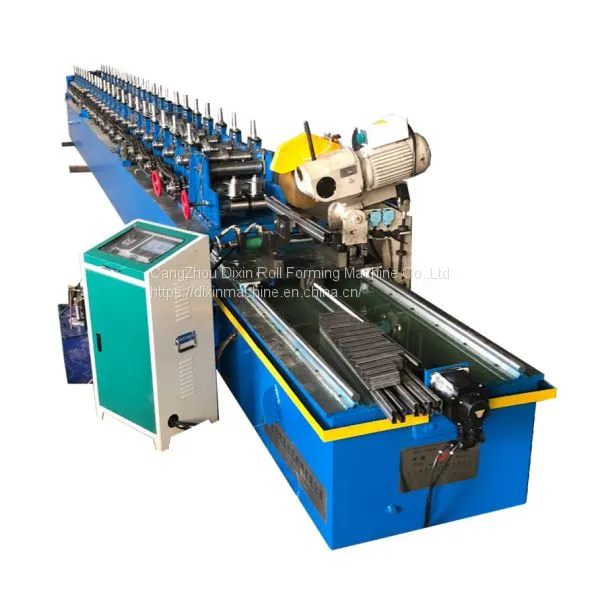

Metal furring keel channel slideway structure steel keel roll forming machine

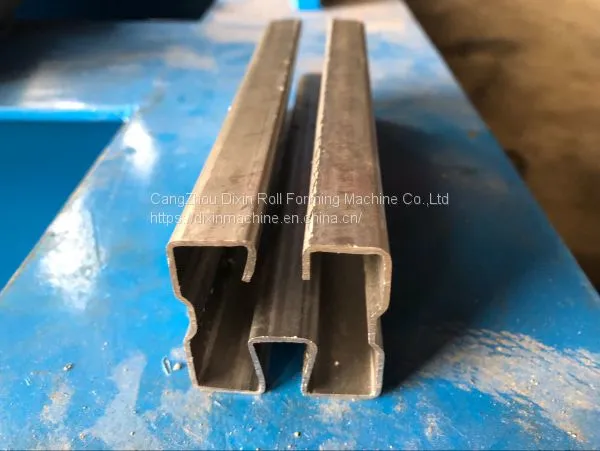

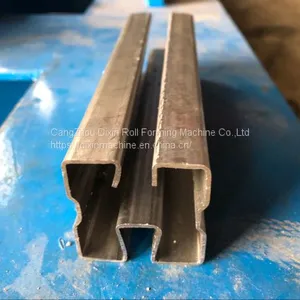

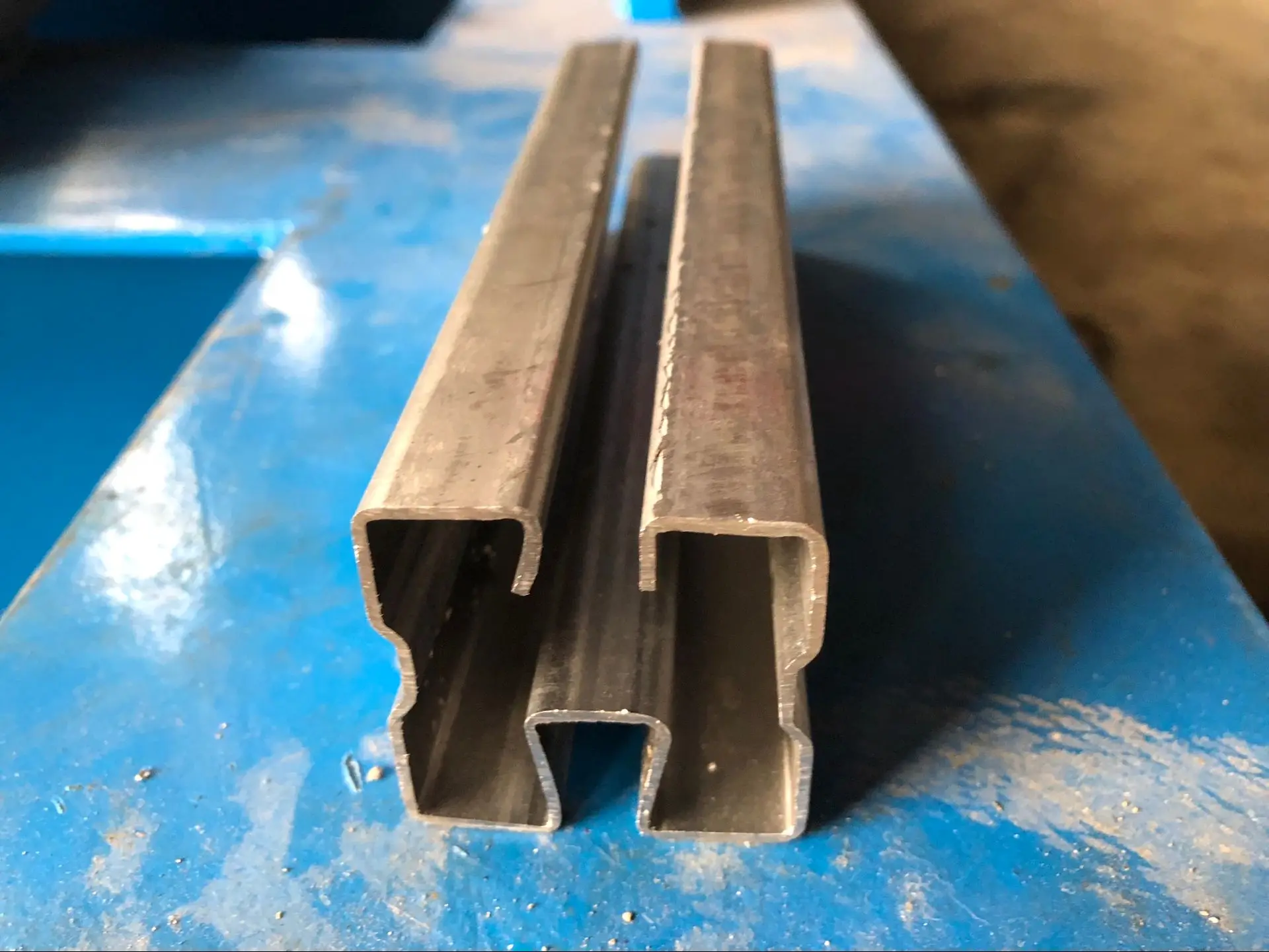

The application of guide rail in our daily life is also very common, such as sliding door slip, train tracks and so on are the specific application of guide rail.There is also the guide rail can be used for any machine or equipment with the need for sliding, such as the elevator guide rail, there is also sometimes used on the curtain it
Item NO |
Description |
Offered specification |
Roll Forming Machine |
Total four type
|
|
Rolling Speed |
45m/min |
|
Rolling Thickness |
0.3-1mm |
|
Control System |
PLC (Panasonic) as list in the note |
|
Un Coiler |
3 ton manual double head de-coiler |
|
Roller Stations |
15 stations |
|
Revising Station |
1 station( 3 rollers) |
|

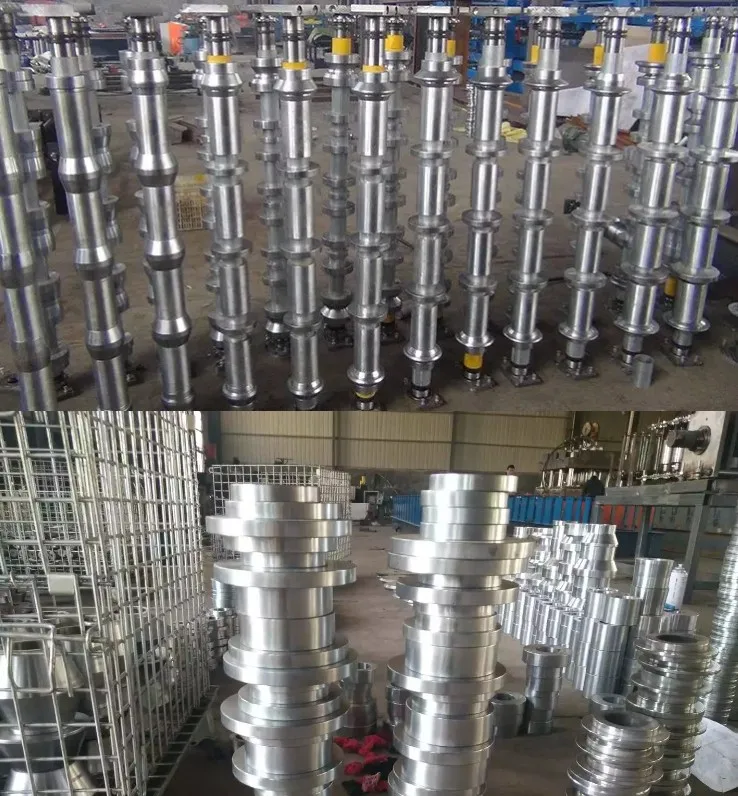

Roller Material |
GCR15 steel, coated with chrome |
|
Shaft Material and DIA |
65mm, material is 45# forge steel |
|
Maim Motor Power |
11kw |
|
Hydraulic Station Power |
7.5kw |
|
Hydraulic Pressure |
12Mpa |
|
Material Of Cutting |
Cr12Mov quenching 58-62℃ |
|
Cutting Way |
flying cutting |
|
Material Of The Stations |
Wall panel (16mm thickness) |
|
Tolerance |
6m+-2mm |
|
Electric Source |
380V, 50HZ,3 phase According to customer’s require
|
|
Color Of The Machine |
Yellow and blue |

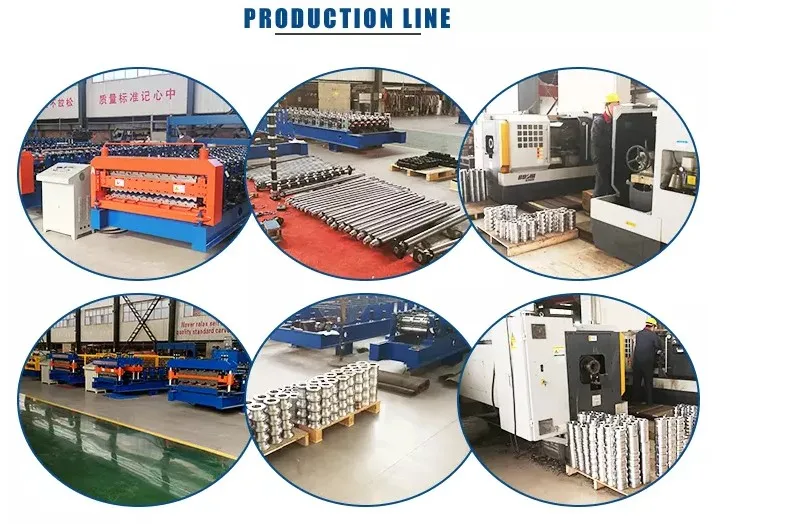

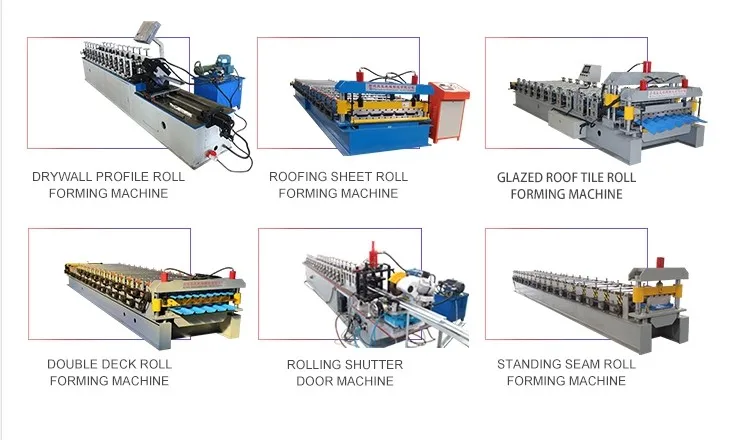

Cangzhou Dixin Roll Forming Machine Co.,Ltd,Our company is the professional and leading manufacture,can manufacture ,design,installation and debug various roll forming machines and metal processing sheet equipments ,which produce metal roof wall panel,glazed roof tile , CZ steel purlin,floor desking,roof ridge cap,sandwich panel ,roof rtruss,shutter panel,shutter slat,door frame, guardrail ,and metal sheet uncoiler ,bending ,slitting,cutting,flattening,punching,crimpingl. especially can design machine according to customer's request.

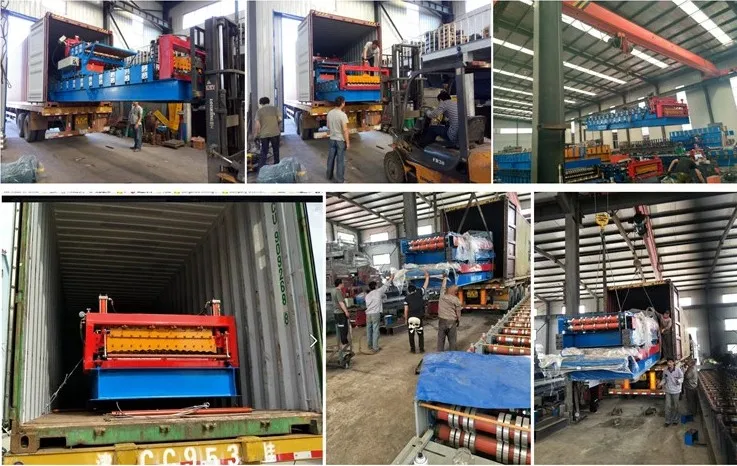

1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
2.Port:TIANJIN XINGANG PortLead .
3.Time: Shipped in 35 days after payment.
Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.
1.Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before
2.Warranty
12 months, and lifelong technical support service
3.Installation
If you need, we will send one technician to your factory to install & testing the
and local accommodation, and pay 90 USD/day for salary.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
Q5. How about the after-sale service?
A5: We provide 12 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,or Shanghai ,how to visit your company?
A6: 1)Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
2)Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
