H Profile Light Srteel Keel Automatic Steel Profile Sheet Roll Forming Machine

H Profile Light Srteel Keel Automatic Steel Profile Sheet Roll Forming Machine photo-1

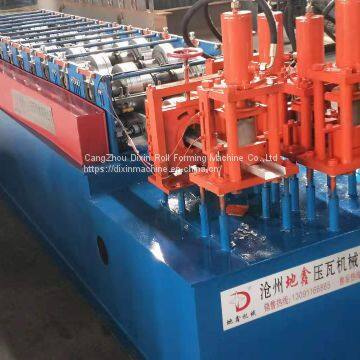

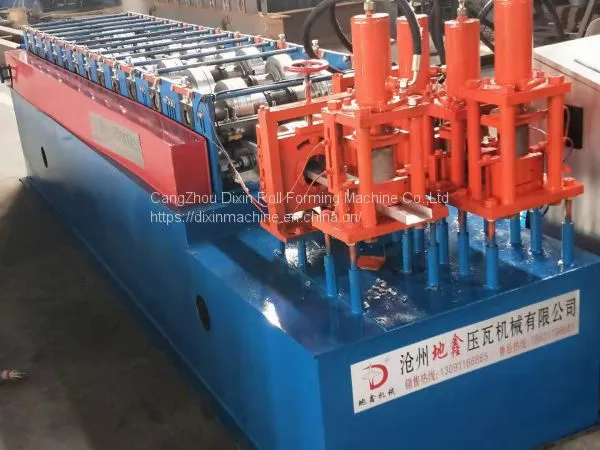

H Profile Light Srteel Keel Automatic Steel Profile Sheet Roll Forming Machine photo-2

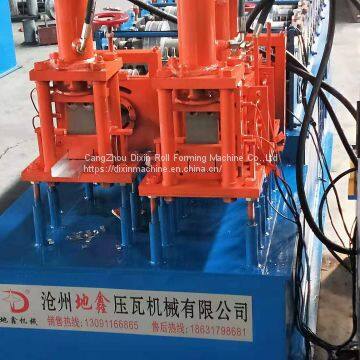

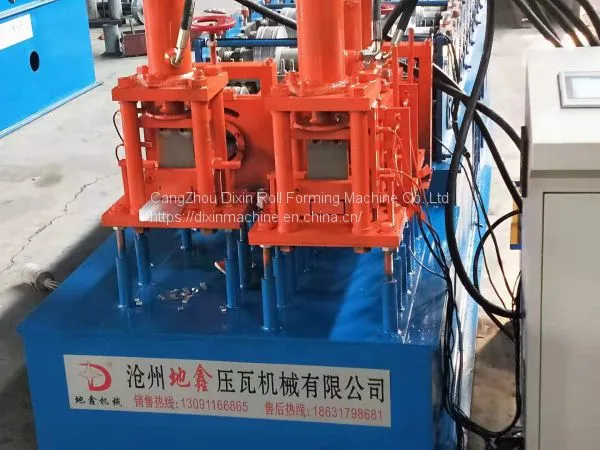

H Profile Light Srteel Keel Automatic Steel Profile Sheet Roll Forming Machine photo-3

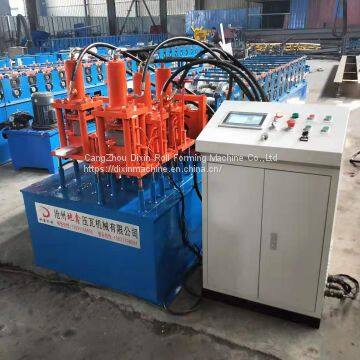

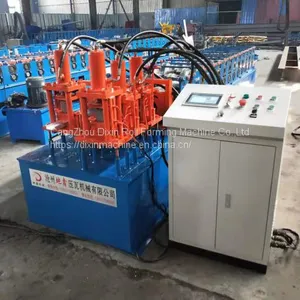

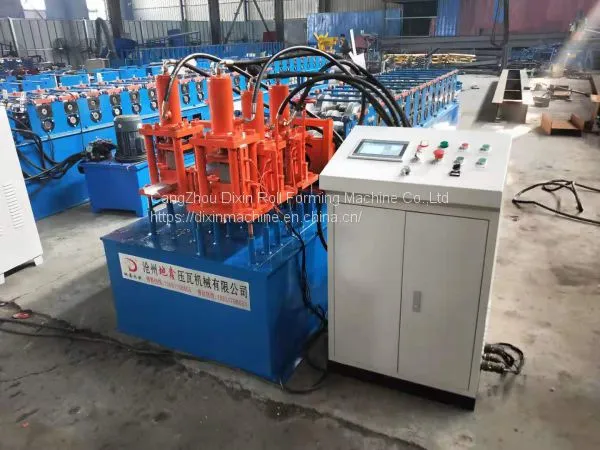

H Profile Light Srteel Keel Automatic Steel Profile Sheet Roll Forming Machine photo-4

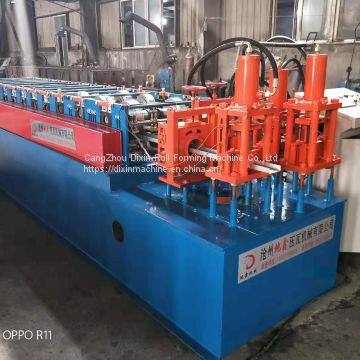

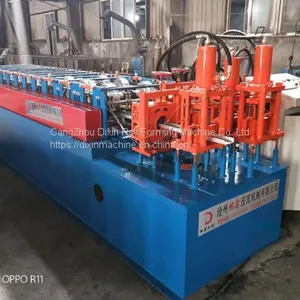

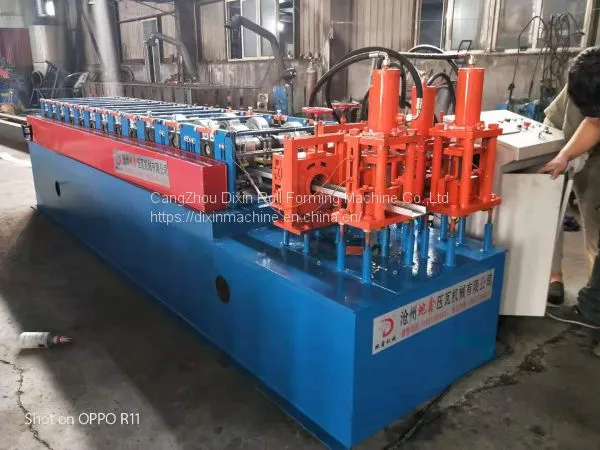

H Profile Light Srteel Keel Automatic Steel Profile Sheet Roll Forming Machine photo-5
US$ 7500 - 14500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Dixin
Place of Origin:
China
Model Number:
Customized
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Xingang
Delivery Detail:
25 days
Brand Name Dixin
Place of Origin China
Model Number Customized
Use Roof
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 2T
Dimension(L*W*H) 4500*1200*1000
Production Capacity 8-10M/MIN
Condition New
Voltage 380v
Power(W) 4kw
Type Tile Forming Machine
Tile Type Colored Steel

H profile light srteel keel automatic steel profile sheet roll forming machine

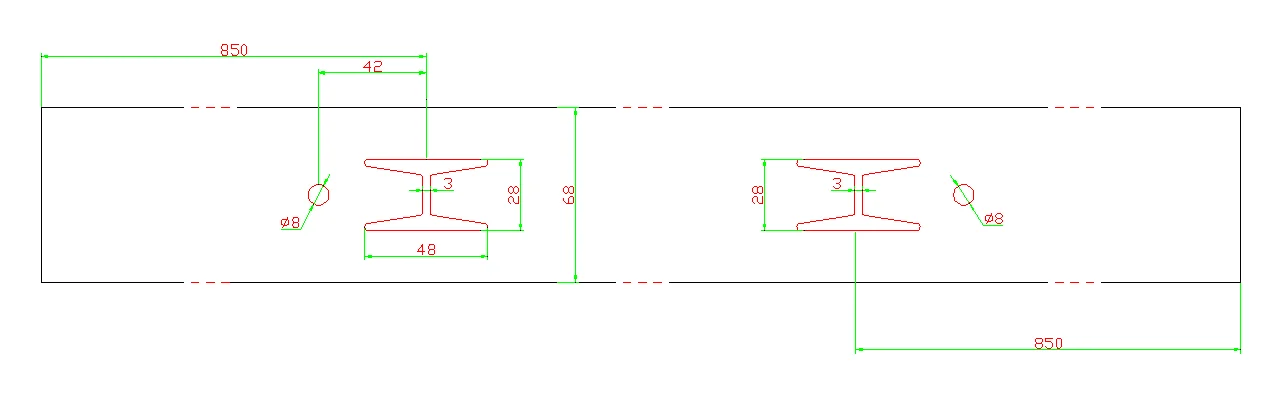

.jpg

Technical  parameter

1
Power
requirement
Type
380v/3ph/50hz


Main Motor power
3kw


Cutter power
5.5kw with 2.2 kw servo motor
2
Forming speed(m/min)
40-45m/min max
3
Forming stations
16stations
4
Material of rollers
CR12
5
Thickness of structure
30mm
6
Forming shaft diameter(mm)
60
7
GDrive
Gear box
8
Type of cutting
Hydraulic cutting
9
Control system
 PLC xinjie
10
Install dimension(depend on the final design)
4.8m×0.6m×1.2m
11
Total weight (Approx)
2.3T
12
Screen
Text screen /touch screen

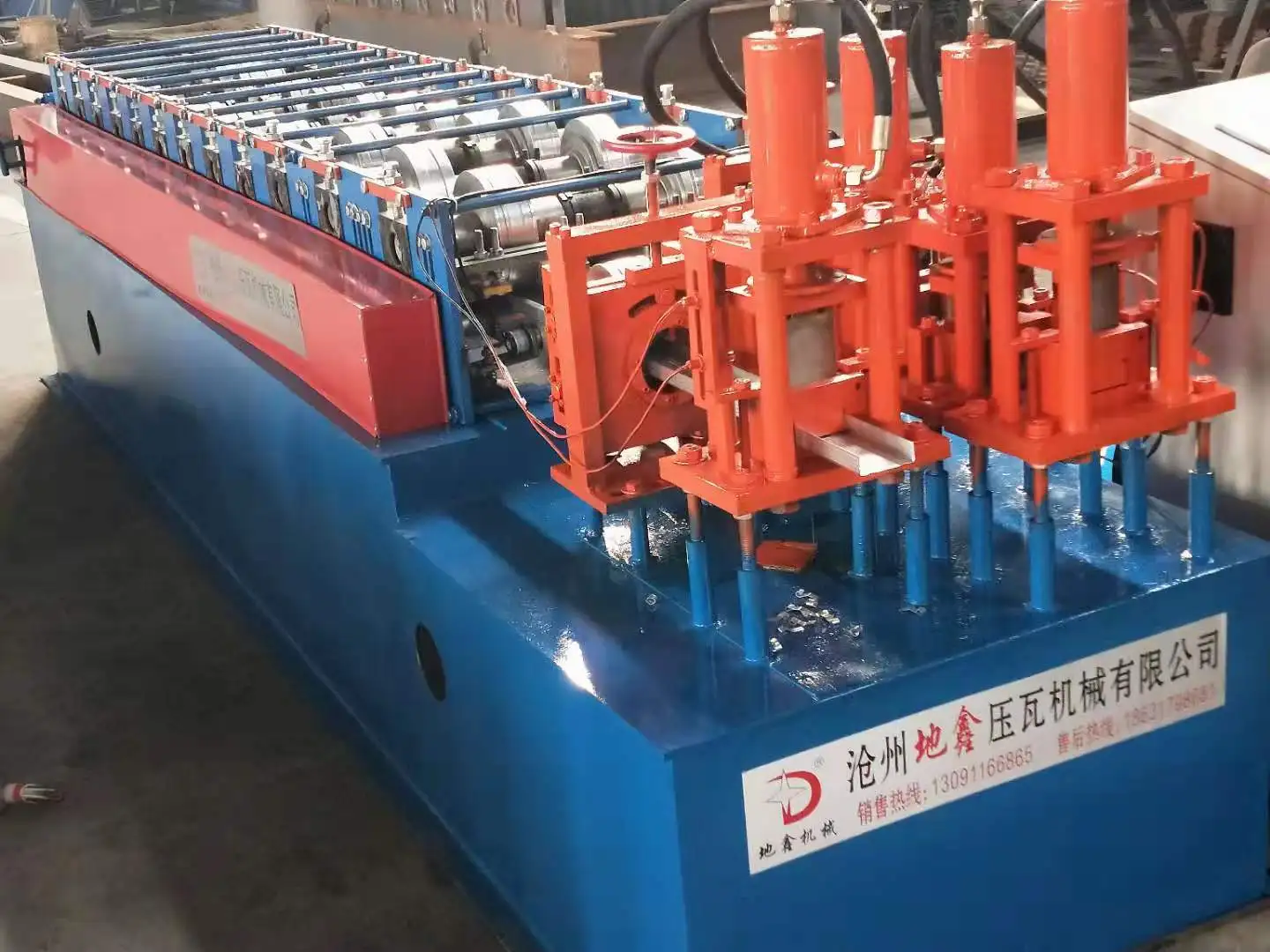

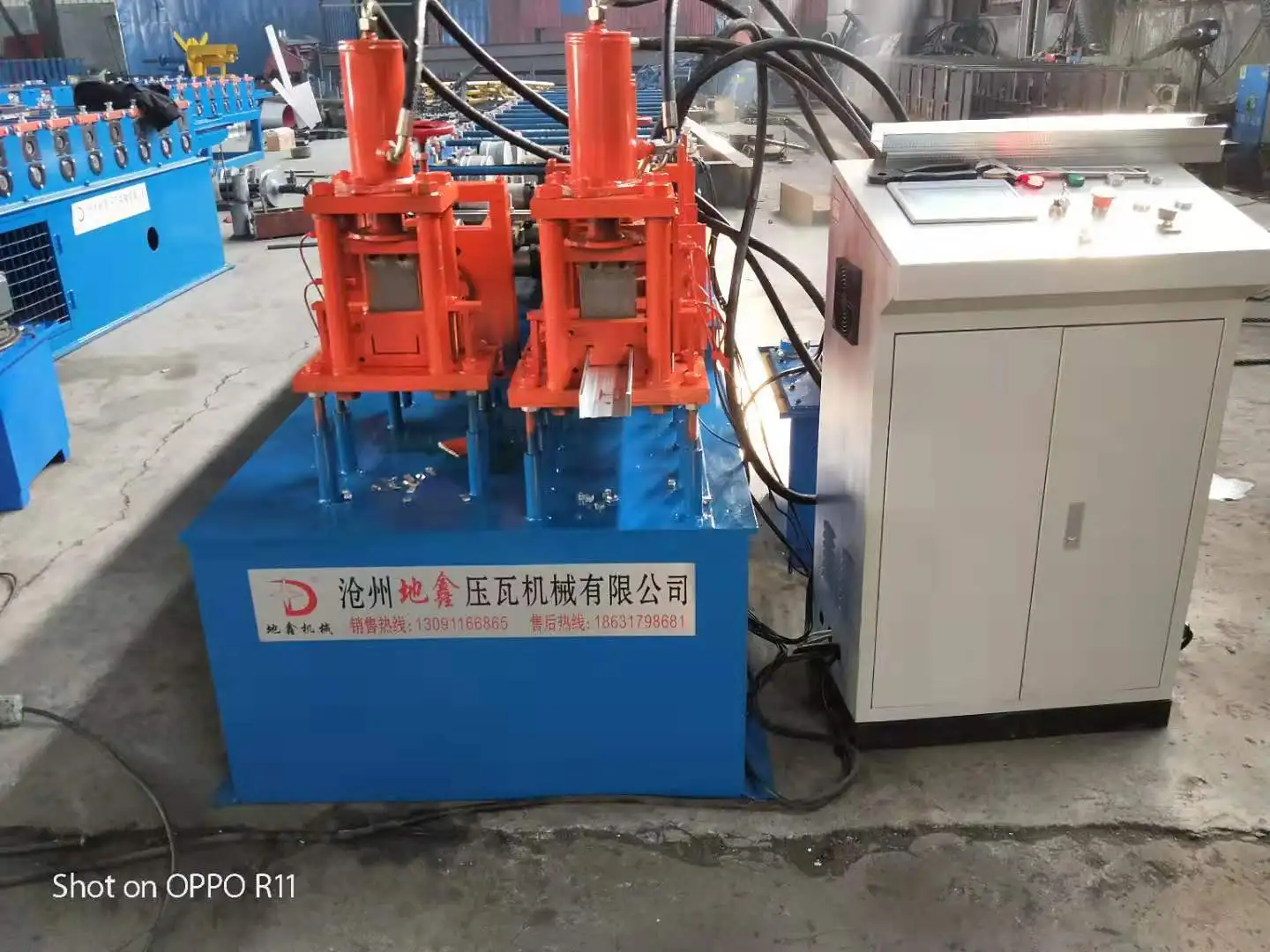

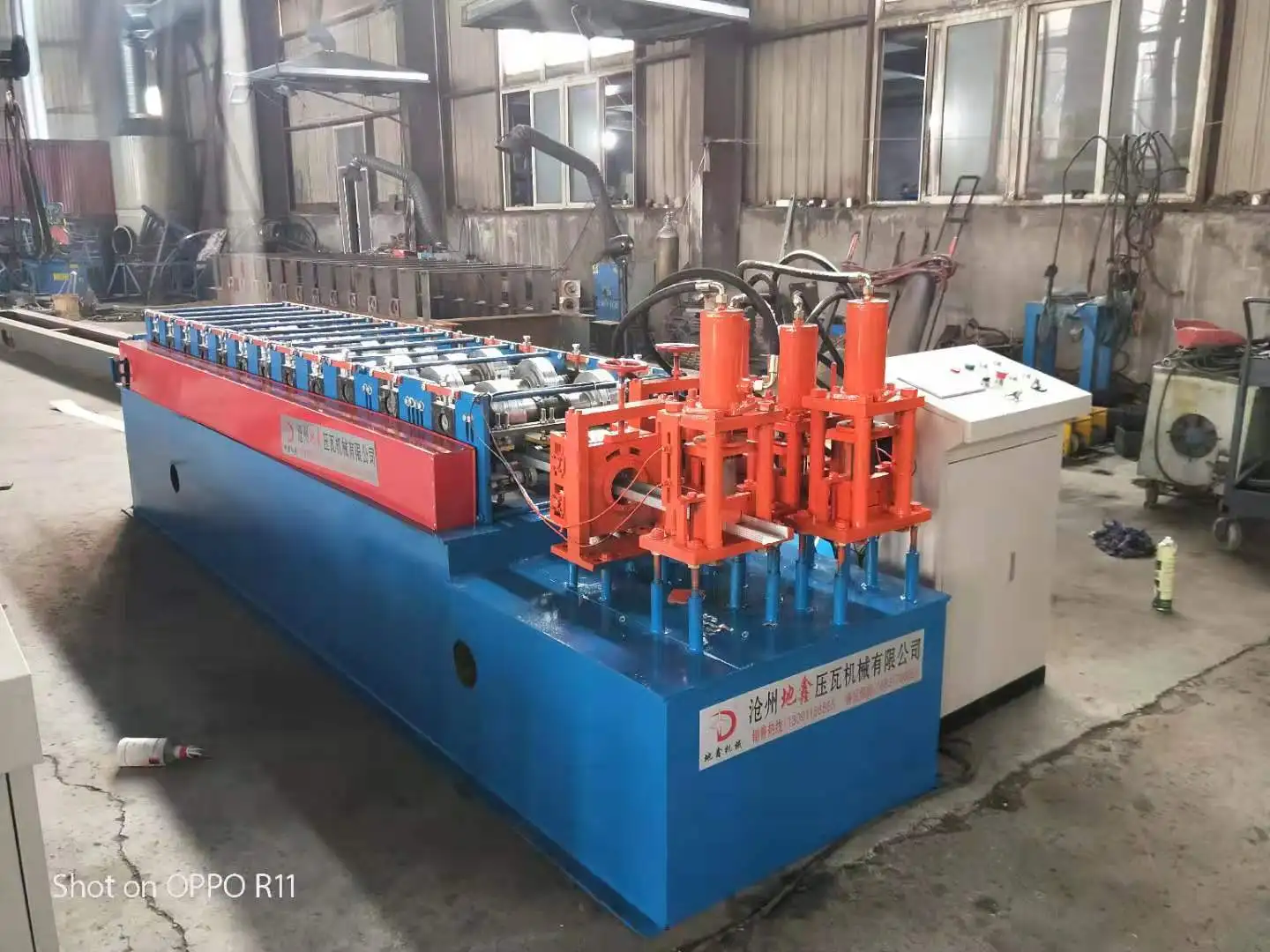

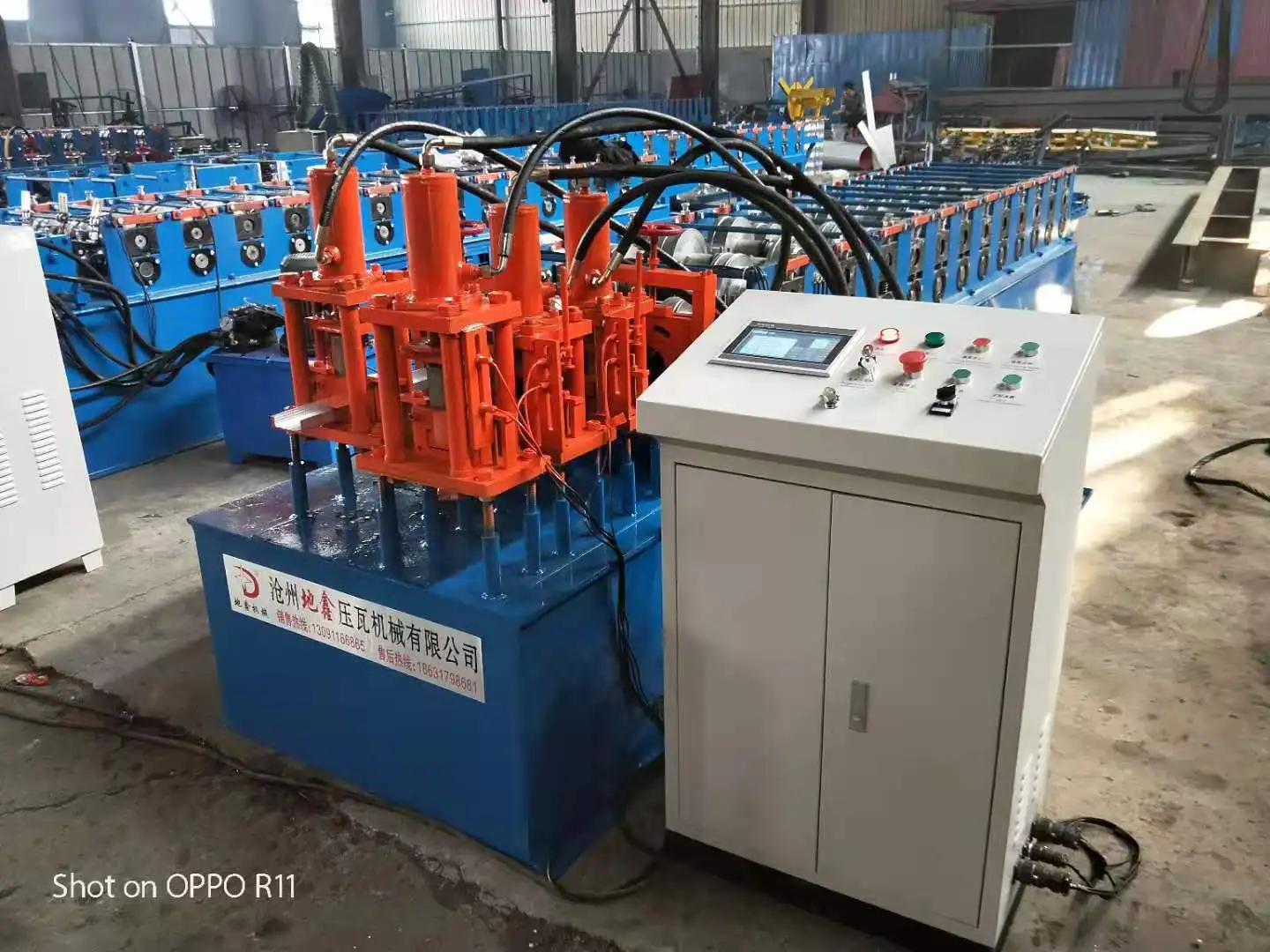

_2019092809102811.jpg_201909280910286.jpg_201909280910275.jpg_201909280910274 - .jpg

Product Description

We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.




Packaging & Shipping



1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

2.Port:TIANJIN XINGANG PortLead .

3.Time: Shipped in 35 days after payment.

Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

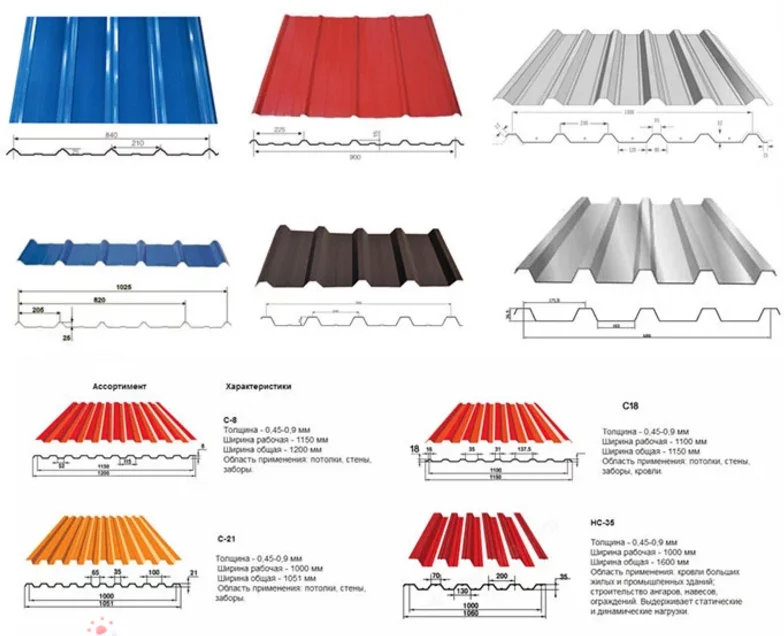

.png

Our Services

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.

.jpg

Maintain the machine

1. should be strictly in accordance with the requirements of the operating instructions to operate on the ban did not use machines or novice direct induction operation.
2. Each boot time to regularly check the adequacy of lubricating oil, check the oil if there is deterioration of the situation.
3. Color tile press equipment should be kept clean, regular color steel roll forming machine for dust protection.
4. Check the color steel tile press of a variety of connectors or fasteners are loose or dropped off, problems to deal with in a timely manner.
5. Regularly check the repair switch, insurance, handle, to ensure its reliable operation.
6. strict rules for safe working practices standard operating personnel, regular training basics of color steel tile press and prevent personal safety.
7. After you are finished using machinery to turn off the power and other facilities, there is electricity in the place you want to join the safety alert symbol.
8. A good waterproof security measures, strict rules regulate the behavior of the plant operator.product line.JPG



FQA

 1. what is your guarantee period?

Guaranteed against malfunctions due to manufacturing defects for 12 months from the date of loading.

machine in my factory?

2.How to visit our company:

A.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou West station  (1 hour),then we can pick up you.

B.Fly to Tianjin Airport: By high speed train From Tianjin West station to Cangzhou West station ,then we can pick up you.


Product Tags: Galvanized Drywall Used Omega Profile , auto steel keel with punching , Profile Light Gauge Steel Framing
