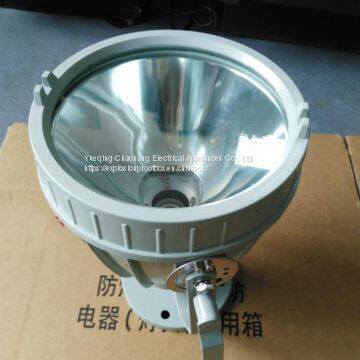

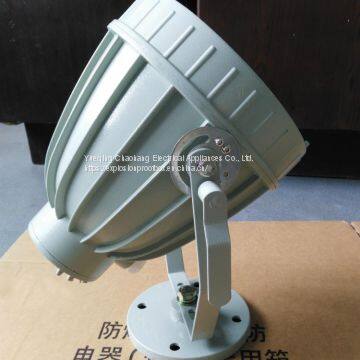

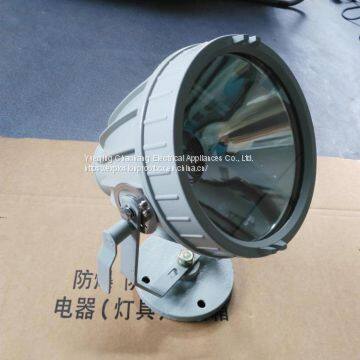

Split Explosion-proof Lamp Explosion Proof Spotlight BAT51-J1000W

Suitable for naval vessels, petroleum platforms, chemical industry zone 1, zone 2, class II A, class II B, class II C explosive gas environment.

* Explosion-proof signs: ExdIIBT3, ExdIICT3. The shell is made of aluminium alloy by die casting, and the surface is sprayed with plastic. The lamp body can rotate 360 horizontally, and the elevation angle can be adjusted within + 90 to - 60. It can be equipped with incandescent lamp, mercury, sodium, metal halide light source, with a maximum power of 1000W. The ballast is separated from the lamp and matched separately according to the type of light source. The light source is supplied by the user.

* When ordering, please specify the type of light source and power. Please specify when requiring II C.

Ocean King BAT51 Explosion-proof Spotlight Huarong Explosion-proof Spotlight BAT51-J400W BAT51-J1000W Product Characteristics:

* The shell is made of ZL102 aluminium alloy by die casting with high voltage electrostatic spraying.

* Toughened glass lampshade, stainless steel exposed fastener. The protective net cover is sprayed with plastic on the surface after galvanizing, which is double anti-corrosion.

* The lamp body can rotate 360 horizontally and the elevation angle can be adjusted within + 90 to - 60.

* The reflective cover is made of high purity aluminium and processed into a parabolic shape with high reflectivity.

* Focusing mechanism can be set for 250W power, which can realize far and near adjustment. Please specify if necessary.

* It has strong waterproof performance and can be used for lighting in places with higher protection requirements such as ships or oil platforms.

* Cable wiring G3/4.

Ocean King BAT51 Explosion-proof Spotlight Huarong Explosion-proof Spotlight BAT51-J400W BAT51-J1000W Technical Parameters:

Rated voltage: 220V/50HZ

Light source type:

1. Rated power of self-contained mercury lamp: 250/450

2. Rated power of high pressure sodium lamp: 175/250/400

3. Rated power of high pressure mercury lamp: 150/250/400

4. Metal halide lamp rated power: 175/250/400/1000

Explosion-proof sign: ExdIIBT3/*ExdeIICT3

Protection Level: IP55

Cable Outer Diameter (mm): 10-14

Inlet Thread (G): 3/4

Lamp holder code: E40

Quality (kg): 18/60 (1000W)
