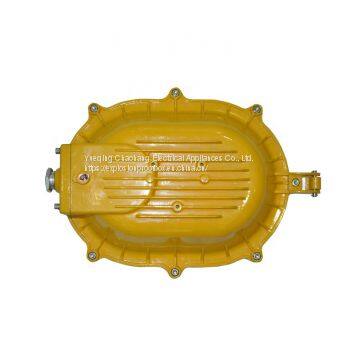

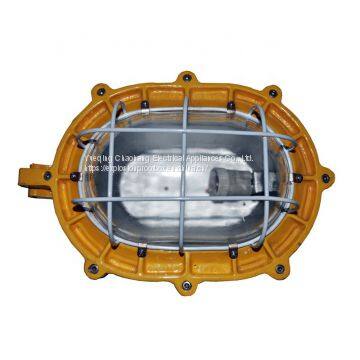

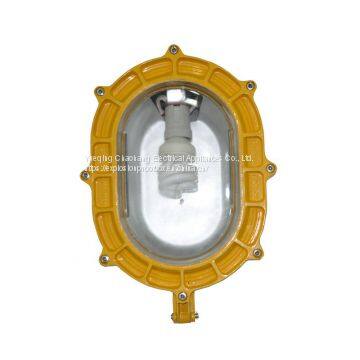

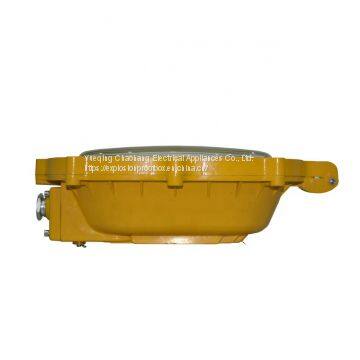

Explosion-proof Floodlight BFC 8120 Eight Thousand Seven Hundred and Twenty Platform Lighting Fixtures

I. Scope of application
Ocean King BFC81200 interior explosion-proof emergency lamp bulb suspender explosion-proof lamp 150W Osram Light Source Electrical Appliance Company in order to meet the needs of inflammable and explosive sites and related roads, indoor and outdoor operations and construction sites and other fixed lighting, can work safely in inflammable and explosive sites.
II. Performance characteristics
It meets the latest requirements of explosion-proof lamps and lanterns and can work safely and reliably in inflammable and explosive dangerous places.
Using high-efficiency and energy-saving LED as light source, it is green, environmentally friendly and has high light efficiency. Its life span can reach 100,000 hours.
The lamp body is made of light alloy material with high strength, strong corrosion resistance and good impact resistance.
Transparent parts adopt special tempered glass with high temperature resistance, which enlarges heat dissipation space, reduces temperature rise and improves lamp life.
The surface of lamps and lanterns adopts the latest spraying technology, which does not change color, rust, water-proof and rain-proof, and can also be used outdoors for a long time.
It is small in size and light in weight. It can be installed by suspender type, wall hanging type, ceiling suction type and lamp pole type. It is simple and convenient to operate.
Technical parameters
Rated voltage AC/DC85-260V 50Hz
ExdIIBT4/T6
Light source type LED
Rated power 30W
Power factor greater than 0.9
Protection Level IP65
Corrosion grade WF2
Insulation Class I
Inlet threads and cable dimensions G3/4", 8~_10 mm
Average service life 100,000 hours
Shape size 376x267x110
Weight 4.5KG
Explosion-proof signs:
Rated voltage: ~220V/50Hz
Rated power: 40W
Light source type: LED
Insulation Grade: I
Corrosion grade: WF2
Shell protection level: IP65
Inlet threads:
Introduce cable:
Profile size (mm): (lamps)
Total weight: (lamps) 4.5kg
IV. Usage
1. Confirm the installation location of lamps and ballast box, select the appropriate installation method, and prepare the special three-core cable of corresponding length.
2. After fixing the lamp and ballast box with screw, screw out the side cover screw with M6 inner hexagonal wrench, remove the side cover and introduce one end of the prepared three-core cable through flameproof joint into the wiring cavity for wiring; connect to the corresponding position of the wiring seat, yellow wire to the ground line; tighten the side cover screw after wiring. Then tighten the flameproof joint and cable compression screw.
3. One end of the three-core cable connected to the power supply is connected to the terminal marked by the terminal pole in the ballast box through the introduction device of the ballast box input port.
4. Connect one end of the cable connecting the power supply to the input terminal of the ballast through the introduction device of the ballast input port. Then close and tighten the screw of the tail cover of the ballast box. When the other end of the cable is connected to 220V power supply according to the explosion-proof requirements, it can illuminate.
V. Quality Assurance
Ocean King BFC81200 interior explosion-proof emergency lamp bulb suspender explosion-proof lamp 150W OSRAM Light Source Electrical Company has passed the ISO 9001:2008 international quality system audit certification, this product strictly implements ISO 9001 international quality management system standard production, to ensure that product quality fully meets the national standards and design requirements, product implementation for seven years guarantee.( The light source is guaranteed for one year. The company is responsible for free maintenance of any malfunction occurring in the normal use of the product within 7 years from the date of purchase.
