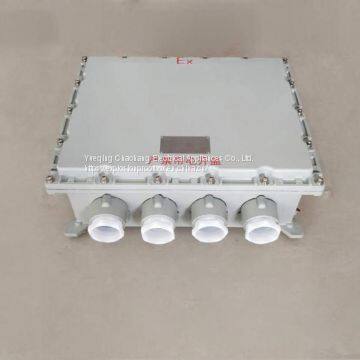

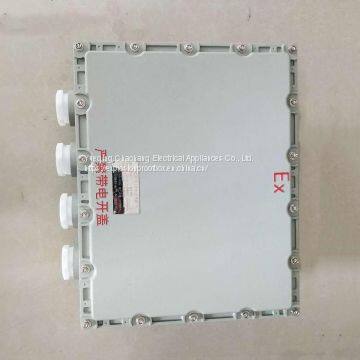

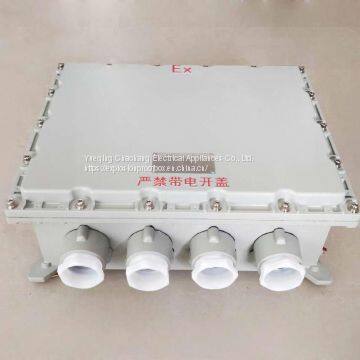

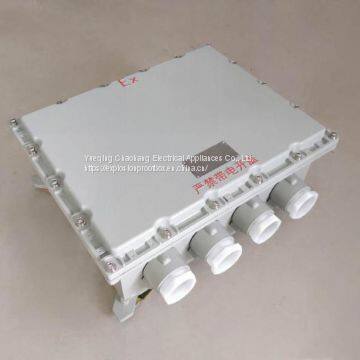

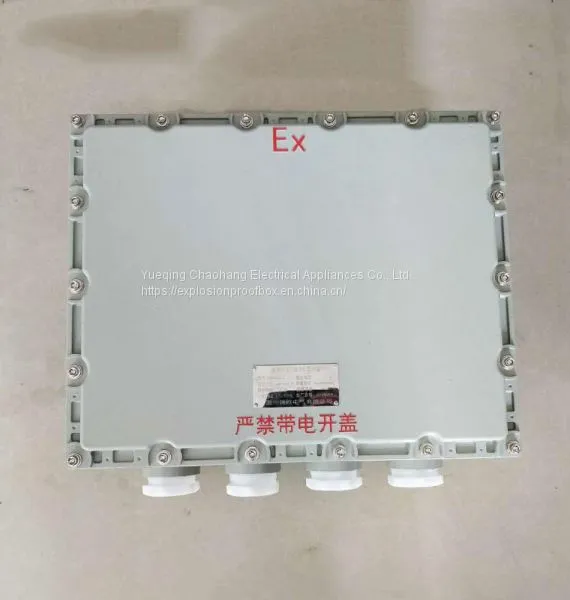

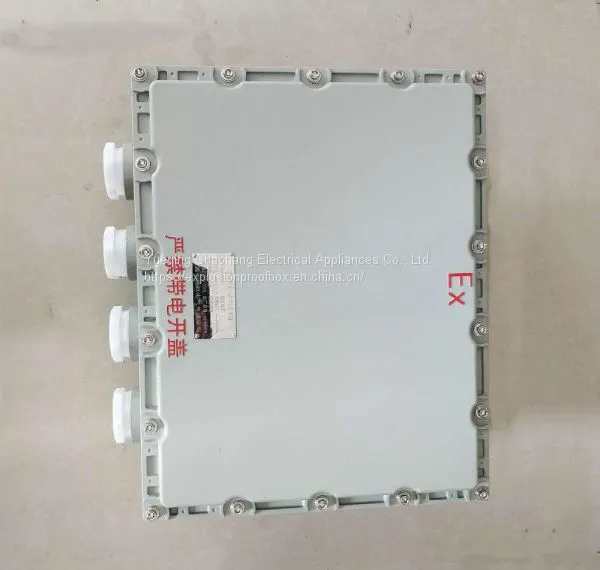

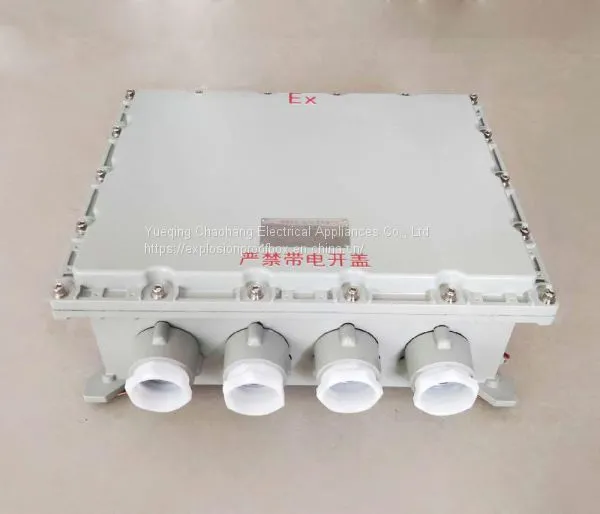

ABXJ51 Site Explosion-proof Junction Box 400*500*200 Explosion-proof UK Terminal Explosion-proof Distribution Box

Can be customized

Application scope of explosion-proof junction box

1. Suitable for explosive gas environment zone 1 and zone 2;

2. Suitable for Ⅱ grade A and B Ⅱ explosive gas environment;

3. Suitable for temperature groups T1~T6;

4. Suitable for oil mining, storage, chemical industry, medical treatment, military and military facilities and other explosive dangerous environment;

5. The products are mainly used for wiring or transition cables;

6. Various types of terminals can be installed.

Features of explosion-proof junction box

1. The shell is die-cast aluminum alloy, and its surface is treated by high-pressure electrostatic powder spraying;

2. The shell can be made of stainless steel according to user requirements;

3. Special terminals are used for wiring, which is convenient, firm and reliable;

4. The direction of inlet and outlet can be determined according to user requirements, and BDM series cable clamping sealing joints can be directly assembled according to user requirements;

5. The inlet and outlet port G1 "is normally equipped with engineering plastic clamping nut, G1" and above are equipped with aluminum special clamping device, please indicate if the user has special requirements;

6. The standard of the inlet and outlet of the junction box is inch pipe thread, or the metric thread or NPT thread can be processed according to the user's requirements, please indicate when ordering;

7. Steel pipe and cable wiring.

Technical parameters of explosion-proof junction box

1. Execution standards: GB 3836.1, GB 3836.2, GB 3836.3, GB 12476.1, IEC60079

2. Explosion-proof marks: Exd Ⅱ BT6 and Exd Ⅱ CT6, Exe Ⅱ T6, DIP A20 TA and T6

3. Protection grade: IP54, IP65, IP65, IP65

4. Rated voltage: AC 220V/380V

5. Rated current: 20A

6. Corrosion grade: WF1

7. Specification of introduction port: g1/2 ~ G2"

8. Applicable cable diameter: 9 mm ~ 28 mm
