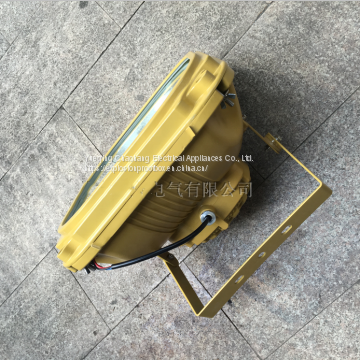

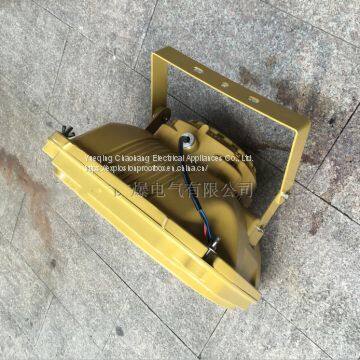

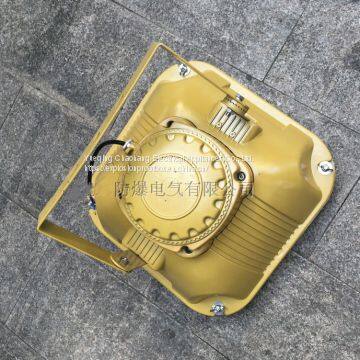

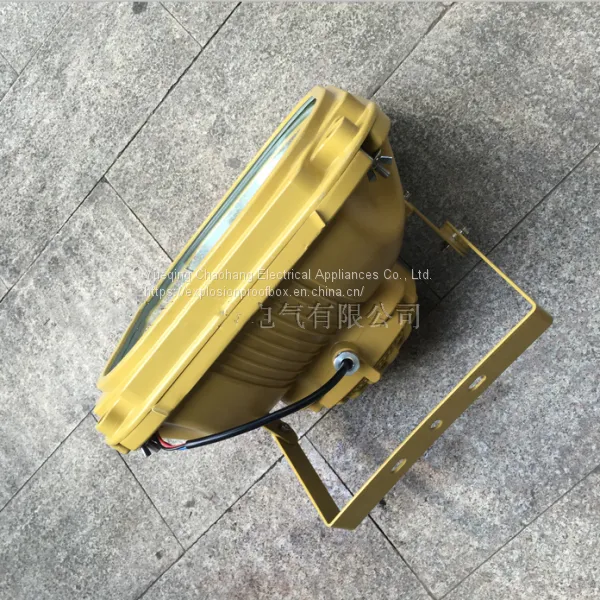

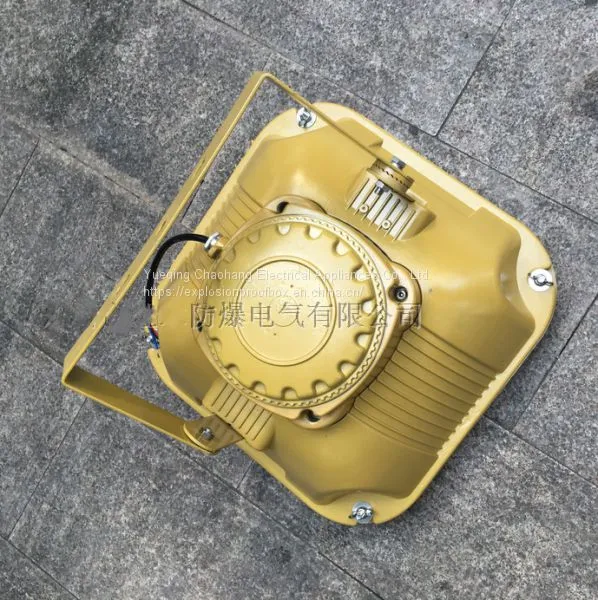

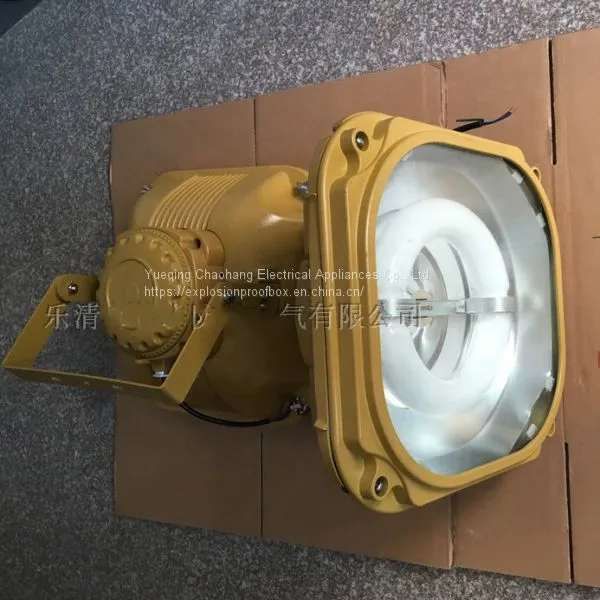

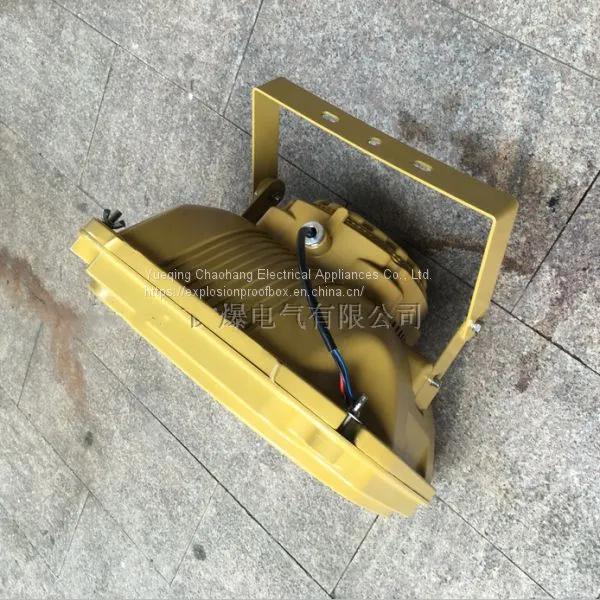

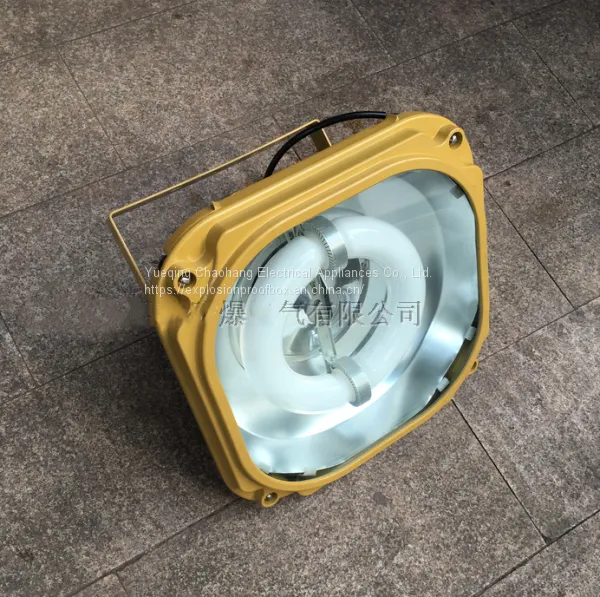

Square Explosion-proof Electrodeless Lamp Maintenance-free Energy-saving Electromagnetic Induction Lamp

First, product characteristics:
1. Explosion-proof flame-proof type, suitable for lighting in dangerous places.
2. Integral structure of lamps and lanterns. The light source cavity and the electrical cavity are connected together. The electrical box is placed in the electrical cavity. It is easy to install and reliable in electrical performance.
3. The exterior of lamps and lanterns is moulded by die casting, which is novel in shape and elegant in appearance.
4. Castings are made of high tensile strength aluminium alloy with low copper content (less than 40%) and good corrosion resistance.
5. The net cover and the exposed fasteners are made of high quality stainless steel.
6. Tempering treatment of glass cover.
7. Various installation modes of pipe crane, suction top, suction wall and vertical pole are suitable for installation in various occasions.
8. Epoxy resin is sprayed on the shell of lamps and lanterns.
9. The light source uses electromagnetic induction lamp, which has high power factor, high light efficiency, wide application range and long-term maintenance-free use.
2. Characteristics of electromagnetic induction lamps:
1. Electromagnetic induction lamp has no electrodes and wires. It has a long life. It is maintenance-free. Its life is 100 times longer than that of incandescent lamp and 10 times longer than that of metal halide lamp.
2. High efficiency and energy saving, luminous efficiency 65LM/W, power factor as high as 0.89, 80% energy saving than incandescent lamp.
3. Good stability, in the voltage fluctuation range of 180-250V to recognize the normal start-up stable work.
4. Green environmental protection, through the national EMC test, electromagnetic pollution, no stroboscopic eye fatigue.
5. Instantaneous start-up, start-up and restart without delay, instantaneous light.
Scope of application:
Applicable to IIA, IIB gas containing environment 1 and 2 to indoor and outdoor dangerous places lighting.
Suitable for A, B, C environment containing explosive gas or steam.
Temperature group is general lighting or emergency lighting for 1 or 2 dangerous indoor and outdoor places or 20 or 22 explosive or combustible dust indoor and outdoor places in T1-T4.
Technical parameters:
1. Implement GB3835.1 and GB3836.2 Electrical Equipment for Sexual Gas Environment
2. Explosion-proof sign: Exed II CT3 DIP A20 TA T3
3. Shell Protection Level: IP65
4. Antiseptic grade; WF2
5. Applicable Light Source: 200W Electromagnetic Induction Lamp
6. Rated operating voltage: 220V, 50HZ
7. Inlet: G3/4"
8. Cable Outer Diameter: 9-10.5mm
5. Instructions for ordering:
If 200W low frequency electrodeless lamp source is needed and wall mounted, the model is SBD1130-YQL200C.
