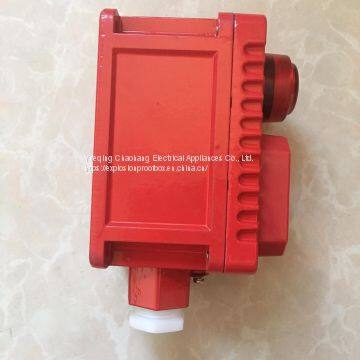

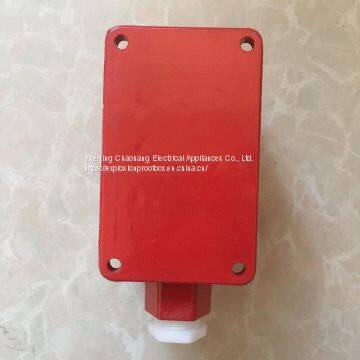

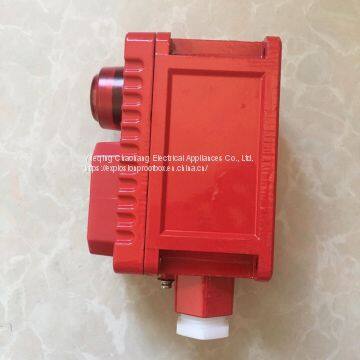

Explosion Control Fire Button BXN Hydrant With Light Alarm Button One Light LA53 Emergency Stop Button

Scope of application:

Hazardous gas sites in zone 1.1 and zone 2;

2. A and B Ⅱ Ⅱ, Ⅱ C T1 - T6 group explosive gas or steam environment;

3. Fire alarm place is needed;

4. Indoor and outdoor (IP54, IP65*).

Product features:

1. The shell is made of aluminum alloy by high-pressure casting, and the surface is sprayed with electrostatic powder after shot blasting;

2. Built-in combination switch, stable and reliable performance;

3. Specially designed waterproof and dustproof liner with good waterproof and dustproof performance;

4. It is waterproof and dustproof.

5. Steel pipe or cable wiring

Technical parameters:

1. Implementation standards: GB 3836.1, GB 3836.2, GB 3836.3 and IEC 60079

2. Explosion-proof marks: Exed Ⅱ BT6, Exed Ⅱ CT6

3. Rated voltage: AC 220V/380V

4. Rated current: 10A

5. Use category: ac-14, dc-13

6. Protection grade: IP65

7. Corrosion grade: WF1
