Home > Products > Explosion-proof electrical appliances > HRD9 Maintenance-free Explosion-proof LED Road Lamp High efficiency Explosion-proof street lamp pole

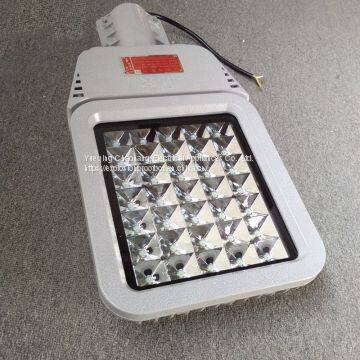

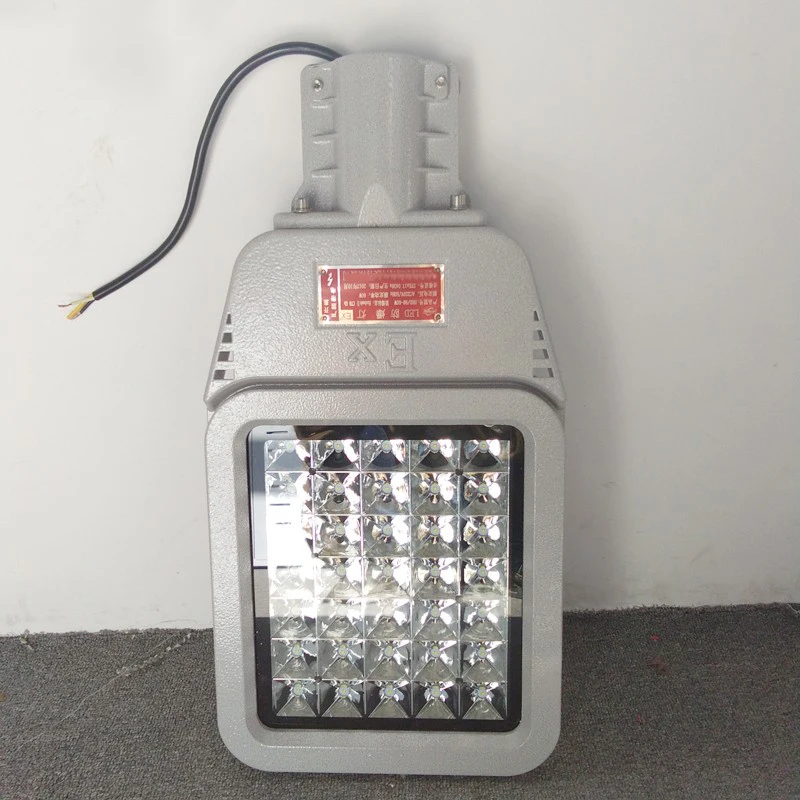

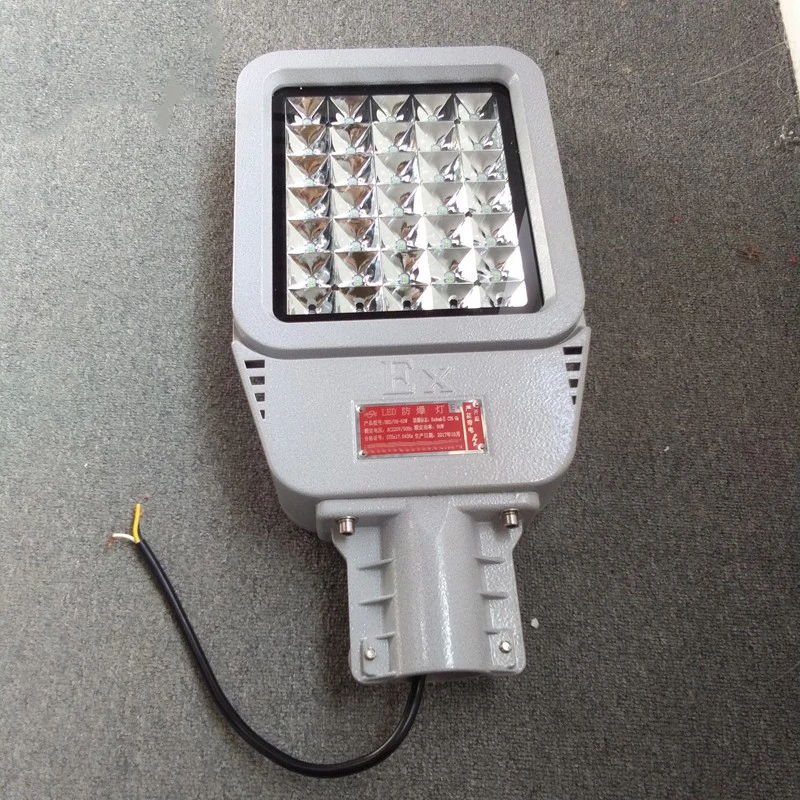

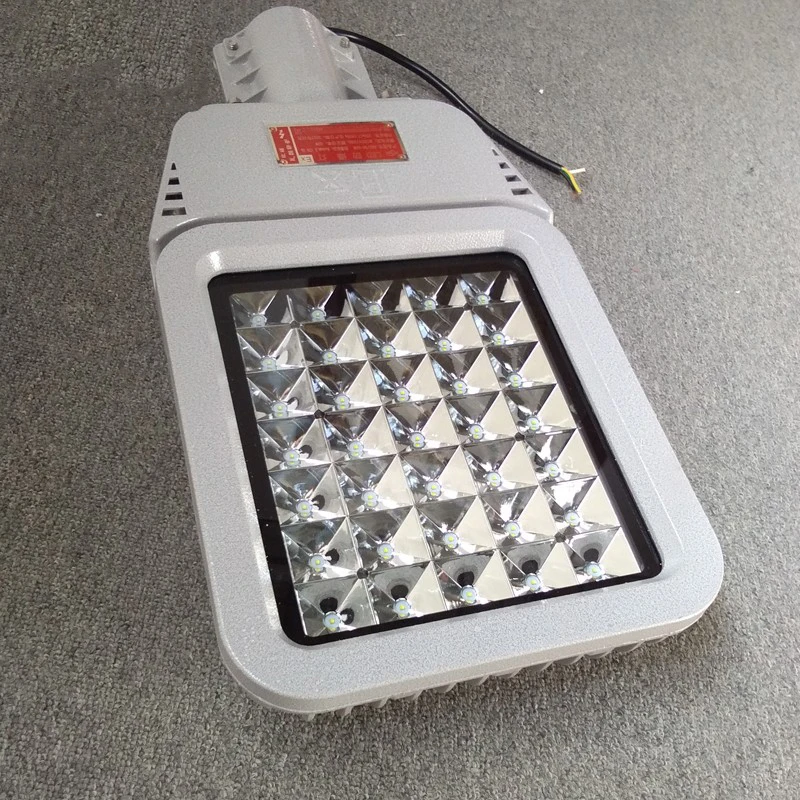

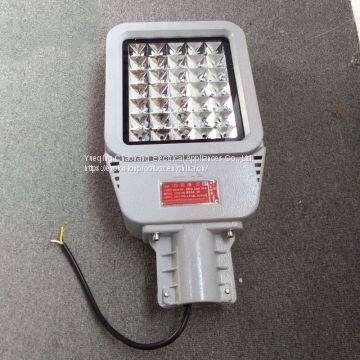

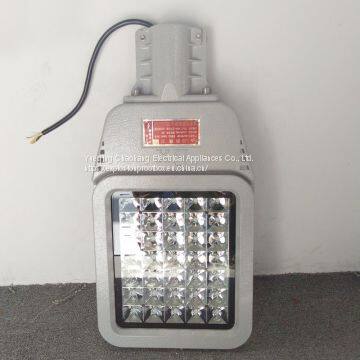

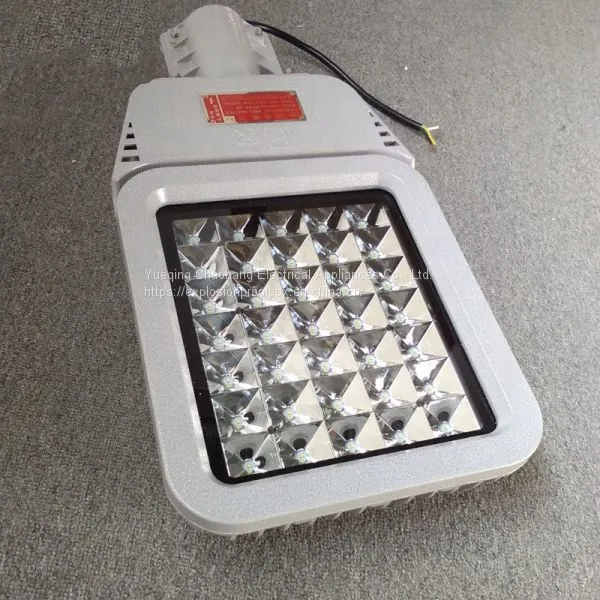

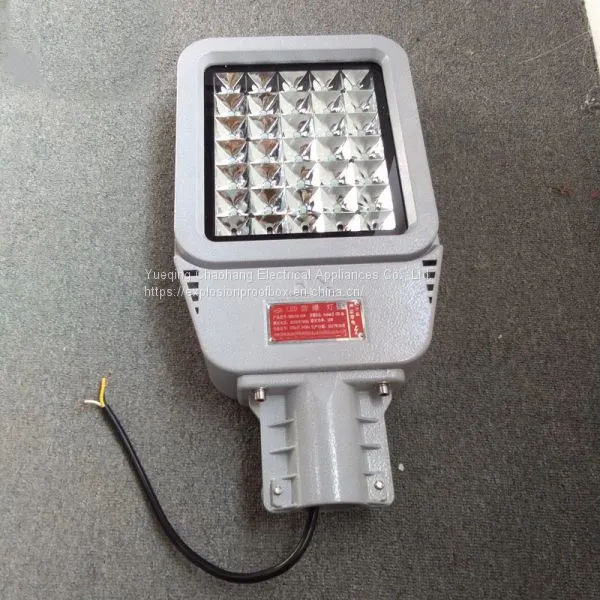

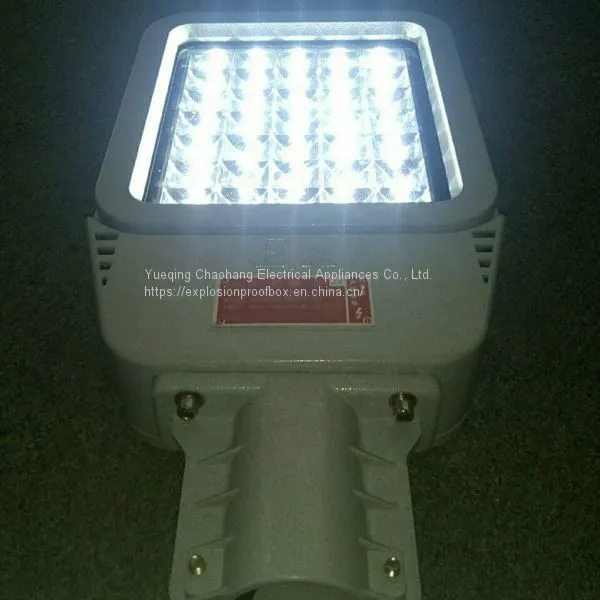

HRD9 Maintenance-free Explosion-proof LED Road Lamp High efficiency Explosion-proof street lamp pole
- 100 Bag / Bags per Month
- Explosion proof lamp Fire lampshade Flameproof type Fire lampshade Explosion-proof lampshade Explosion-proof pendant lamp
- Explosion-proof and anticorrosive lamp Cold light LED Cold white LED U-shaped bracket Maintenance-free Spotlight
- Explosion-proof double-headed emergency lamp LED circular 2*6W Double-ended explosion-proof circular emergency lamp
- Maintenance-free Waterproof Dust-proof and Antiseptic Factory Lamp Low frequency electrodeless lamp 120W 150W 200W
- Portable explosion-proof street lamp Hook type Handheld Explosion-proof hook lamp x Portable anti-explosion lamp
- Split explosion-proof lamp Explosion Proof Spotlight BAT51-J1000W
Product Details
Working Temperature(℃): | , |
Product Description
Applicable environment
1. Applicable to area 1 and 2 of explosive gas environment;
2. Suitable for Class II A, Class II B, Class II C explosive gas environment;
3. Suitable for environment with temperature group T1~T4;
4. Suitable for explosive hazardous environments such as petroleum extraction, storage, chemical industry, medicine, military industry and military facilities.
5. Used as factory or road lighting;
6. Three kinds of products can be selected: explosion-proof floodlight, explosion-proof projection lamp and explosion-proof road lamp.
Performance characteristics:
1. BZD129-100W explosion-proof LED lamp is made of aluminium alloy shell and special sealing and surface coating treatment, which ensures that the lamp will never corrode and rust in damp, high temperature and other harsh environments; transparent parts are made of toughened glass with high energy impact, and the lamp is made of explosion-proof joint surface; beautiful appearance, simple structure and easy installation.
2. The lamp adopts professional heat dissipation design structure, which ensures the long-life operation of the LED lamp. The use of high-quality aluminium reflector cup cover greatly improves the efficiency of the lamp.
3. Glass lenses are made of specially toughened glass, which can withstand impact resistance of more than 7J and have high strength. The elevation angle can be adjusted within 90-60 degrees.
4. BZD129-120W explosion-proof LED road lamp uses high brightness LED light source, cooperates with high efficiency constant current driving power supply, which saves 60% electricity than gas discharge lamp; all LED components are sealed, waterproof and dust-proof, without internal cleaning and maintenance; circuit board has low thermal resistance, and specially designed module circuit, each unit failure will not affect the normal work of other components.
5. Use suction top type, suspender type, wall hanging type and other installation methods; steel pipe or cable wiring can be.
technical parameter
Rated voltage: AC220V (permissible range AC85V-265V)
Rated power: 70W/80W/100W/120W
Luminous flux: > 90 lm/W
Average service life: 100000h
Explosion-proof sign: ExdIICT6
Shell Protection Level: IP66
Corrosion grade: WF2
External Diameter of Introduced Cable: 9-14mm
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
