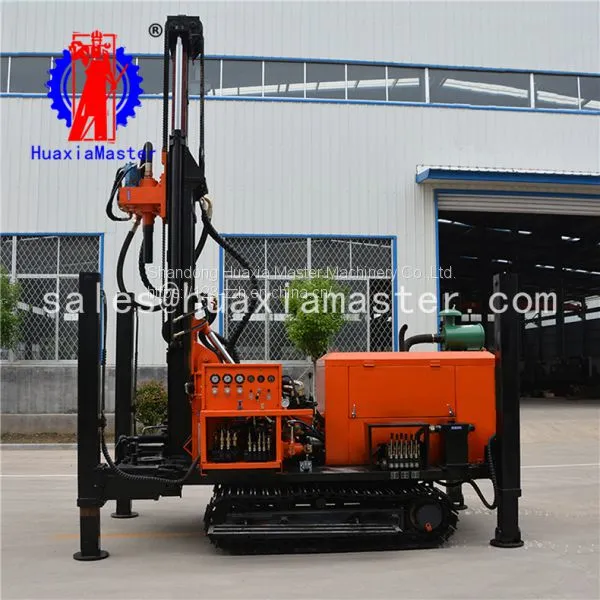

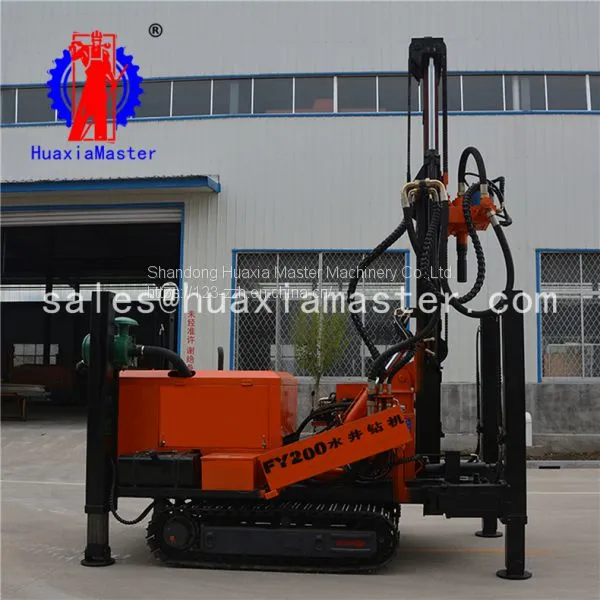

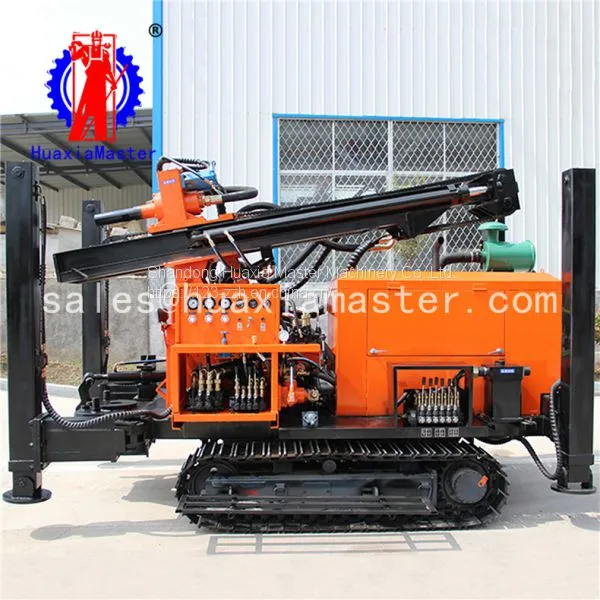

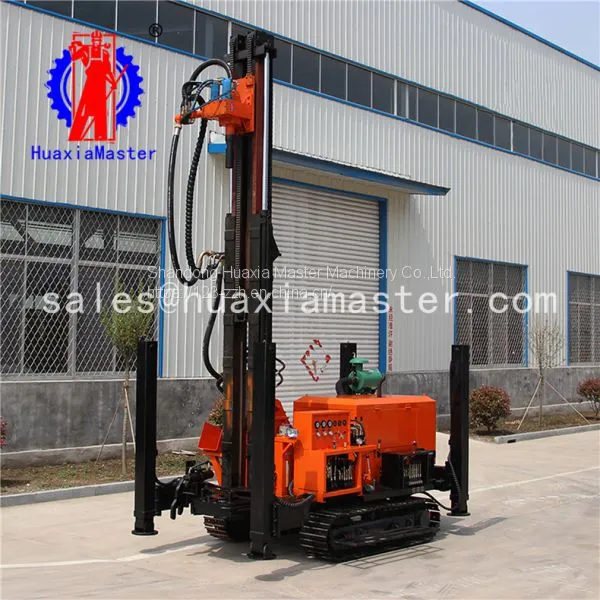

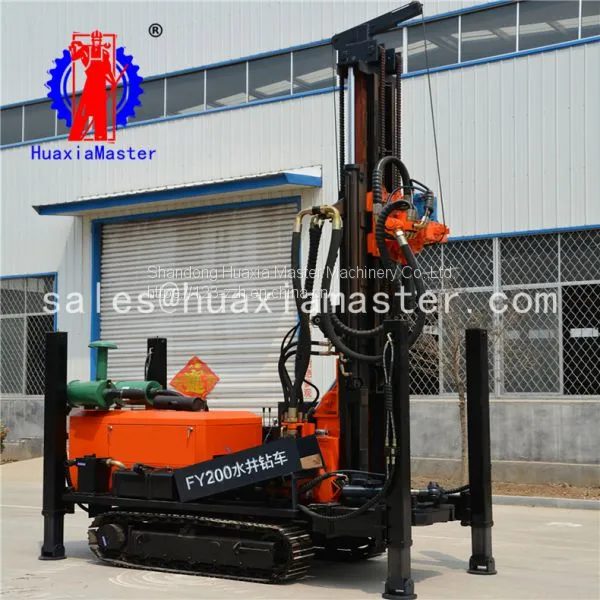

FY200 Crawler Pneumatic Water Well Drilling Rig
US$ 18400 - 19000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia master
Place of Origin:
China
Model Number:
FY200
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
30 days
Related Products
-
FY260 Crawler Pneumatic Water Well Drilling RigUS$ 20000 - 23000MOQ: 1 Set -
FY300 Crawler Pneumatic Water Well Drilling RigUS$ 26000 - 28500MOQ: 1 Set
-
FY300 Crawler Pneumatic Water Well Drilling RigUS$ 26000 - 28500MOQ: 1 Set
-
FY400 Crawler Pneumatic Water Well Drilling RigUS$ 35199 - 36000MOQ: 1 Set
-
FY600 Crawler Pneumatic Water Well Drilling RigUS$ 35000 - 38000MOQ: 1 Set
Brand Name
Huaxia master
Place of Origin
China
Model Number
FY200
Type
Rotary Drilling Rig
Certification
ISO9001
After-sales Service Provided
Overseas service center available
Warranty
6 months
Weight
4600kg
Dimension(L*W*H)
3800*1600*2450
Power Type
Electric
Usage
Coal
Condition
New
Power(W)
65kw
FY200 crawler pneumatic water well drilling rig
1. The applications of FY200 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2.The specifications of FY200 crawler pneumatic water well drilling rig
Model |
FY200 |
|
Gross weight |
t |
4.6 |
Dimension |
mm |
3800*1600*2450 |
Aperture |
mm |
140-325 |
Drilling depth |
m |
200 |
Feed stroke |
mm |
3000 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.0 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
65 |
Rotary speed |
rpm |
50-70 |
Rotation torque |
n.m |
5000-6500 |
