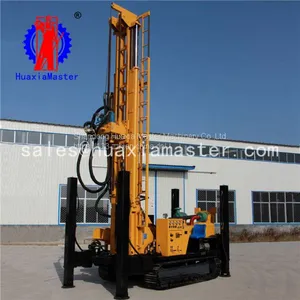

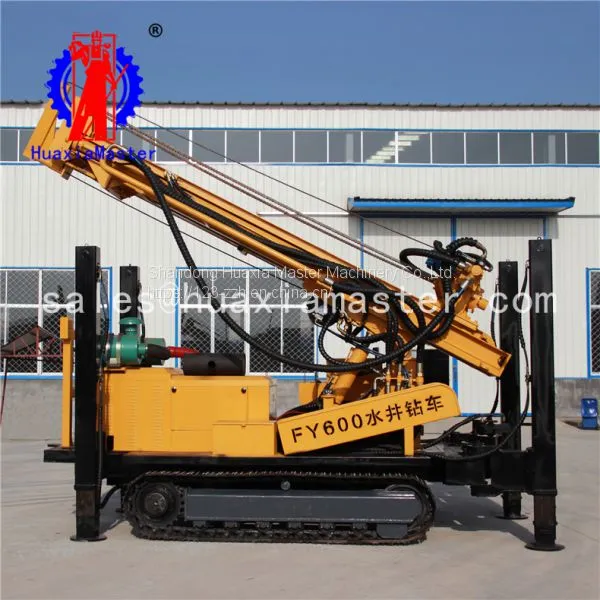

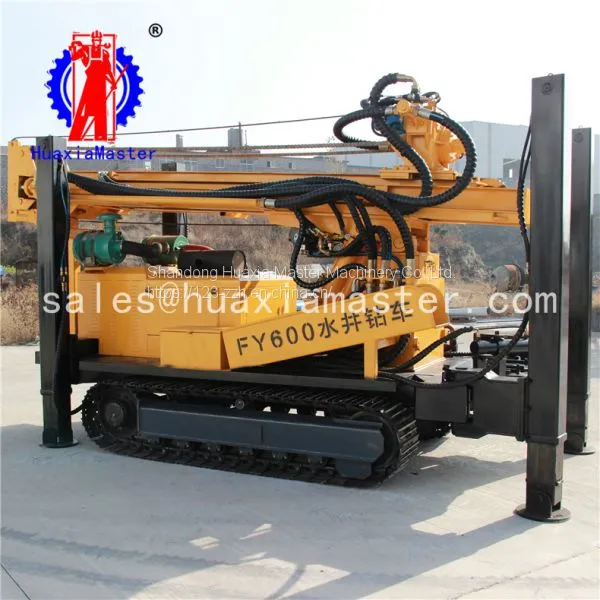

FY600 Crawler Pneumatic Water Well Drilling Rig
US$ 35000 - 38000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Huaxia master
Place of Origin:
China
Model Number:
FY600
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
30 days
Related Products
-
Supply Large Spj-300 Millstone Household Well Rural Cement Pipe Irrigation Well Drilling Rig Large Caliber Deep Water WellUS$ 9000 - 9900MOQ: 1 Set -
1.Supply Large Spj-400 Type Grinding Disc Drilling Machine for Household Large-caliber Irrigation Well and 400-meter Deep Water Well Drilling RigUS$ 12000 - 12500MOQ: 1 Set
-
Water Supply 600 Crawler Type Large Aperture Spj-600 Grinding Disc Drilling Machine Automatic Hydraulic Drilling TowerUS$ 26000 - 29000MOQ: 1 Set
-
SPJ-1000 Water Well Drilling RigUS$ 50690 - 51000MOQ: 1 Set
-
HZ-130Y Rock Drill Equipped With Conical Clutch Direct Grouting Drilling Rig Machine.US$ 5000 - 5250MOQ: 1 Set
Brand Name
Huaxia master
Place of Origin
China
Model Number
FY600
Type
Rotary Drilling Rig
Certification
ISO9001
After-sales Service Provided
Overseas service center available
Warranty
6 months
Weight
12t
Dimension(L*W*H)
5400*2100*2850
Power Type
Diesel
Voltage
220V
Usage
Coal
Condition
New
Power(W)
115kw
FY600 crawler pneumatic water well drilling rig
1.The applications of FY600 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling
· drilling with large diameter and deep drilling footage
· fast, flexible and efficient
2.The specifications of FY600 crawler pneumatic water well drilling rig
Model |
FY600 |
|
Gross weight |
T |
12 |
Dimension |
mm |
5400*2100*2850 |
Aperture |
mm |
140-350 |
Drilling depth |
m |
600 |
Feed stroke |
mm |
6600 |
Travel speed |
km/h |
2.5 |
Grade ability |
max. |
30° |
Rising height from ground |
mm |
250 |
Wind pressure |
mpa |
1.7-3.5 |
Air consumption |
m³/min |
17-35 |
Engine power |
kw |
115 |
Rotation speed |
rpm |
45-110 |
Rotation torque |
n.m |
8500-10050 |
