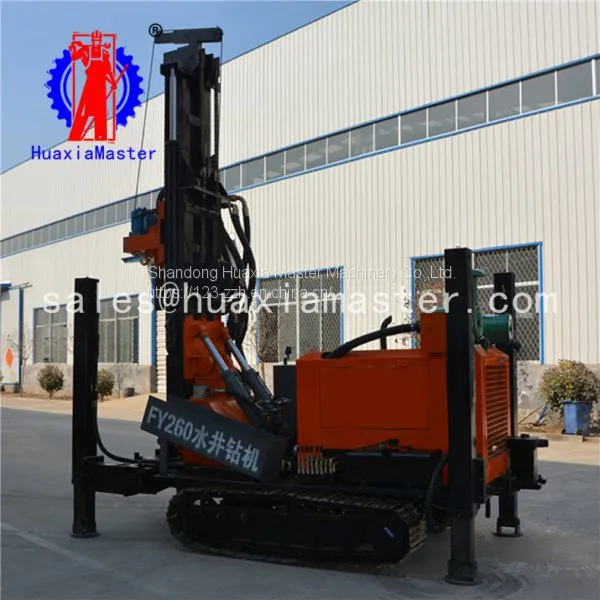

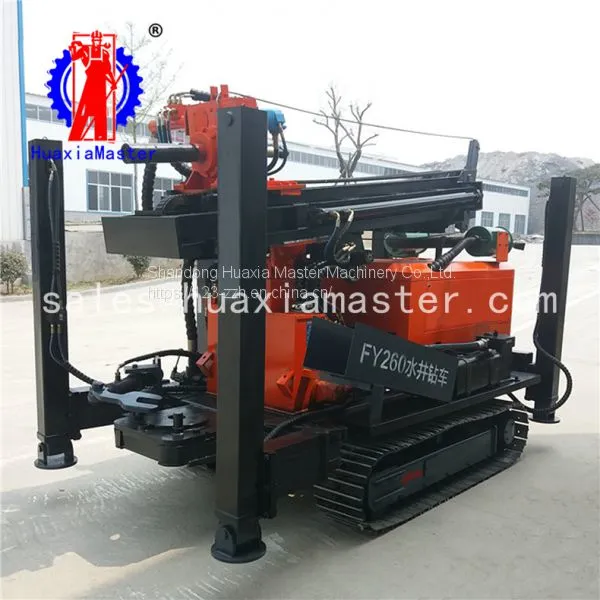

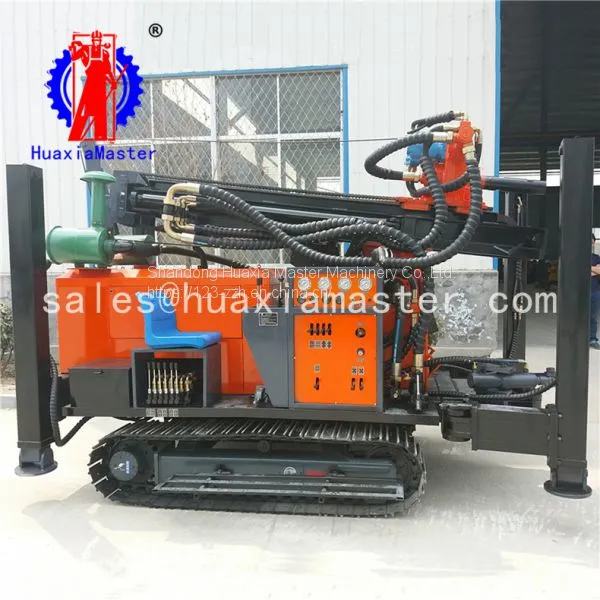

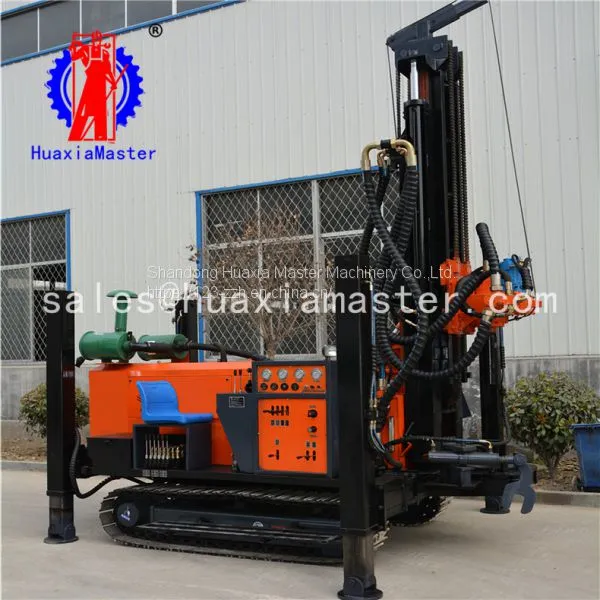

FY260 Crawler Pneumatic Water Well Drilling Rig
US$ 20000 - 23000
/ Set
1 Set(Min. Order)
- QINGDAO
- T/T L/C
- 30 days
You May Like
-
FY300 Crawler Pneumatic Water Well Drilling Rig
-
FY300 Crawler Pneumatic Water Well Drilling Rig
-
FY400 Crawler Pneumatic Water Well Drilling Rig
-
FY600 Crawler Pneumatic Water Well Drilling Rig
-
Supply Large Spj-300 Millstone Household Well Rural Cement Pipe Irrigation Well Drilling Rig Large Caliber Deep Water Well
-
1.Supply Large Spj-400 Type Grinding Disc Drilling Machine for Household Large-caliber Irrigation Well And 400-meter Deep Water Well Drilling Rig
Product Details
| Brand Name | Huaxia master | Place of Origin | China | |
| Type | Rotary Drilling Rig | Certification | ISO9001 | |
| After-sales Service Provided | Overseas service center available | Warranty | 6 months | |
| Weight | 6200kg | Dimension(L*W*H) | 3900*1950*2550 | |
| Power Type | Electric | Voltage | FY260 | |
| Usage | Coal | Condition | New | |
| Power(W) | 85kw |
Product Description
FY260 crawler pneumatic water well drilling rig
1. The applications of FY260 crawler pneumatic water well drilling rig
· civil engineering drilling
· geothermal drilling,
· drilling with large diameter
· deep drilling footage
· fast, flexible and efficient.
2. The specifications of FY260 crawler pneumatic water well drilling rig
Model | FY260 | |
Gross weight | t | 6.2 |
External dimension | mm | 3900*1950*2550 |
Aperture | mm | 140-325 |
Drilling depth | m | 260 |
Feed stroke | mm | 3000 |
Travel speed | km/h | 2.5 |
Grade ability | max. | 30° |
Rising height from ground | mm | 250 |
Wind pressure | mpa | 1.7-3.0 |
Air consumption | m³/min | 17-35 |
Engine power | kw | 85 |
Rotary speed | rpm | 40-70 |
Rotation torque | n.m | 7000-9000 |
