Metal Floor Deck Sheet Roll Forming Machine/roof Decking Roll Forming Machine

Metal Floor Deck Sheet Roll Forming Machine/roof Decking Roll Forming Machine

• We as a manufacturer are specialized in all kinds of double layers roof roll forming machine .

• Good experience of 15 years to make double layers roof roll forming machine.


• Good experience for export more then 40 countries.


• Professional team, complete production system, high quality, good service.

1. Panel drawing

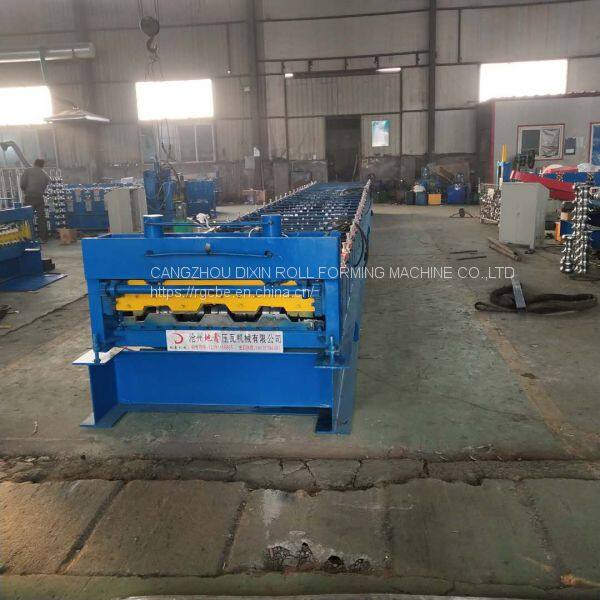

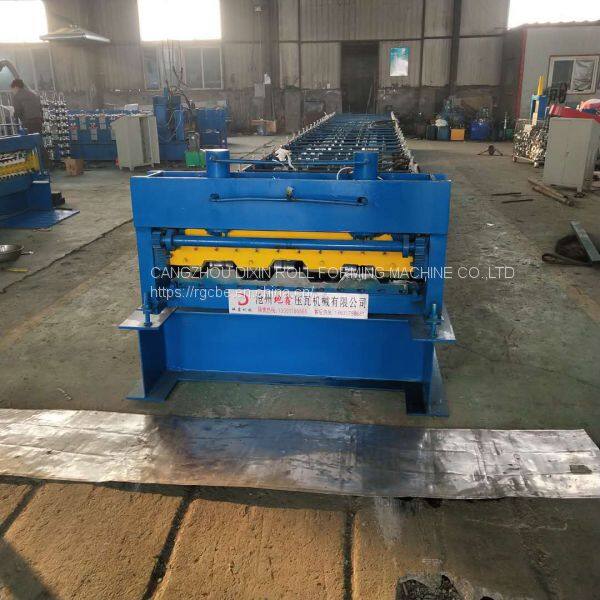

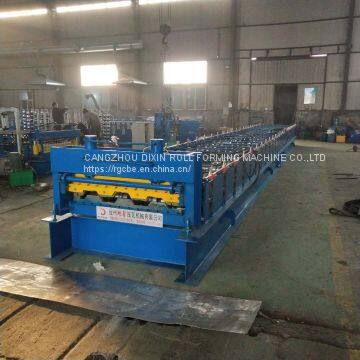

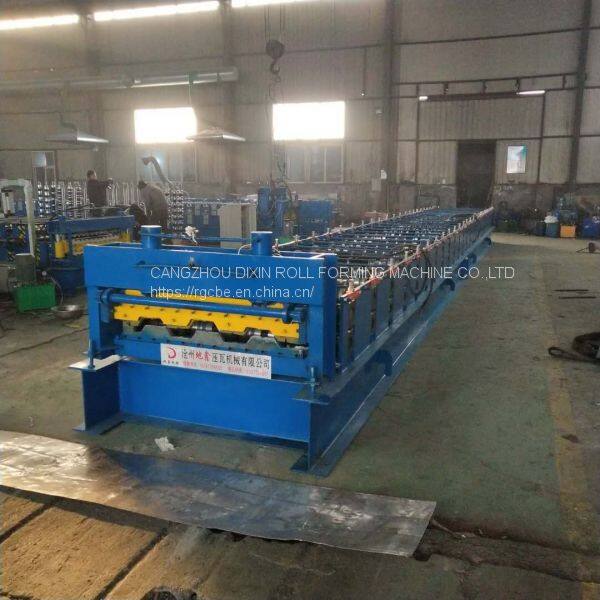

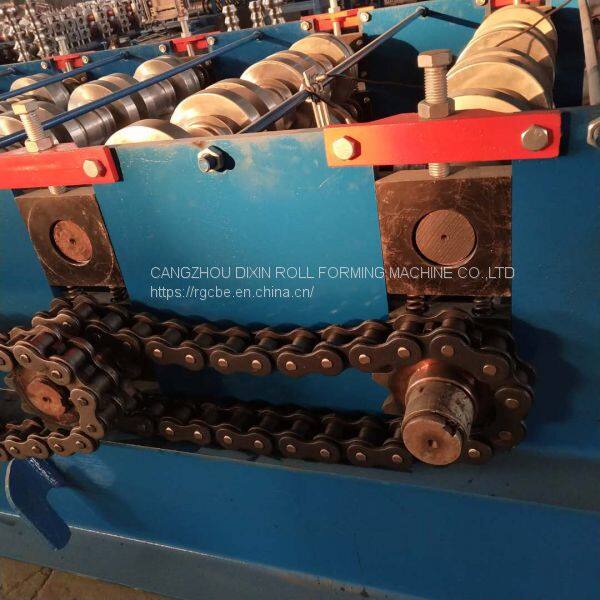

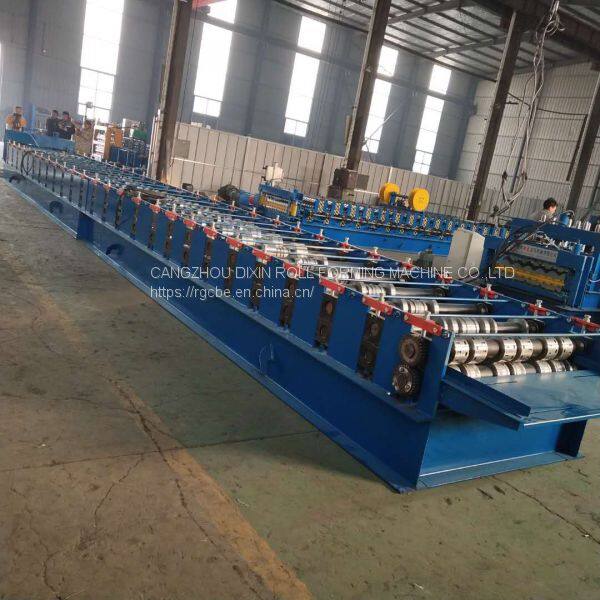

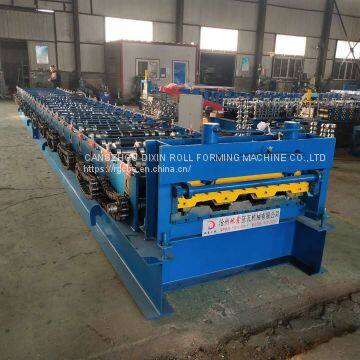

2. some machine pictures for your reference

3.

4. Technical Parameters (depending on specific requirements of users)

5. No.	floor deck machine
   1	Suitable to process	Galvanized sheet
   2	Feeding width	1000~1500mm
   3	Thickness of raw material	1.0~2.0mm
   4	Main frame	400 I-beam steel
   5	Roller station	26 steps
   6	Diameter of shaft	95mm
   7	Material of roller	45# steel,quenched
   8	Thickness of sidewall	25mm
   9	Chain size	2.6 inches
   10	Main motor power	22kw
   11	Pump motor power	5.5kw
   12	Voltage	380V,50Hz or customized
   13	Cutting blade	Cr12 steel,quenched
   14	PLC brand	Delta or customized

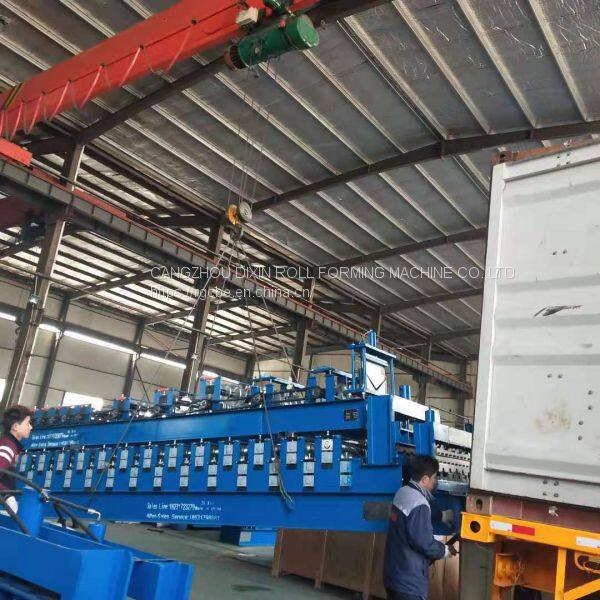

6. Packing and shipping

7. 1.Packaging Details:Nude,with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.

8. 2.Port:TIANJIN XINGANG PortLead .

9. 3.Time: Shipped in 35 days after payment.

10. Usually the welding pipe cold roll forming machine can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.

11.

12.


13. About us

14. The company is specialized in manufacturing Color steel forming machinery, C and Z purling machine, Glazed tile forming machine, steel structural floor panel roll forming machine, sandwich panel roll forming machine, highway guardrail forming machine, downspout forming machine, car panel roll forming machine, roll shutter door roll forming machine, sheet slitting equipment, and other equipment accessories.

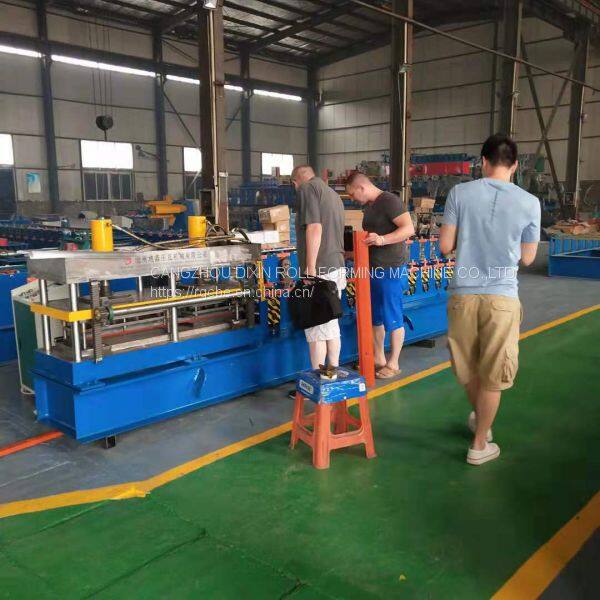

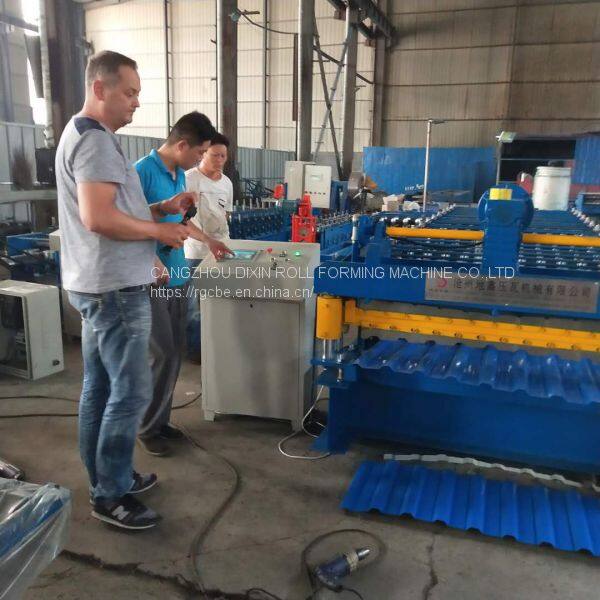

15. customers visit
