Roofing Sheet Trapezoid Tiles Metal Roll Forming Machine
The corrugated metal roofing sheet machine are beautiful and durable.With advantages of saving space and easy operation. They are widely used in gardens, factories, resorts, hotels, exhibition halls, vacationlands, ancient architectures and modern villas.

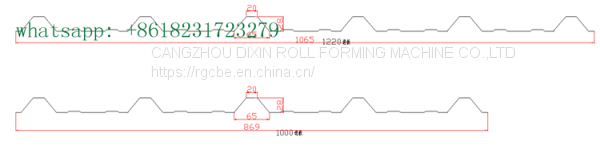

panel drawing for your reference.
Flow chart : Decoiler-- Roll FormingF--PLC System—Hydraulic System –Pressing --Cutting —Output Table
Technical parameters
| 1 | suitable material | Colored Steel plate, galvanized board, Aluminum plate |
| 2 | Input width | 1220mm |
| 2 | Effective width of sheet | 1000mm |
| 3 | Rows of rollers | 13rows |
| 4 | material of roller | high grade 45# steel(plated chrome on surface) |
| 5 | Total power Main motor power: 4kw Hydraulic station power: 4kw | 4kw+4kw |
| 6 | Thickness of raw material | 0.3-0.8mm |
| 7 | Productivity | 10-12m/min |
| 8 | diameter of shaft | 75mm |
| 9 | Voltage | 380V 50Hz 3phases or according to customer's request |
| 10 | Main frame | 300 H steel |
| 11 | Medium plate thickness | 16 mm |
4.Payment term
TT, you should pay 30% as the deposit on the order day, then pay 70% before delivery when you inspect goods well in factory or by video
5.Warranty
12 months, and lifelong technical support service
6.Installation
If you need, we will send one technician to your factory to install & testing the machine. You should assist the technician to get Visa and pay for flight tickets and local accommodation, and pay 80 USD/day for salary.
7. Package
Standard export package, water-proof package, covered with plastic film.

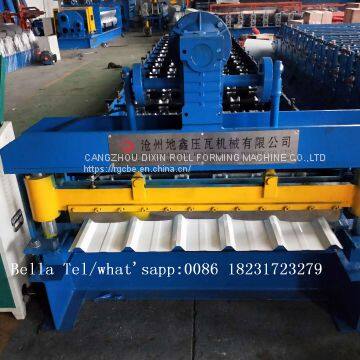

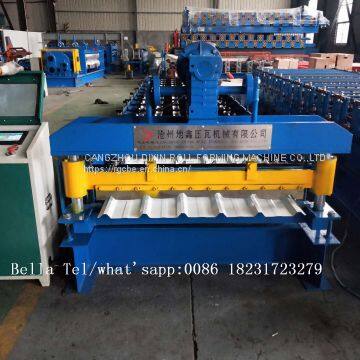

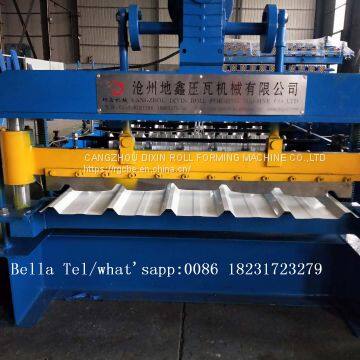

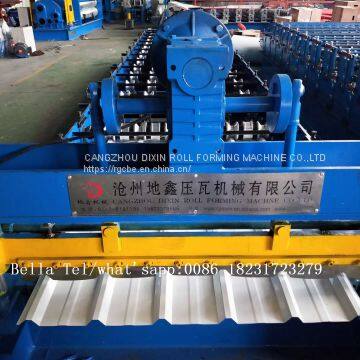

8.Some pictures of the machine for your reference.
Our machine pictures for your reference.
If you want to know more details of the machine,please contact us.
Contact: Bella Skype:andylidx Whatsapp: +8618231723279
welcome you visit our factory.
