Standing Seam New Metal Wall Panel Roofing Cold Profile Roll Forming Machine
Main Accessories:
(1).Main Forming Machines;
(2).5 Tons Manual Uncoiler;
(3).Hydraulic System;
(4).Hydraulic Automatic Pre-Punching Mould;
(5).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching
screen, cencorder and frequency changer)

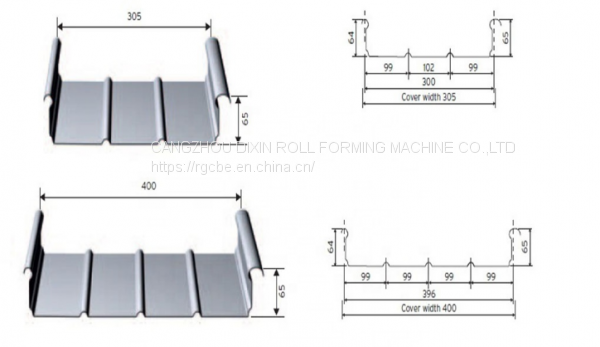

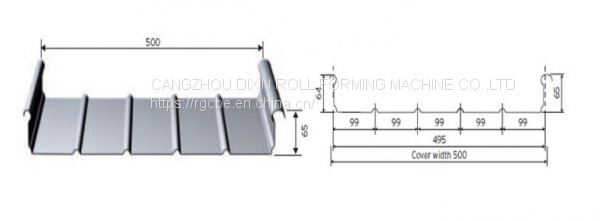

1.Panel drawing according to your request

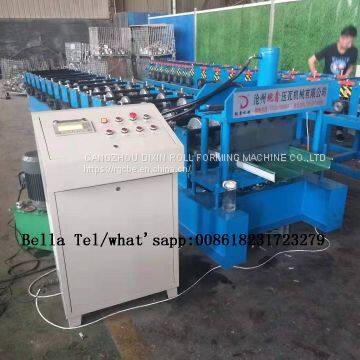

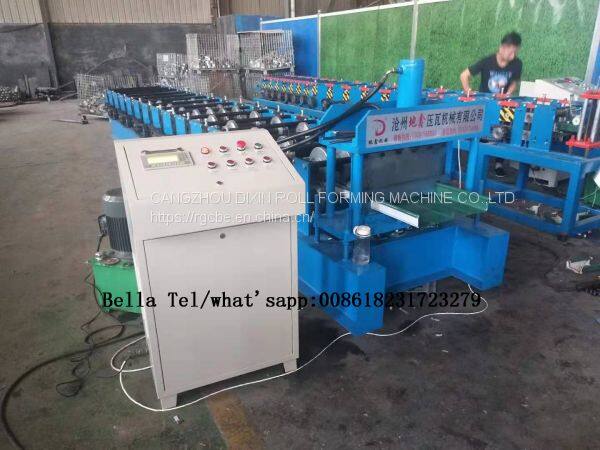

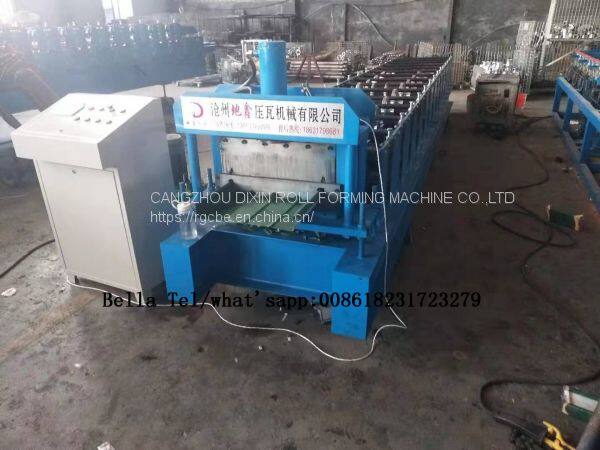

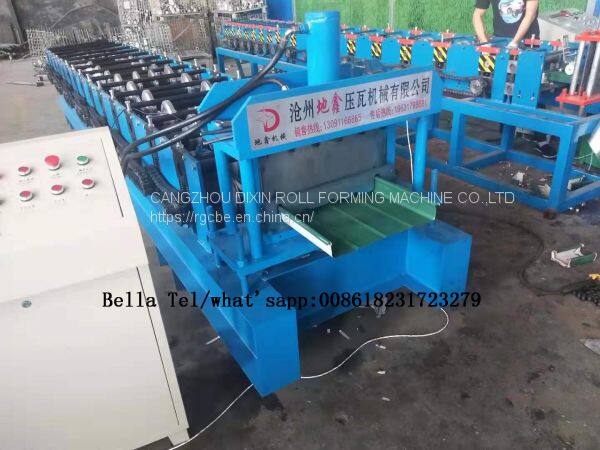

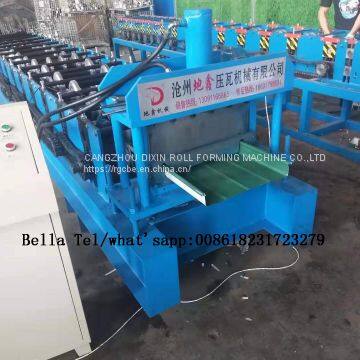

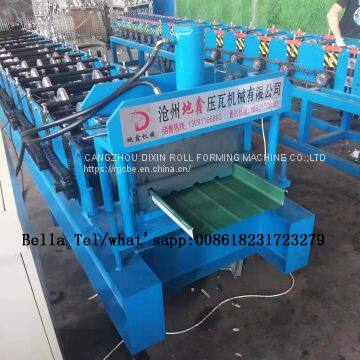

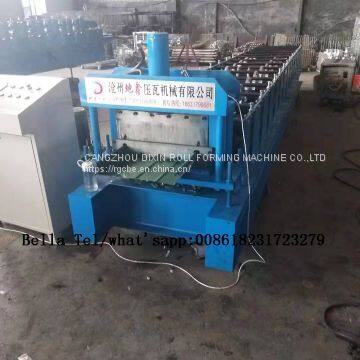

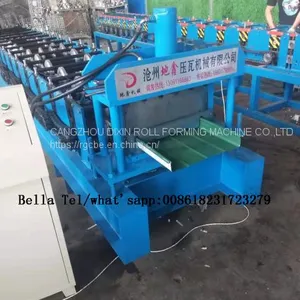

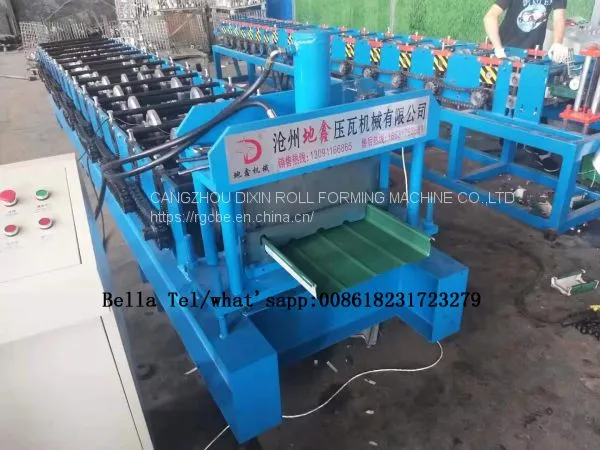

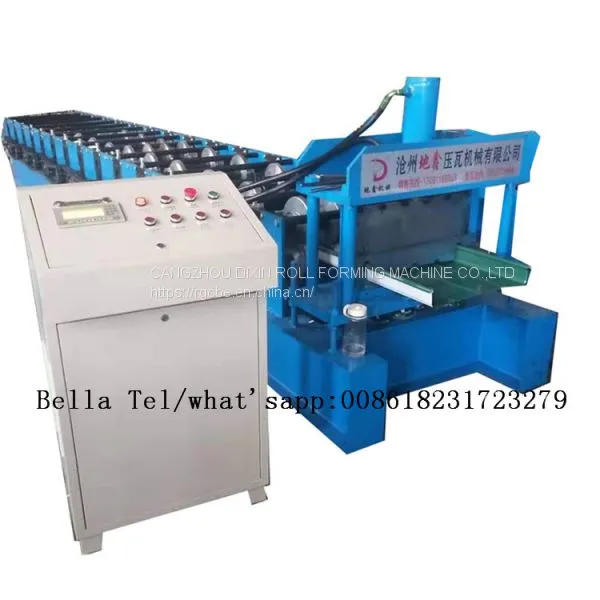

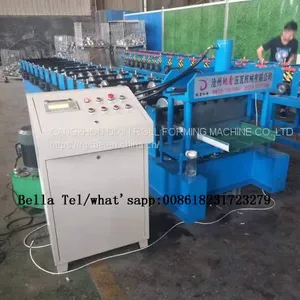

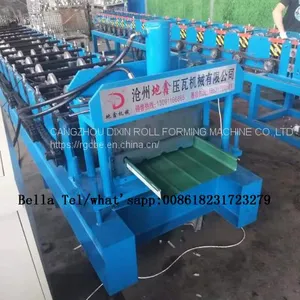

2.some machine pictures for your reference.
3.Machine Technique parameters
1. Profile |
1 Feeding width: 1000mm 2 Effective width:660mm 3 Material thickness: 0.3-0.8mm |
2. Process flow |
Decoiling--feeding---forming---cutting---production
|
3.Manual Decoiler |
1 Material coil inner diameter: 450mm-700mm 2 Max coil width: 1200mm 3 Carrying capacity: 6.8T
|
4.Forming Device |
1 Number of forming steps:15 steps 2 Shaft material: 45# steel with harden treatment, outer diameter 75mm 3 Roller material: 45# steel 4 Main motor power: 5.5kw 5 Forming speed: 8-12m/min(So year production is about 520000 pieces generally) 6 Voltage:380V/50Hz/3 phrase |
5.Cutting Device |
1 hydraulic cutter 2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62°C 3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor. |
6.Controlling Device |
1 screen: 5.7 inch Taida screen from Taiwan 2 PLC: Taida DVP14ES from Taiwan |
7. Hydraulic |
1 Advanced hydraulic system from Taiw |
8.Simple output frame |
simple frame weld bu #8 U bar, 1 pcs of 3m |
9.Payment and terms |
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
|
10.Warranty |
One year, and we will provide the technical support for the whole life. |
|
11. Packing |

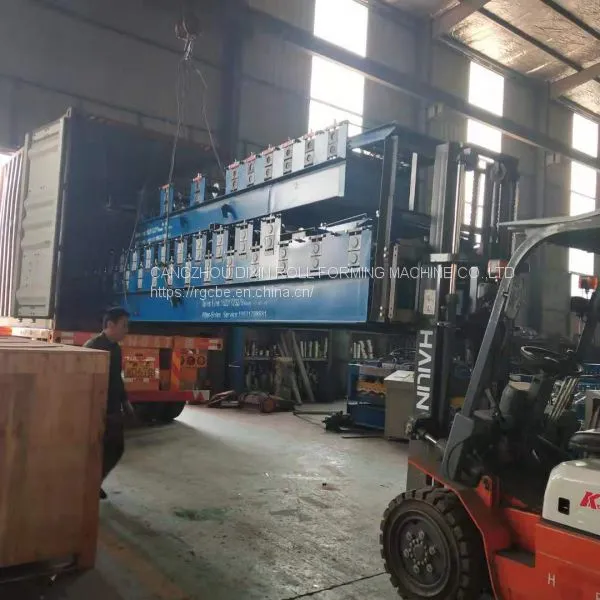

Container packing of the line suitable for overseas shipping The subject can be loaded in one 20’ GP container. Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box. |
12.Assemble, train the machine |
It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time |
|
13. Maintain |
It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $100/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain). |
Working Flow
Decoiling-Sheet guiding-Roll forming-Measure length-Cutting-Panels to product stand
Component
NO. |
Item |
Unit |
Qty |
1 |
Manual decoiler |
set |
3 |
2 |
Main roll forming machine |
set |
1 |
3 |
PLC control box |
set |
1 |
4 |
Supporter table |
set |
1 |
Workflow
Decoiler--Roll Forming--PLC System--Hydraulic System--Cutting--Output Table
1. Cutting press is 20 tons
2. Blade and mold material:GCR12steel with quenched treated 60-62℃
It can decide cut panel dimension according to the hydraulic drive and PLC computer control system
Hydraulic Station
2. Roller station: 11-16(depends on final design)
3. Thickness of feeding material:0.3-0.8mm
2. Automatic length measurement
3. Automatic quantity measurement
4. Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved.
5. Length inaccuracy can be amended easily.
2 Steel coil width: 1300mm
4 Coil placement in the coil holder: hydraulic hoist
5 Working speed: 0-15m/min adjustable
4.About our company
Cangzhou Dixin Roll Forming Machine Co.,ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and associated enterprises, concerning with the design, development and production of cold roll forming machines,material of building. We specialize in the automated production line of sheet cold roll forming machines. We are able to provide an integral resolution schema of cold roll forming system through a combination of advanced system design and equipment. Based on our advanced research and commercial team, we are able to research and development, manufacturing and sale of standard and non-standard cold roll forming equipment for our clients world widely.
1 warranty:One year, and we will provide the technical support for the whole life.
2 Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3 Need one or two technician
4. Training time: one week (contains the time of installation and adjustment)
Packing and shipping

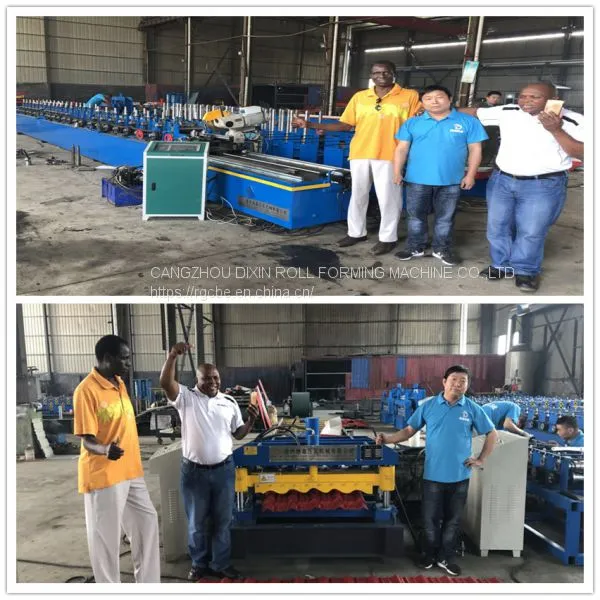

Customer visit
