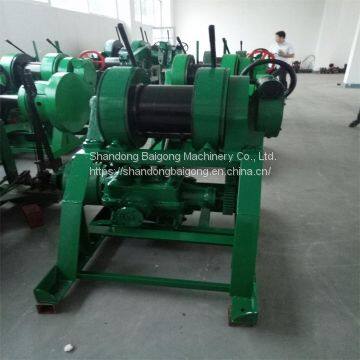

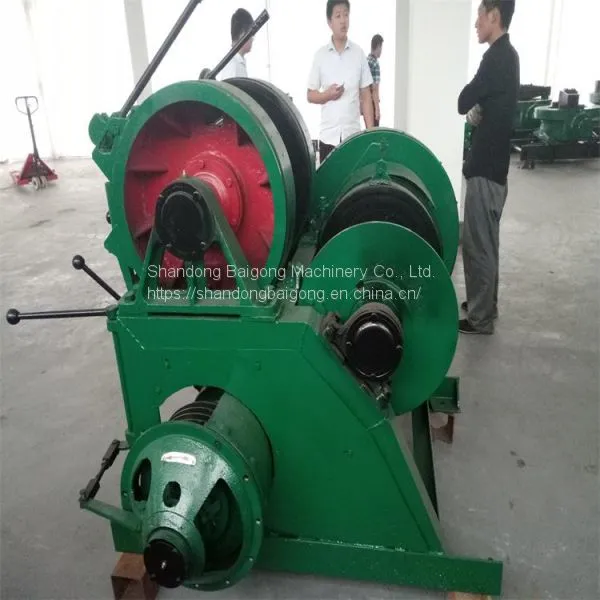

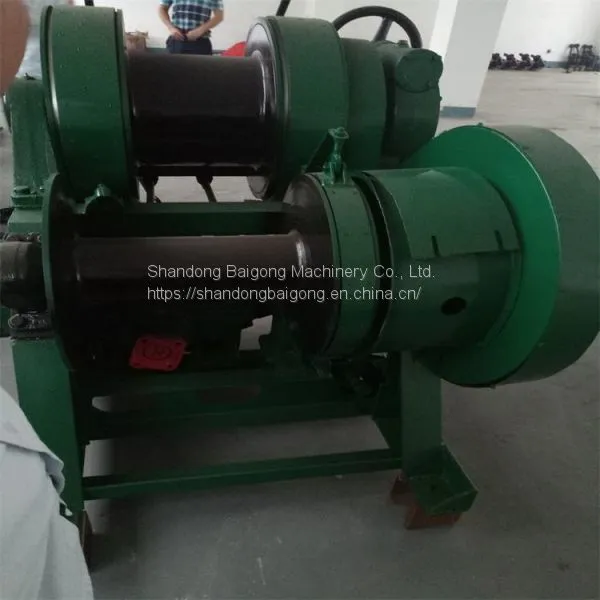

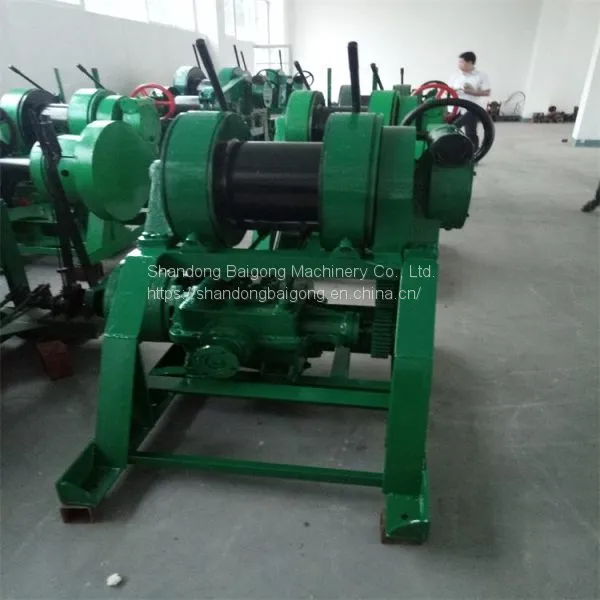

SPJ-400 Engineering Drilling Rig
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Bafang
Place of Origin:
China
Model Number:
SPJ-400
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Related Products
-
SPJ-400 Engineering Drilling RigUS$ 3700 - 4000MOQ: 1 Set -
The BF-150 Reverse Circulation Drilling RigNegotiableMOQ: 1 Set
-
The QY200 Crawler Type Water Well Drilling RigNegotiableMOQ: 1 Set
-
ZDY Coal Mine Full Hydraulic Tunnel Drilling RigNegotiableMOQ: 1 Set
-
ZLJ Tunnel Drilling RigNegotiableMOQ: 1 Set
Brand Name
Bafang
Place of Origin
China
Model Number
SPJ-400
Type
Rotary Drilling Rig
Certification
CE ISO
After-sales Service Provided
No overseas service provided
Warranty
1 Year
Weight
6.5T
Dimension(L*W*H)
8400×2050×8000 mm
Power Type
Diesel
Voltage
220V
Usage
Water Well
Condition
New
Power(W)
120KW
Large diameter water well drilling machine with grinding
Description
SPJ-400 engineering drilling rig, also known as grinding disc drilling machine, is suitable for drilling operations in water conservancy projects, pile foundation engineering and bridge tunnel engineering.
Main Parameter
Technical parameters | Unit | SPJ-400 |
Drilling diameter | mm | 500-1800 |
Drilling depth | M | 40050 |
Max. output torque | KN·M | 18 |
Main drill pipe | mm | 108×108×4000 |
Drill pipe | mm | 89×4200,127×108×4200 |
Lifting capacity of main hoist | KN | 30 |
Lifting capacity of Secondary hoist | KN | 20 |
Spindle inner diameter | mm | 500-1200 |
rotary speed | r/min | 40,70,128 |
The vertical height of tower | M | 8.6 |
Weight | T | 6.5 |
Dimension | mm | 8400×2050×8000 |
