Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > XYD-3 Crawler Drilling Rig

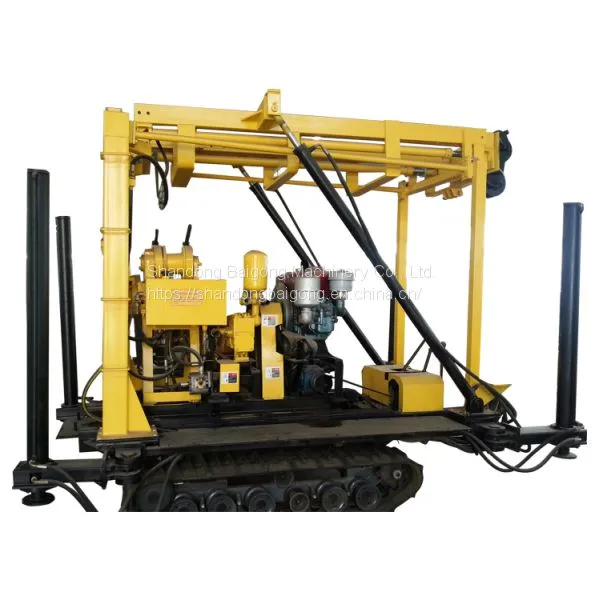

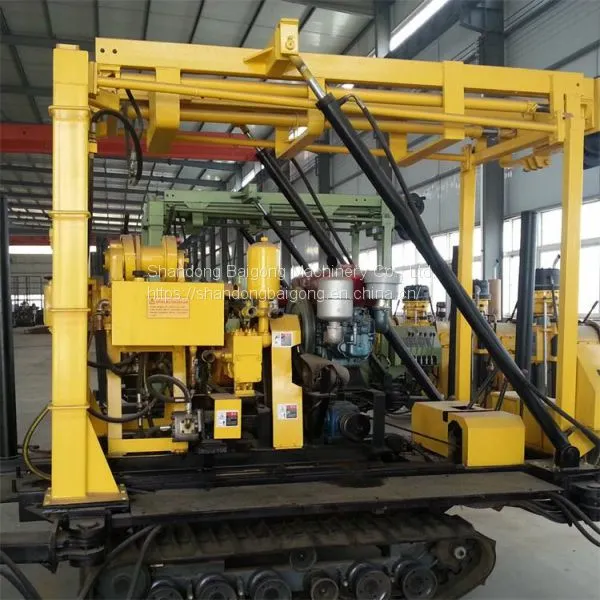

XYD-3 Crawler Drilling Rig

Name: XYD-3 Crawler Drilling Rig
Brand: Bafang
SKU: 161165859
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Bafang

Place of Origin:

China

Model Number:

XYD-3

Contact Supplier Request Quote Chat Now

Shandong Baigong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

15 days

Product Details
Company Profile
Contact Us

Brand Name Bafang

Place of Origin China

Model Number XYD-3

Type Other, water well drilling rig

After-sales Service Provided No overseas service provided

Weight 7000KG

Dimension(L*W*H) 2500×900×1800mm

Power Type Other, Diesel &Electric

Usage Water Well

Condition New

Power(W) 22000

XYD-3 crawler drilling rig adopts mw525 type automobile gearbox assembly, Yunnei 490 automobile powertrain, with 10 speed series and reasonable speed regulation range, large torque and strong bearing capacity, which can realize remote control shifting. Convenient operation. With the crawler chassis, the leg cylinder can be loaded automatically with a stroke of 1.5m, which is convenient for relocation and transportation. It has a hydraulic pressure feeding mechanism to improve drilling efficiency. It is equipped with a bottom pressure gauge to indicate the pressure, which is convenient for grasping the inside of the hole. It has a normally closed hydraulic chuck for easy and flexible operation. Independent operation of the vertical shaft and the hoist can be realized. The vertical shaft through hole has a large diameter and can be replaced with a large hexagonal active drill pipe.

Technical parameters
Drilling depth	530m
Drilling diameter	75-300mm
Open hole diameter	300mm
End hole diameter	75mm
Drilling pipe	Φ60
Drilling angle	90-65°
Spindle forward speed	32-1057r/min
Spindle reverse speed	29-137r/min
Spindle stroke	600mm
Vertical shaft bore diameter	96mm
Vertical shaft bore diameter	0.5-1.9m/s
Wire rope diameter	12.5mm
Single rope lifting capacity	30kN
Roll diameter	300mm
Roll capacity	65m
Horizontal three-cylinder BW-250 mud pump	BW-250 mud pump
Displacement	250L/min
Work pressure	80kgcm²
Inlet pipe diameter	76mm
Outlet pipe diameter	51mm
Double gear pump	CBF-F63/25
Front flow pressure	63L/min 20Mpa
Post flow pressure	25L/min 20Mpa
diesel engine	yunneiYN27/power 39kw/2400rpm
Mortar	Y180L-4/22kW/1470rpm
Weight	7000KG
Dimension	2500×900×1800mm
