Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > The Crawler Type DTH Drilling Rig

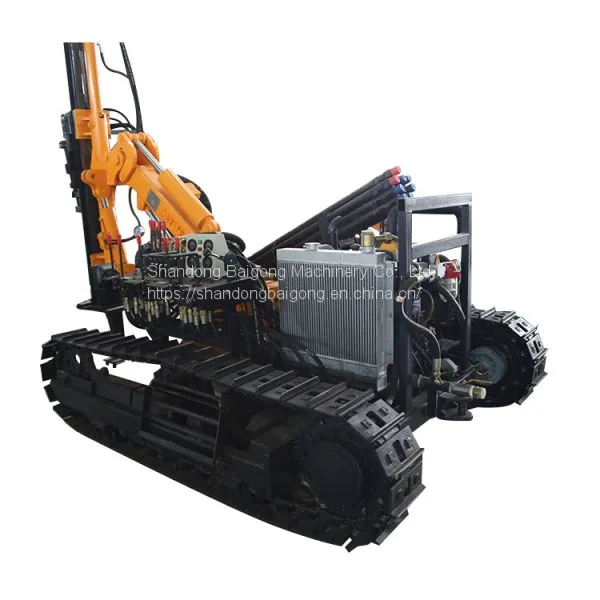

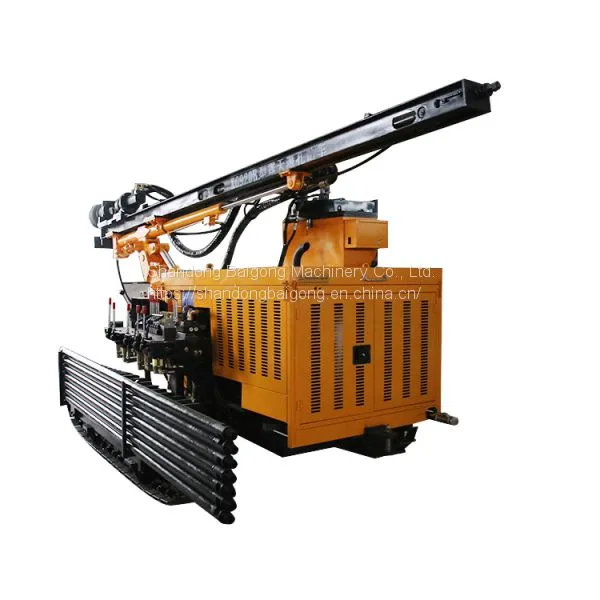

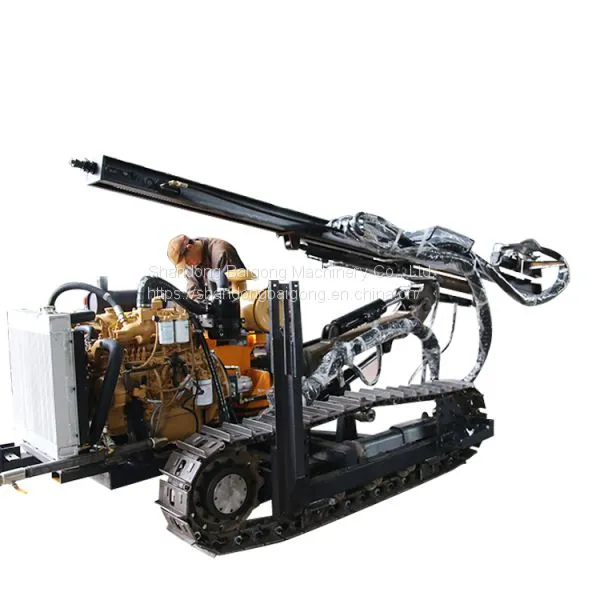

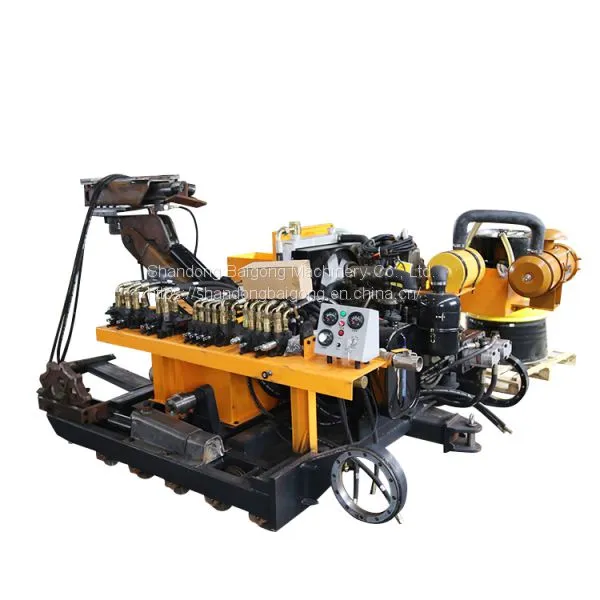

The Crawler Type DTH Drilling Rig

Name: The Crawler Type DTH Drilling Rig
Brand: Bafang
SKU: 161165147
Availability: InStock

The Crawler Type DTH Drilling Rig thumbnail-1

The Crawler Type DTH Drilling Rig thumbnail-2

The Crawler Type DTH Drilling Rig thumbnail-3

The Crawler Type DTH Drilling Rig thumbnail-4

The Crawler Type DTH Drilling Rig thumbnail-5

The Crawler Type DTH Drilling Rig photo-1

The Crawler Type DTH Drilling Rig photo-2

The Crawler Type DTH Drilling Rig photo-3

The Crawler Type DTH Drilling Rig photo-4

The Crawler Type DTH Drilling Rig photo-5

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

Bafang

Place of Origin:

China

Model Number:

ZLJ-650

Contact Supplier Request Quote Chat Now

Shandong Baigong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

15 days

Product Details
Company Profile
Contact Us

Brand Name Bafang

Place of Origin China

Model Number ZLJ-650

Type Other

After-sales Service Provided No overseas service provided

Weight 3400KG

Dimension(L*W*H) 4100×2030×2020MM

Power Type Electric

Usage Ore

Condition New

The crawler type DTH drilling rig, also known as the DTH drilling rig, is mainly used for rock drilling work in open pit mining, road construction, water conservancy, power station and other projects. Adopting new hydraulic technology, the air consumption is low, the turning torque is large, the shifting hole is convenient, and the propulsion carriage has the telescopic function. When the drilling is carried out, the carriage is supported on the ground with good stability.

Technical parameters	Unit	910B	920B	940B
Applicable rock hardness	F	6-20	6-20	6-20
Drilling diameter	mm	80-105	80-105	165
Drilling depth	mm	25	25	25
Walking speed	Km/H	2	2	2
Climbing capacity	°	≤30	≤30	≤30
Dimension	mm	4100×2030×2020	4400×2200×2050	5400×2330×2400
Total weight	Kg	3400	4000	6800
Min ground clearance	mm	254	290	320
Luffing Angle of the slide	°	Overlook 118.5 look up 23.5 total 142	Overlook 135 look up 50 total 185	180
Maximum swing angle of the carriage	°	Left 36.5 Right 11.5 total 48	Left 100 Right 45 total 145	Left 36 right 89
Drill arm pitch angle	°	Overlook 20 look up 15 total 35	Overlook 50 look up 25 total 75	-25-45
Drill arm swing angle	°	·	Left 44 right 45 total 89	±45
Compensation length	mm	900	900	1200
One push length	M	2	3	3
Working pressure	MPa	0.63-1.2	0.7-1.7	1-2.4
Air consumption	M³/min	9-13	9-13	＞15
