XYX-3 Wheeled Walking Water Well Drilling Rig

XYX-3 Wheeled Walking Water Well Drilling Rig thumbnail-1
XYX-3 Wheeled Walking Water Well Drilling Rig thumbnail-2
XYX-3 Wheeled Walking Water Well Drilling Rig thumbnail-3
XYX-3 Wheeled Walking Water Well Drilling Rig thumbnail-4

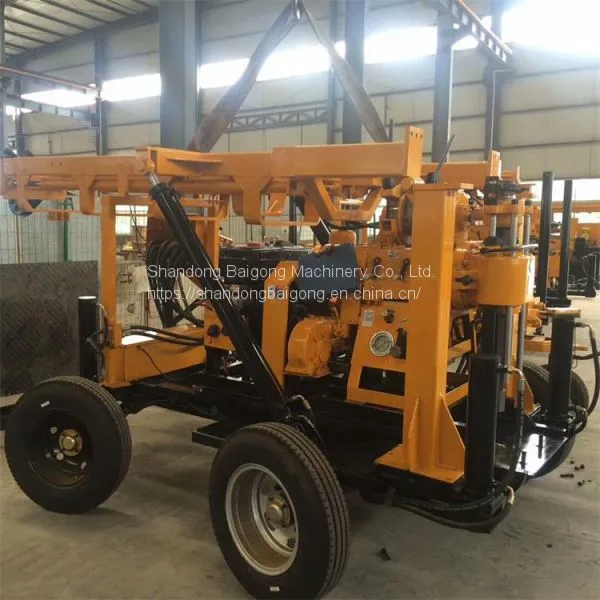

XYX-3 Wheeled Walking Water Well Drilling Rig photo-1

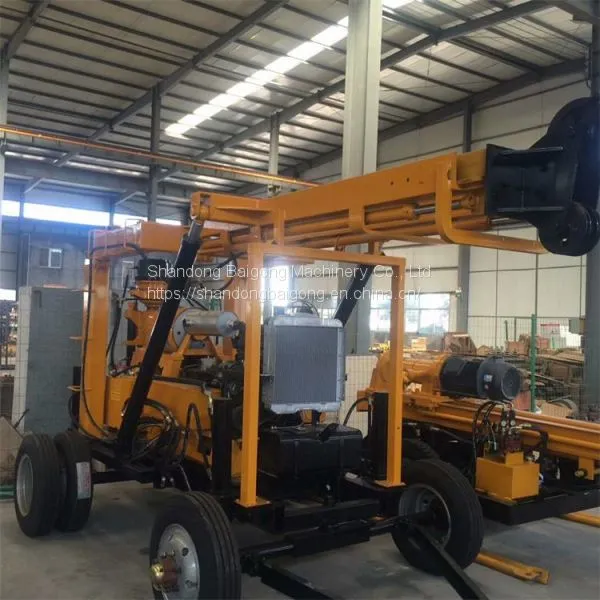

XYX-3 Wheeled Walking Water Well Drilling Rig photo-2

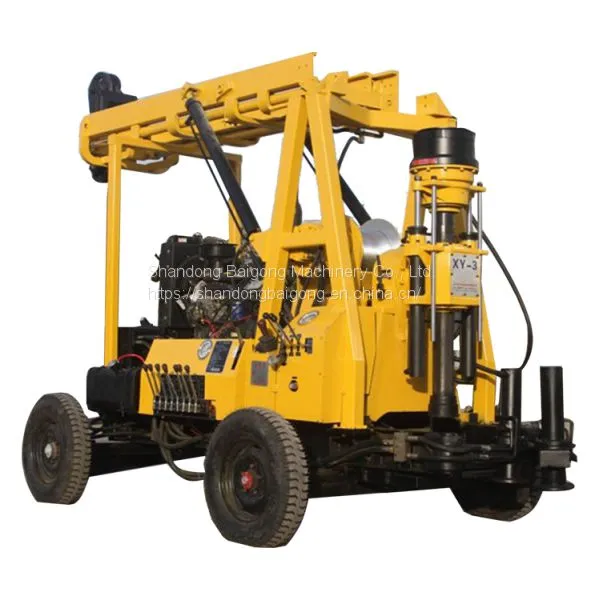

XYX-3 Wheeled Walking Water Well Drilling Rig photo-3

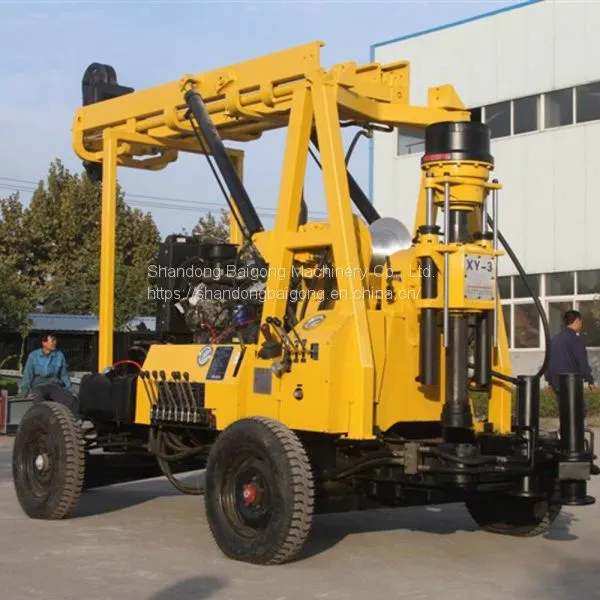

XYX-3 Wheeled Walking Water Well Drilling Rig photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Bafang
Place of Origin:
China
Model Number:
XYX-3
Contact Supplier Request Quote Chat Now
Shandong Baigong Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Bafang
Place of Origin China
Model Number XYX-3
Type Core Drilling Rig
After-sales Service Provided No overseas service provided
Power Type Other, Diesel &Electric
Usage Water Well
Condition New
Power(W) 22000W

The drilling machine is equipped with a wheeled traveling mechanism and a hydraulic cylinder support. The whole machine is easy to relocate, which is convenient for horizontal adjustment of the drilling machine. It has a hydraulic feeding mechanism to improve drilling efficiency. The drilling machine is equipped with a ball clamping mechanism instead of a chuck. It can implement non-stop reversing bar, high work efficiency, convenient and safe operation. It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for grasping the condition inside the hole. The lifting and falling towers are hydraulically operated, which is convenient and reliable. The joystick is concentrated, the layout is reasonable and compact, the operation is simple, flexible and reliable.

Machine parameters：

Drilling depth

100   250    300   600m

Drilling diameter

300    200    150    75mm

Opening diameter

300mm

Final hole diameter

75mm

Drill pipe

60mm

Drilling angle

90°--65°

Vertical axis forward speed

32-1057r/min

Vertical axis reversal speed

29-137r/min

Vertical axis travel

600mm

Vertical shaft bore diameter

96mm

Vertical shaft lifting capacity

60kN

Main winch parameter

Single rope lifting speed

0.5、0.9、1.4、1.9m/min

Wire rope diameter

12.5mm

Brake width

90mm

Roll diameter

300mm

Roll capacity

65m

Mud pump (optional) horizontal three-cylinder BW-250 mud pump:

flow

250L/min

Work pressure

7Mpa

Inlet diameter

76mm

Outlet diameter

51mm

Drilling machine dynamic parameters

diesel engine

YN27/power60kw/3200rpm

Motor

Y180L-4 22KW

Wheeled chassis carrying capacity

3.6T

Wheel chassis length

2.6m

Wheel chassis width

2m

Wheel chassis height

0.6M
