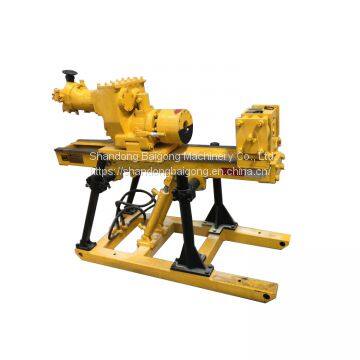

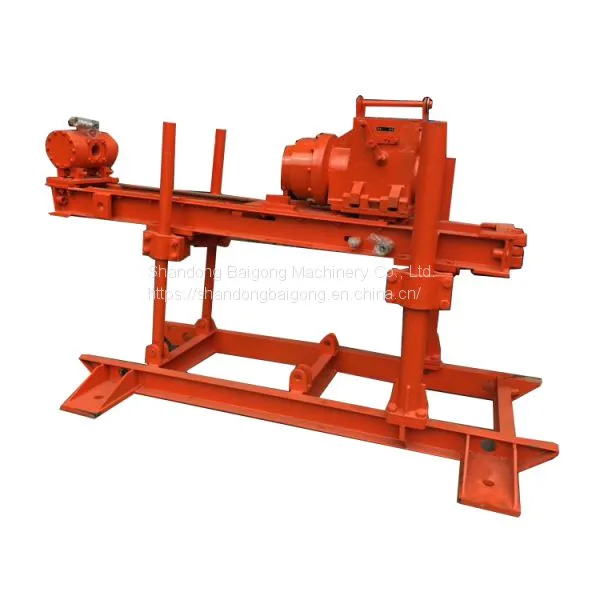

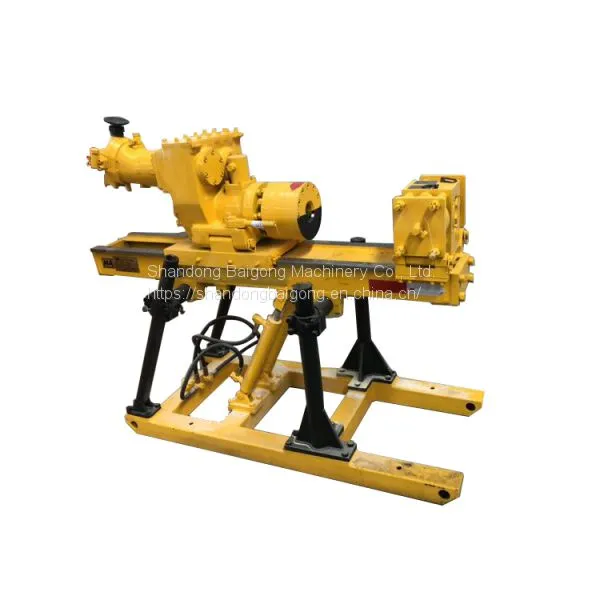

Help CenterZDY Coal Mine Full Hydraulic Tunnel Drilling Rig
Related Products
-
ZLJ Tunnel Drilling RigNegotiableMOQ: 1 Set -
ZYJ-400/130 Frame Column Type Hydraulic Rotary Drill RigNegotiableMOQ: 1 Set
-
The Crawler Type DTH Drilling RigNegotiableMOQ: 1 Set
-
The HZ-130 Core Drilling RigNegotiableMOQ: 1 Set
-
The QY200 Crawler Type Water Well Drilling RigNegotiableMOQ: 1 Set

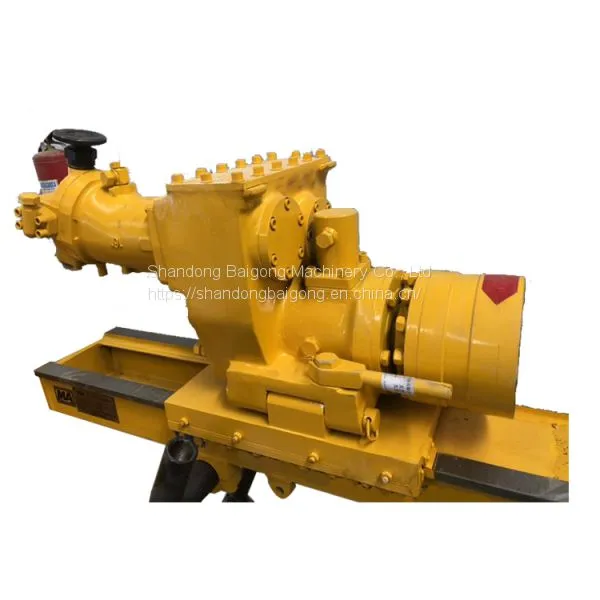

ZDY coal mine full hydraulic tunnel drilling rig is mainly used for coal mine gas drainage, coal seam water injection, geological exploration and other various engineering drilling, and can also be used for drilling underground construction. Applicable to various coal seams and rock layers with rock solidity coefficient f≤8. The roadway or drill field is required to have a sectional area of ≥6m2, a height of ≥2.4m and a width of ≥2.5m. The machine is a full hydraulic power head gear shifting rig capable of drilling all angles at any angle. The pump station adopts high-pressure double-gear pump, which has high durability and long service life; the power head adopts hydraulic quantitative motor, gear shifting, large torque and strong drilling ability; hydraulic chuck adopts disc spring clamping hydraulic release, clamping ability Strong, can effectively prevent the drill pipe from slipping; the clamp is hydraulically opened for the disc spring clamping, flexible use; the console uses single-function operation, fully mechanically disassembling the drill pipe, easy to operate and convenient to use.
The machine has stable performance, high work efficiency, safety and reliability; low damage rate, convenient maintenance, easy disassembly, installation, etc.
Item |
unit |
ZDY－650 |
ZDY－750 |
ZDY-1250 |
ZDY-1800 |
|
Drilling depth |
m |
150 |
150 |
200 |
250 |
|
Open diameter |
mm |
Ф65,Ф85,Ф115 |
Ф65,Ф85,Ф115 |
Ф85-115 |
Ф85-115 |
|
End diameter |
mm |
Ф65,Ф75 |
Ф65,Ф75 |
Ф65,Ф75 |
Ф65,Ф75 |
|
Drilling rod type |
mm |
Ф42.Ф50 |
Ф42.Ф50 |
Ф50 |
Ф50 |
|
Drilling hole angle |
º |
0~90 |
0~90 |
±90 |
±90 |
|
Drilling hole position angle |
º |
0~360 |
0~360 |
0~360 |
0~360 |
|
Output torque |
N.m |
650 |
750、300 |
1250/600 |
1800/700 |
|
Output speed |
r/min |
295 |
120、330 |
80/170 |
80/170 |
|
Hydraulic system working pressure |
MPa |
10.5 |
14 |
14 |
18 |
|
Propulsive force |
kN |
40 |
50 |
60 |
60 |
|
Lifting force |
kN |
25 |
30 |
45 |
50 |
|
Anchoring force |
kN |
80×2 |
80×2 |
80×4 |
80×4 |
|
Propulsion speed |
m/min |
0~1.5 |
0~1.5 |
0~1.5 |
0~1.5 |
|
Propulsion stroke |
mm |
850 |
850 |
850 |
850 |
|
Motor model |
YBK2-160L-4 |
YBK2-180M-4 |
YBK2-180L-4 |
YBK2-200L-4 |
||
Motor power |
kW |
15 |
18.5 |
20 |
30 |
|
Motor voltage |
V |
380/660 |
380/660 |
380/660 |
380/660 |
|
Fuel tank capacity |
L |
90 |
90 |
90 |
90 |
|
Working substance |
40＃ hydraulic fluid |
40＃ hydraulic fluid |
46＃antiwear hydraulic oil |
46＃antiwear hydraulic oil |
||
Machine size |
mm |
2107×380×355 |
2107×440×615 |
2260×1000×1400 |
2260×1000×1400 |
|
Pump station size |
mm |
1400×700×986 |
1400×700×986 |
1550×760×756 |
1550×760×756 |
|
Total weight |
Kg |
1200 |
1400 |
1600 |
1650 |
|
