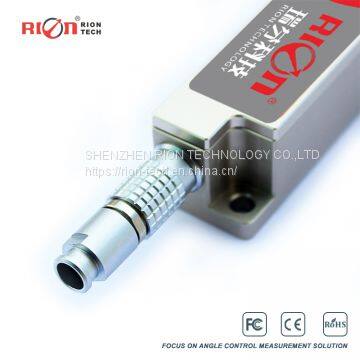

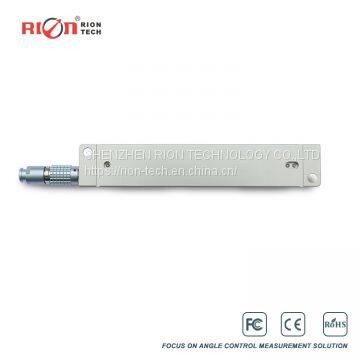

Help CenterHCM375B High Accuracy Digital Compass Sensor/electronic Compass/heading Position Sensor for Drill Measuring
Related Products
-
HCM508B High Accuracy Analog Current 4-20mA Output Signal Compass SensorUS$ 428 - 429MOQ: 1 Piece -
DCM302B High Accuracy 3d Digital Compass Sensor/electronic Compass/heading Position Sensor Rotation SensorUS$ 242 - 243MOQ: 1 Piece
-
DCM260B High Accuracy Digital Compass 3d Electronic Compass Module Industrial Heading Sensor/roll/pitch CompassUS$ 121 - 122MOQ: 1 Piece
-
DCM250B Low Cost 3D Digital Compass Industrial Sensor/position Sensor/roll/pitch Compass/Electric Board or EnclosedUS$ 95 - 105MOQ: 1 Piece
-
DCM250B 3D Digital Compass Electric BoardUS$ 95 - 110MOQ: 1 Piece
Brief Introduction
HCM370B-HCM375B is a high accuracy 3D digital compass of strip shape, its width is only 1.6cm, IP67 protection grade, suitable for many harsh environment such as drilling measurement. it adopts advanced hard iron and soft iron calibration algorithm, it can provide the high precision heading value output when both pitch and roll angle at any angle within 360°. it is small and low power consumption, suitable for current miniaturization sensitive measurement system. Sealed complete item and signal board are available.
HCM370B-HCM375B integrated patented three -axis flux-gate technology. It calculates heading value in real-time by CUP, and perform heading value compensation in wide tilt range by using three axis accelerometer. It is high performance and excellent stability militarily level compass sensor. Its volume is small, power consumption is low. It could widely used in many application such as antenna installation, vehicle and integrated system, and so on.
Main Feature
●heading accuracy: 0.3°～0.5° ●roll&pitch measuring range:±180°
●tilt resolution: 0.1° ●tilt accuracy:
●working temp.: -40℃～+85℃ ●size: L110×W19.5×H19.5mm
●with hard and soft magnetic calibration ●RS232/RS485/TTL output
Application :
●Satellite antenna search satellite ●Marine navigation surveying and mapping
●GPS integrated navigation ●Antenna servo control
●Gun emission system ●Infrared imager
●Laser range finder ●Map for plotter
●ROV underwater robot navigation ●Oceanography measurement instruments
●Special occasion robot ●Unmanned aircraft
Product parameters
HCM370B-HCM375B performance index | ||
Heading |
Heading accuracy |
0.5° tilt |
2.0° tilt>60° | ||
resolution |
0.1° |
|
Tilt |
pitch accuracy |
0.1°（measure range） |
0.1°（measure range） | ||
0.1°（measure range） | ||
0.2°（measure range） | ||
Pitch range |
±85° |
|
Roll accuracy |
0.1°（measure range） |
|
0.1°（measure range） | ||
0.1°（measure range） | ||
0.2°（measure range） | ||
Roll range |
±180° |
|
Resolution |
0.1° |
|
Calibration |
Hard magnetic calibration |
available |
soft magnetic calibration |
available |
|
Magnetic filed interference calibration method |
Rotate 360° horizontally; rotate 360° vertically |
|
Physical feature |
Size |
L110×W19.5×H19.5mm |
Weight |
20g |
|
RS-232/RS485/TTL |
5PIN quick plug connector |
|
Interface |
start delay |
mS |
Max output rate |
20Hz/s |
|
Communication rate |
2400 to 19200baud |
|
Output format |
Binary high performance protocol |
|
Power supply |
Power voltage |
（default）DC+5V |
Current(max) |
30mA |
|
Ideal current |
26mA |
|
Sleep mode |
TBD |
|
Environment |
Working temp. |
-40℃～+85℃ |
Storage temp. |
-40℃～+100℃ |
|
Anti-shock performance |
100g |
|
Protection level |
IP67 |
|
Electromagnetic compatibility |
According to EN61000and BT17626 |
|
MTBF |
≥40000 hour/time |
|
Insulation resistance |
≥100M.O. |
|

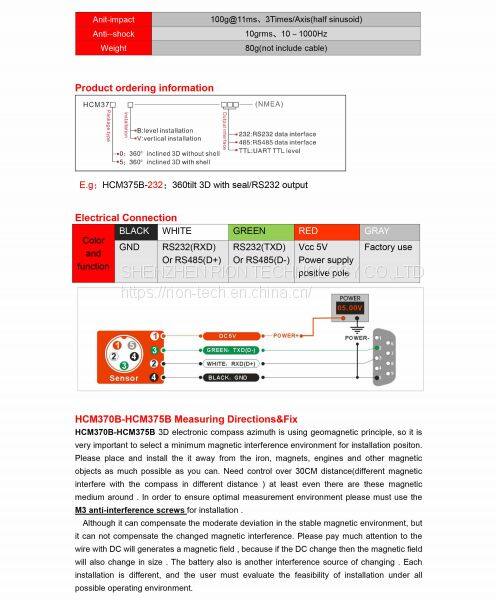

Anit-impact |
100g@11ms、3Times/Axis(half sinusoid) |
|
Anti--shock |
10grms、10～1000Hz |
|
Weight |
80g(not include cable) |
|
