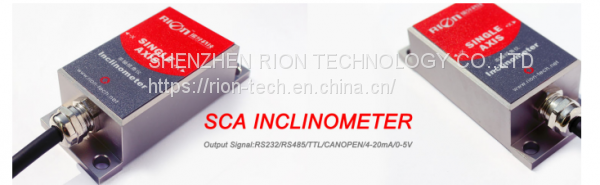

SCA141A Tilt Angle Switch Sensor Angle Exceed Alarm Relay Signal Output Angle Alarm Sensor

General Description

   SCA141A is a digital type dual-axis tilt switch developed by RION company who integrated Finland control core unit , and based on level security alarm and platform leveling detection related industries application , built-in relay output circuit . Users can set alarm angle value by themselves, it will output a no contact relay signals (drive current 1A)when exceeds the safety angle value, Open the electronic valve to control the corresponding hydraulic leg leveling .This product with design precision, again to compensate the temperature and linearity, integrated short-circuit, high-voltage transient, polarity and surge etc. full protection functions, suitable for a variety of harsh industrial environments operating. Using the industrial grade MCU, three-anti PCB, import cable, wide temperature metal enclosure and other measures etc. to improve the industry level on products reliability and stability.

Features:

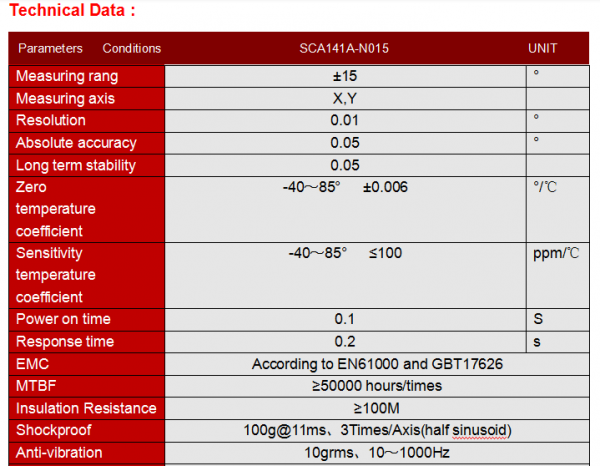

● Dual-axis tilt switch            ●Accuracy：please refer to the technical data

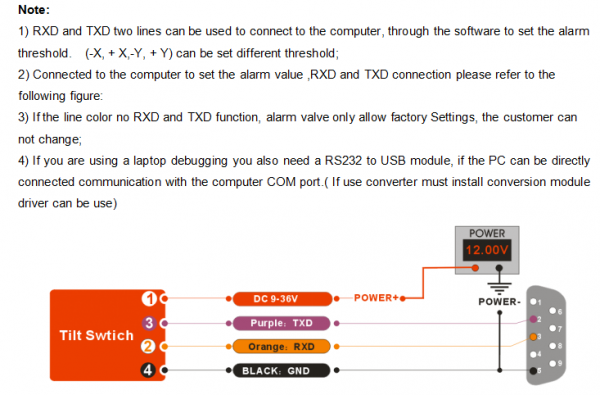

●RS232 series output   ● Switch output（high-low level)  ●Resolution : 0.01°

●Wide temperature working:  -40～+85℃                ●IP67 protection class

●Highly anti-vibration performance>2000g                ●Direct lead cable interface            ●Customer can set alarm angle value by himself           ● With Setting 0° function

● Positive/negative direction output is optional             ●DC 9～36V wide voltage input

Application:

●Engineering mechanical vehicles                       ●Rail-mobile monitoring

●Radar detection of vehicle platform                     ●Underground drill posture navigation

●Based on the angle direction measurement              ●Shield pipe jacking application

●Ship’s navigation posture measurement

 ●Geological equipment inclined monitoring     ●Various engineering mechanical measurement of dip angle

●The intelligent excavator / crane / cranes / pile driver / drill machine / special vehicles / mine car / track car / fire truck / aerial vehicles / bridge machine
