HCA526T Inclinometer/tilt Sensor Dual Axis Digital Rs232/rs485 High Accuracy

General Description

HCA526T is a high accuracy dual -axis inclinometer launched by RION company, inherit the stability of the SCA series, while the accuracy be effectively improved, and the temperature drift performance with much more excellence , in addition the system with built-in high-precision 16bit A / D differential converter, meanwhile through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485, RS232, RS422, TTL, or CAN 2.0B are optional. Because of Built in ADI company’s high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor(temperature output are optional), to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response most up to 100Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability. Suitable for a variety of harsh industrial control environment.

Features:

●Dual-Axis Inclinometer

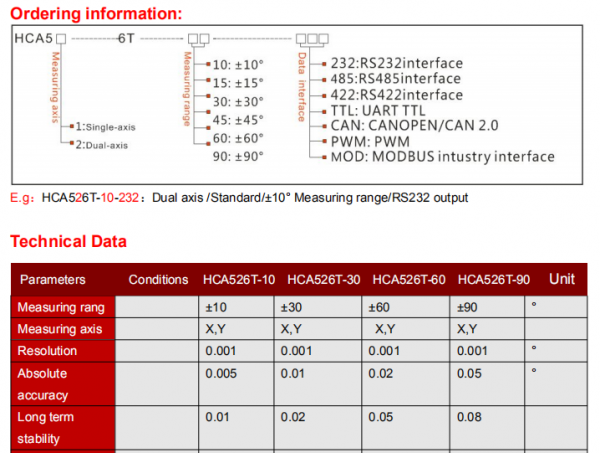

●Measuring Range :±1～±90° optional

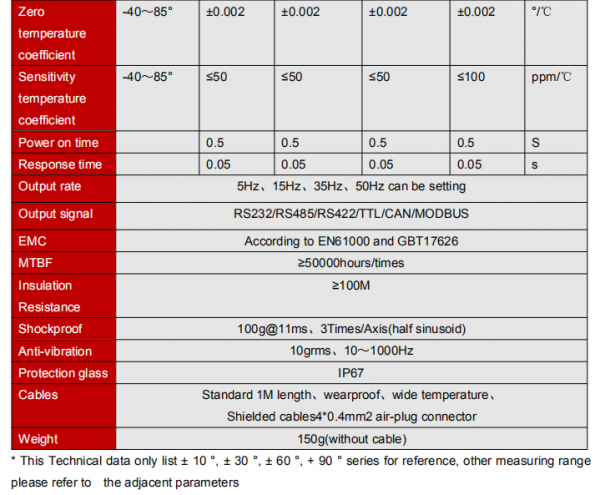

●Accuracy refer to the technical data

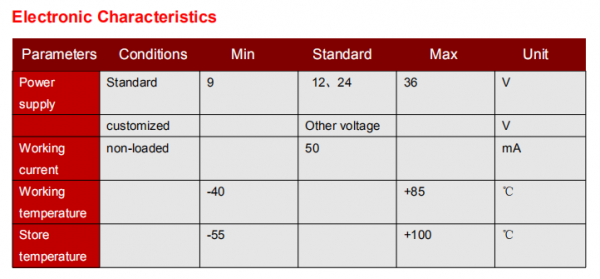

●Wide voltage input: 9～36V

●Wide temperature working: -40～+85℃

●Resolution: 0.001°

●IP67 protection class

●Highly anti-vibration performance >2000g

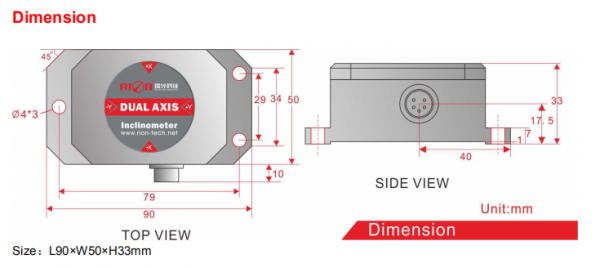

●Small size :90×50×33mm（customized）

● Water-proof air-plug connector

Application:

●Satellite positioning Search

●Rail-mobile monitoring

●engineering mechanical measurement of dip angle

●oil-well drilling equipment

●Radar detection of vehicle platform

●Underground drill posture navigation

●Gun Barrel angle measurement in early shooting

●Based on the angle direction measurement

●Satellite communications vehicle posture detection

●Shield pipe jacking application

●Ship’s navigation posture measurement

●Geological equipment inclined monitoring
