HCA528T Inclinometer/tilt Sensor High Accuracy Current Signal 4-20mA Output Angle Sensor Tilt Angle Monitor

General Description

HCA518T is a high accuracy single-axis inclinometer, output adopt the standard industry electronic interface 4 ~ 20mA, can be long-distance transmission of up to 2000 meters. The product uses the latest MEMS high technology for production, made precise compensation and correction to temperature error and nonlinearity error, small measuring range the highest accurate up to 0.003 ° (bigger measuring range index, please refer to product technical data),

  HCA518T inclinometer use the dynamic zero test compensation technology to ensure product Quick Launch, high resolution ,stable data, good capacity to bear shock & vibration, built-in anti-RF, adopts anti-electromagnetic interference circuit to ensure that the output signal to a higher anti-interference ,in addition to this product is better than the similar market product on software technical data, on the reliability and stability the product is also using the high-end application-level MCU,three-proofing PCB board, imported cable, wide temperature shielded metal enclosure and other measures to improve product industrial level,to ensure the product can be long-term & safety extraordinary operation in harsh environments.

Features:

●Single-Axis Inclinometer

●Measuring Range :±1～±90° optional

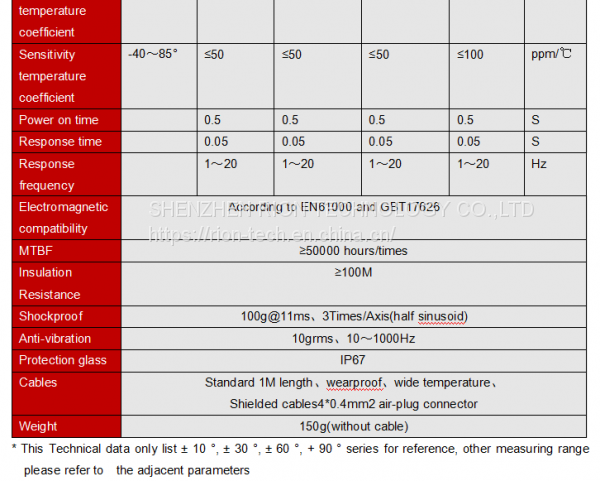

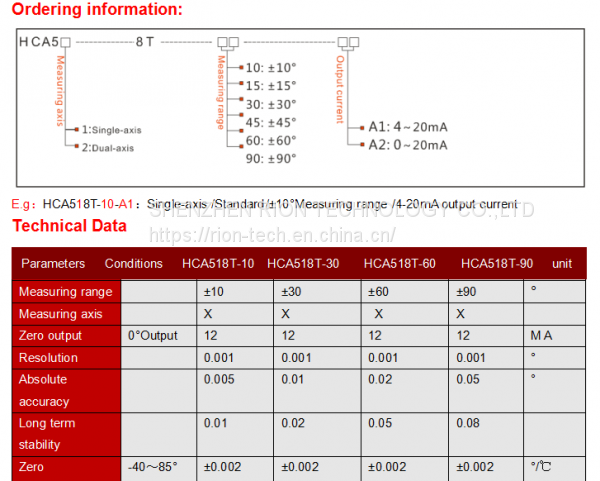

●Accuracy: refer to the technical data

●Wide voltage input: 9～36V

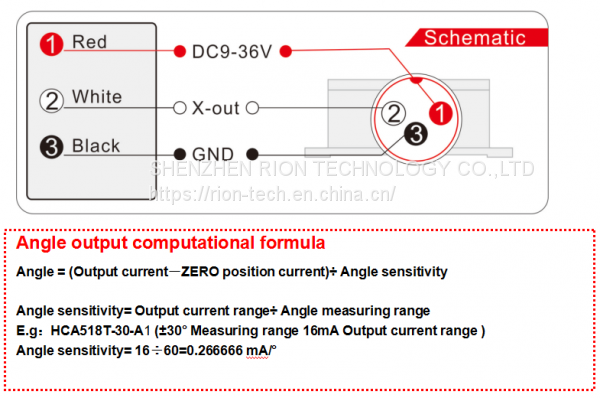

●Output interface : 4-20mA

●Wide temperature working: -40～+85℃

●IP67 protection class

●Highly anti-vibration performance >2000g

●Resolution: 0.001°

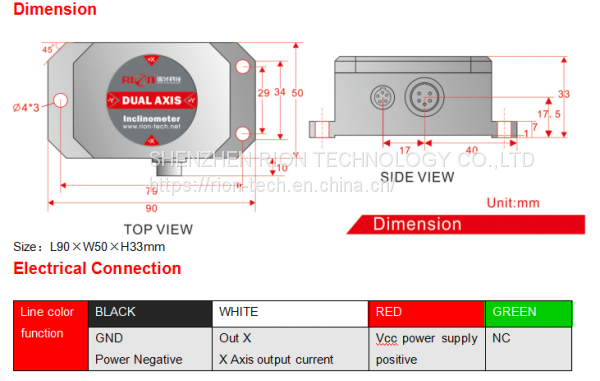

●Small Volume : 90×50×33mm（customized）

Application:

 ●Engineering vehicles automatic leveling

●Bridge & dam detection

●Aerial platform vehicle,lifter safety & protection

●Medical facilities angle control

●Underground drill posture navigation

● Railway gauging rule , gauge equipment leveling

●Mining machinary, oil-well drilling equipment

●Geological equipment inclined monitoring

●Directional satellite communications antenna pitching angle measurement
