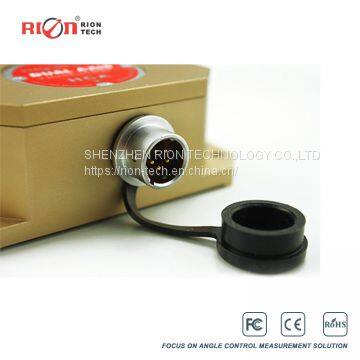

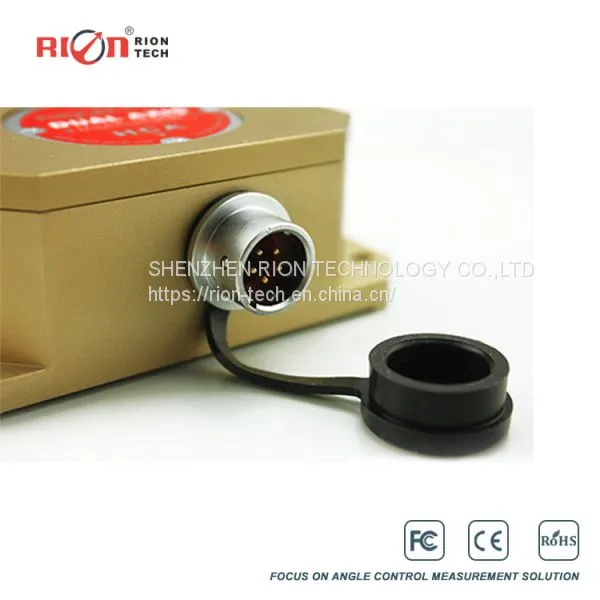

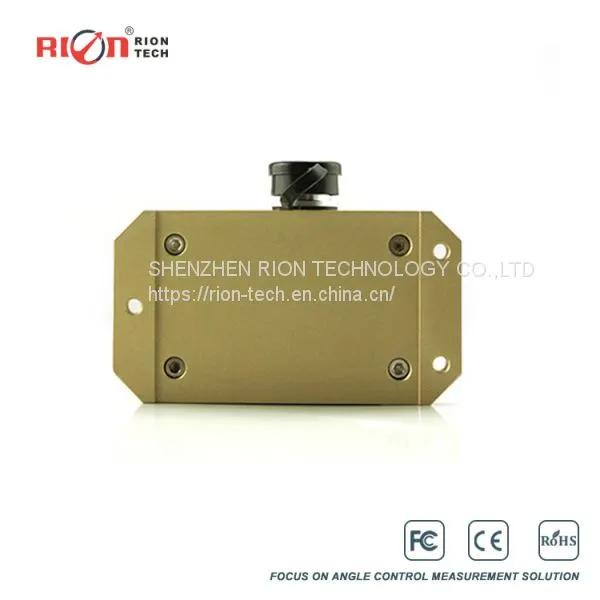

HCA520T INCLINOMETER TILT SENSOR-high accuracy dual-axis voltage signal 0-5v output angle sensor tilt angle monitor

General Description

 HCA520T is a high accuracy dual axis inclinometer with analog voltage output,small measuring range and the highest precision up to 0.003 °, it is one of the few high-precision inclinometers in mainland. It is mainly used to measure the inclination of the object with respect to the horizontal plane , built-in micro solid pendulum ,by measuring the static gravity field changes then convert into inclination change, the changes in mode output voltage (0-5V).The internal use high-resolution differential digital-to-analog converter, by the internal MCU system secondary linearity and temperature correction, the customer no need to do a secondary linearity correction, meanwhile also reducing the error caused by environmental changes on the accuracy of the product.

This product uses non-contact measurement principle, can real-time output current posture inclination，Simple to use, and no need to retrieve the relative changed surface to install.Latest MEMS higher technology production, high-precision, small size, strong resistance to external electromagnetic interference ability, the ability to withstand shock and vibration. It is the ideal choice for industrial equipment, platform measuring attitude!

Features:

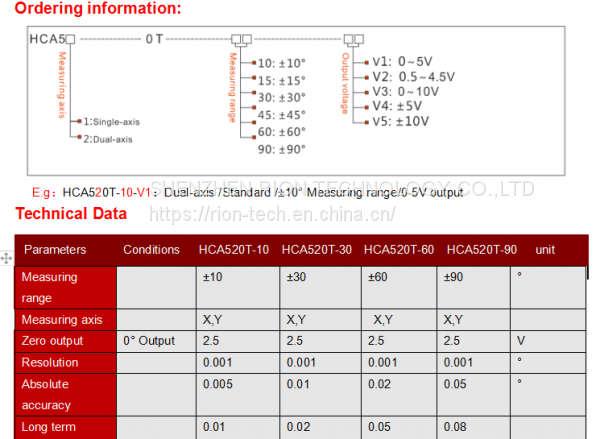

●Dual-Axis Inclinometer                    ●Measuring Range :±1～±90° optional

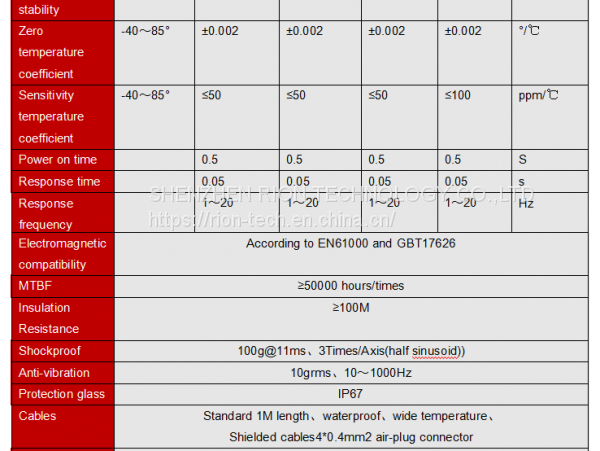

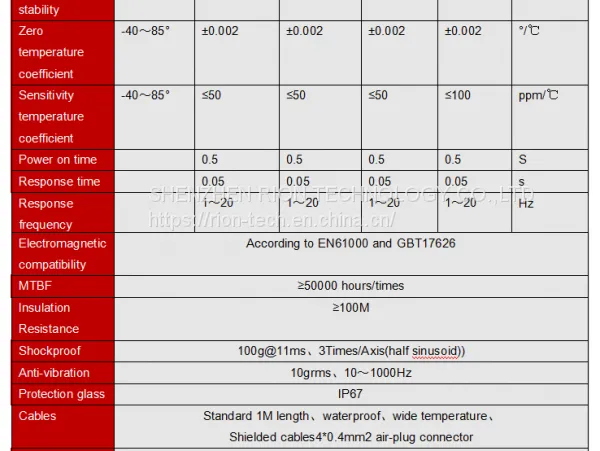

●Accuracy: refer to the technical data        ●Wide voltage input: 9～36V

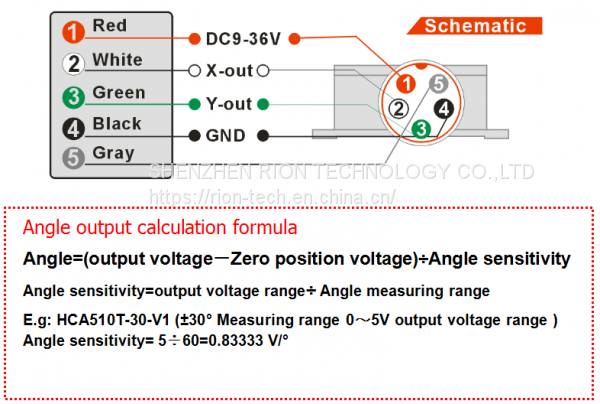

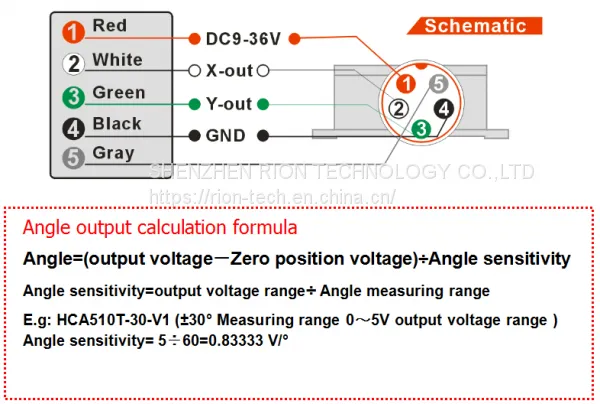

●Output interface :0～5V                   ●Wide temperature working: -40～+85℃

●IP67 protection class                     ●Highly anti-vibration performance >2000g

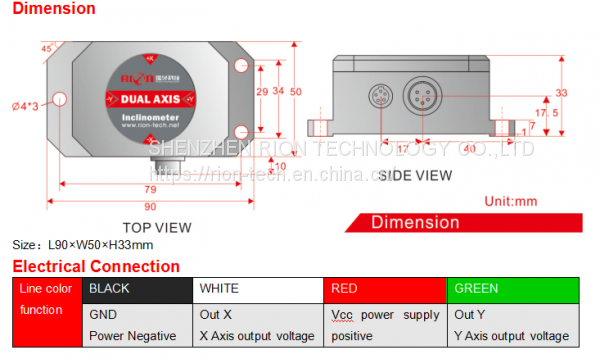

●High Resolution: 0.001°                   ●Small Volume : L90mm×W50mm×H33mm（customized）

Application:

 ●Engineering vehicles automatic leveling

●Bridge & dam detection

●Aerial platform vehicle,lifter safety & protection

●Medical facilities angle control

●Underground drill posture navigation

● Railway gauging rule , gauge equipment leveling

●Mining machinary, oil-well drilling equipment

●Geological equipment inclined monitoring

●Directional satellite communications antenna pitching angle measurement
