GML657 IP67 Miniature Flat Membrane Box Load Cell
The sensor adopt flat diaphragm pressure, casing and diaphragm as a body structure, small volume, stress area is large.
Performance is stable and reliable, suitable for all kinds of load weighing industrial automation measurement system.

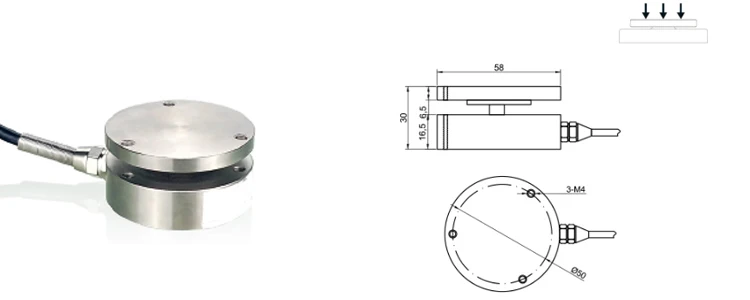

Dimension of GML657 miniature load cell ?
What specifications of GML657 miniature load cell ?
Specifications | |
Rated Capacity |
50, 100, 200, 300, 500kg, 1, 2, 3, 5t |
Comprehensive error |
≤±0.3% |
Rated output |
1.2±5%mV/V |
Zero balance |
±1.0F.S |
Non-linearity |
0.2% |
Creep |
±0.1%F.S/30min |
Input resistance |
350±50Ω |
Output resistance |
350±5Ω |
Insulation resistance |
≥2000MΩ/100VDC |
Temp. effect on span |
±0.1%F.S/10℃ |
Temp. effect on zero |
±0.1%F.S/10℃ |
Compensated temp range |
-10~+60℃ |
Operating temp Range |
-20~+80℃ |
Excitation voltage |
10~15V |
Safe overload |
150%F.S |
Ultimate overload |
200%F.S |
Defend grade |
IP67 |
