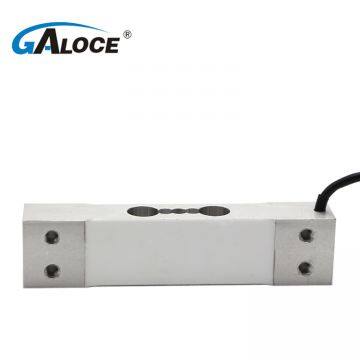

GPB100 Beehive SMS weighing scale load cell 100kg
Related Recommend：
Product Description:
Features:
1. Made of aluminum alloy
2. Suitable for electronic scale and other weighing equipment with small platform
3. Recommend max platform: 250×350mm
Specifications：
Datas | |
Range (KG): 3, 5, 6, 10, 15, 20, 30, 40, 50, 60, 100, 120 | |
Accuracy: C2/C3 | Temp. effect on span (%F.S/10℃): ±0.02/± 0.014 |
Comprehensive error(%F.S): ±0.02/±0.017 | Temp. effect on zero (%F.S/10℃): ±0.03/±0.017 |
Rated output (mV/ V): 2.0±0.2 | Compensated temp. range (℃): -10~+40 |
Creep (%F.S/30min): ±0.02/±0.017 | Operation temp. range (℃): -20~+60 |
Zero balance (%F.S): ±1.0 | Excitation voltage (V): 9-12(DC) |
Input resistance (Ω): 405±10 | Safe overload (%F.S): 120 |
Output resistance (Ω): 350±3 | Ultimate overload (%F.S): 150 |
Insulation resistance (MΩ): ≥5000(100VDC) | Ingress protection: IP65 |
Details：
Load Instruction
Dimension:
Wiring Schematic Diagram
Applications:
FAQ:
Q: What are the applications of single point load cell/parallel beam load cell?
A: Platform scale, package scale, animal scale, sorting machine, beehive scale, etc.
Q:What is the raw material?
A: Aluminum alloy
Q: What is the accuracy/precision?
A: C2 0.03% and C3 0.02%
Q: What is the wire meaning?
A: 5 wires (Red: E+, Black: E-, Green: S+, White: S-, Other color: ground)
Q: How to install?
A: One side are fixed and the other side are forced.
Q: What is the load range for single point load cell?
A: 0.1-1000KG
How to produce Load Cell Sensor?
