1. Stainless Steel;
2. Low profile, compact and strong structure;
3. Tension & compression force measurement;
4. Mainly used in automobile production, medical equipment, robots, automation equipment and so on. For example: button feel detection, hot and cold press pressure detection, robot hand grip force measurement, etc.

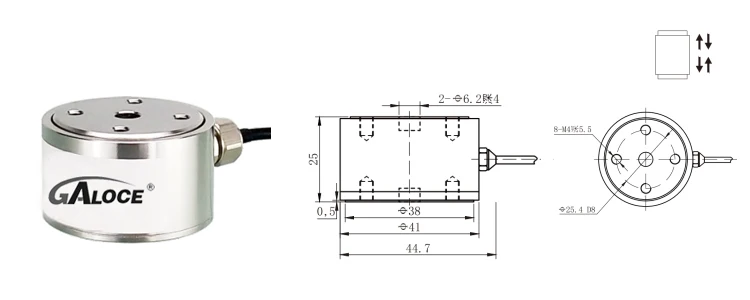

Dimension of GML676 miniature load cell ?
What specifications of GML67 miniature load cell ?
Specifications | |
Rated Capacity | 1, 2, 3, 5, 10, 20, 30KN |
Comprehensive error | ≤±0.1% |
Rated output | 2.0±10%mV/V |
Zero balance | ±2%F.S |
Non-linearity | 0.1% |
Creep | ±0.1%F.S/30min |
Input resistance | 385±5Ω |
Output resistance | 350±3Ω |
Insulation resistance | ≥5000MΩ/100VDC |
Temp. effect on span | ±0.05%F.S/10℃ |
Temp. effect on zero | ±0.05%F.S/10℃ |
Compensated temp range | -10~+60℃ |
Operating temp Range | -20~+80℃ |
Excitation voltage | 5~15V |
Safe overload | 150%F.S |
Ultimate overload | 300%F.S |
Defend grade | IP66 |
