GML664 Subminiature Button Type Compression Force Load Cell
1. Stainless Steel;
2. Low profile and compact structure;
3. It is suitable for a variety of small space force measurement, are widely used in measurement control in industrial, research and development fields.

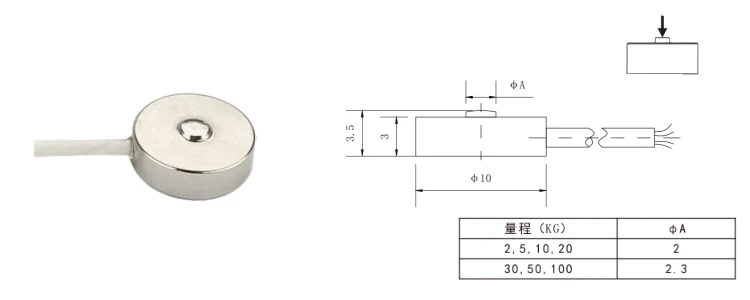

Dimension of GML664 miniature load cell ?
What specifications of GML658 miniature load cell ?
Specifications | |
Rated Capacity | 5, 10, 20, 50, 100kg |
Comprehensive error | ≤±1% |
Rated output | 2.0±10%mV/V |
Zero balance | ±0.2F.S |
Non-linearity | 1% |
Creep | ±1%F.S/30min |
Input resistance | 800~1100Ω |
Output resistance | 800~1100Ω |
Insulation resistance | ≥5000MΩ/100VDC |
Temp. effect on span | ±0.5%F.S/10℃ |
Temp. effect on zero | ±0.5%F.S/10℃ |
Compensated temp range | -10~+60℃ |
Operating temp Range | -20~+80℃ |
Excitation voltage | 5~10V |
Safe overload | 120%F.S |
Ultimate overload | 150%F.S |
Defend grade | IP66 |
