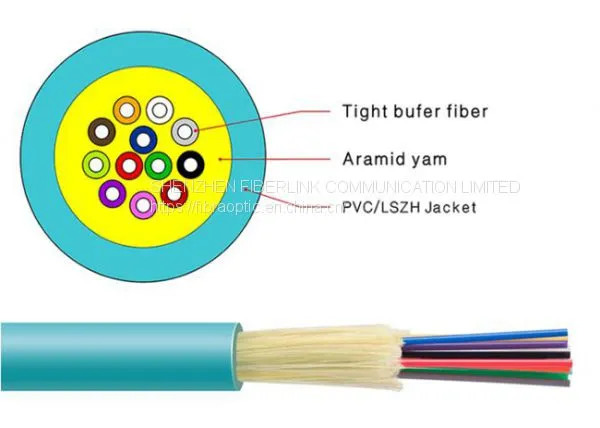

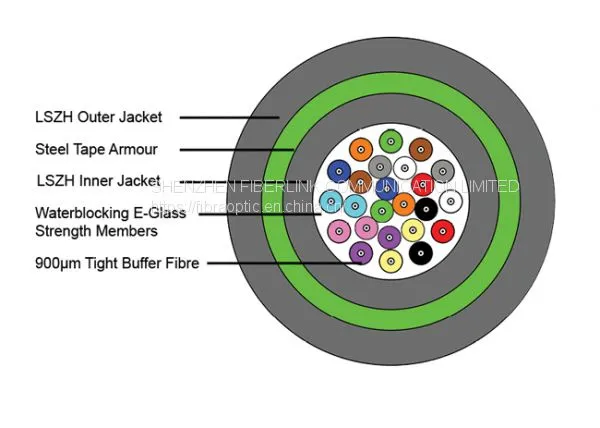

The tight buffered fibers which are sheathed with special buffer material to protect the fiber are stranded around the FRP(Fiber reinforced plastic),then, a layer of Aramid yarn is applied as a strength member,the cable is copleted with PVC jacket.(02-12 fiber, Stranded structure, FRP Strength member,1-fiber subunit(Φ900μm Tight buffer, Aramid yarn),PVC jacket.
Features
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards
The mechanical characteristics of jacked meet the requirements of relevant standards
Soft, flexible, easy to lay and splice, and with big capacity data transmission
Meet various requirements of market and clients.
LSZH sheath (GJFJH)/PVC sheath (GJFJV)
Applications
Used in pigtails and patch cords
Used as interconnect lines of equipment, and used in optical connections in optical communication rooms and optical distribution frames
Used in indoor cabling, especially used as distribution cable
Specifications
| Technical Parameters: | ||||||||||
| Cable Count | Outside Diameter |
Tight buffer Diameter |
Weight | Mini allowable Tensile Strength (N) |
Mini allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) | Storage temperature |
|||
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 04 | 4.0 | 0.9 | 22.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 06 | 5.0 | 0.9 | 23.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 08 | 5.5 | 0.9 | 27.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 10 | 5.5 | 0.9 | 30.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 12 | 6.0 | 0.9 | 35.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
| 24 | 8.0 | 0.9 | 48.00 | 600 | 200 | 1000 | 200 | 20D | 10D | -20+60 |
Fiber Characteristic
| Fiber style | Unit | SM G652D | SM G655 | MM 50/125 | MM 62.5/125 | MM OM3-150 |
||
| Wavelength | nm | 1310/1550 | 1550/1625 | 850/1300 | 850/1300 | 850/1300 | ||
| attenuation | dB/km | ≤0.34/0.21 | 0.22/0.26 | ≤3.0/1.0 | ≤3.0/1.0 | ≤3.0/1.0 | ||
| Dispersion | 1550nm | Ps/(nm*km) | ≤18 | 2.0-6.0 | ..... | Dispersion | ||
| 1625nm | Ps/(nm*km) | ≤22 | 4.5-11.2 | ..... | ||||
| Bandwidth | 850nm | MHZ. KM | ..... | ..... | ≧400 | Bandwidth | ||
| 1300nm | MHZ. KM | ..... | ..... | ≧800 | ||||
| Zero dispersion wavelength | nm | ≧1302,≤1322 | ≤1420 | ..... | ..... | ≧ 1295, ≤1320 |
||
| Zero dispersion slope | nm | ≤0.091 | ≤0.06 | ..... | ..... | ---- | ||
| PMD Maximum Individual Fiber | ≤0.2 | ≤0.2 | ..... | ..... | ≤0.11 | |||
| PMD Design Link Value | Ps(nm2*km) | ≤0.08 | ≤0.08 | ..... | ..... | ---- | ||
| Fiber cutoff wavelength λc | nm | ≧1180,≤1330 | ..... | ..... | ..... | ---- | ||
| Cable cutoff wavelength λcc | nm | ≤1260 | ≤1450 | ..... | ..... | ---- | ||
| MFD | 1310nm | um | 9.2±0.4 | 9.2±0.4 | ..... | ---- | ---- | |
| 1550nm | um | 10.4±0.8 | 9.6±0.5 | ..... | ---- | ---- | ||
| Numerical Aperture(NA) | ...... | 0.200±0.015 | 0.275±0.015 | 0.200+/-0 .015 |
||||
| Step(mean of bidirectional measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ||
| Irregularities over fiber length and point discontinuity | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | ||
| Difference back scatter coefficient | dB/km | ≤0.03 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | ||
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | ....... | ....... | |||
| Core diameter | um | ...... | ...... | 50±1.0 | 62.5±2.5 | 50±1.0 | ||
| Cladding diameter | um | 125.0±1.0 | 124.8±0.7 | 125.0±1.0 | 125.0±1.0 | 125.0±1.0 | ||
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ||
| Coating diameter | um | 242±7 | 245±7 | 242±7 | 242±7 | 242±7 | ||
| Coating/chaffinch concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ||
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ||
| Core/cladding concentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | ||
| Curl(radius) | um | ≧4 | ≧4 | ..... | ..... | ..... |
||
