Help CenterNon-metallic Central Loose Outdoor Fiber Cable GYFXY
Related Products
-
Uni-tube Central Loose Fiber Cable GYXTWNegotiableMOQ: 10 Meters -
Double Sheath Loose Tube Outdoor Optical Fiber Cable (GYFTY)NegotiableMOQ: 10 Pieces
-
Outdoor Figure 8 Flat Drop Cable (GJYXFCH)-1,2,4,6 FibersNegotiableMOQ: 10 Pieces
-
Double Sheath Loose Tube Outdoor Optical Fiber Cable (GYFTY-PKP)NegotiableMOQ: 10 Pieces
-
Unitube Light-armored Cable(GYXTW)NegotiableMOQ: 10 Pieces
GYFXY fiber optic cable is a non-metallic uni-tube structure cable ensuring light weight, small diameter. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.The cable is completed with a polyethylene (PE) sheath.
Features
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Good crush ability and soft
PE sheath protects cable from ultraviolet radiation
Two parallel FRP ensure tensile strength
Small diameter, light weight and friendly installation
Long delivery length
Fiber Allocation Scheme
| Fiber number | Tube number | Fiber per tube | Fiber type |
| 2-24 | 1 | 2-24F/Tube | OS1, OS2, OM1, OM2, OM3,OM4 |

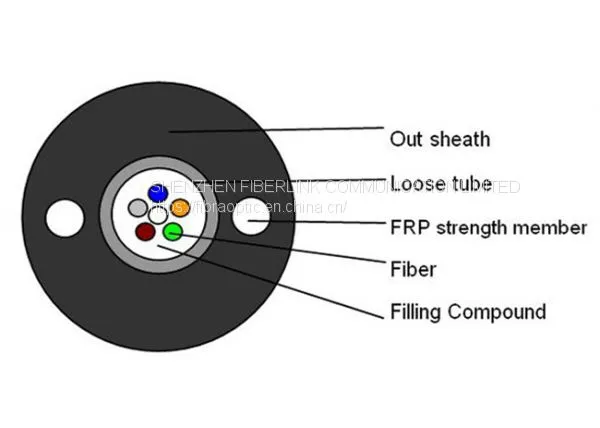

Cable construction details
| Items | Description | |
| Number of fiber | 2-24cores | |
| Outer cable diameter | 7.2mm±0.2mm | |
| Moisture Barrier | Water blocking tape | |
| Loose tube | material | PBT |
| diameter | Ф2.2(outer/inner) | |
| Tube-filling | material | Tube filling compound |
| Strength member | material | FRP |
| quantity | 2 pcs | |
| Outer sheath | material | PE |
| diameter | 1.8±0.2mm | |
Applications
Adopted to Outdoor distribution.
Adopted to trunk power transmission system.
Access network and Local network.
Standard color of fiber and tube
The color code of the fibers shall be in accordance with the table as below:
| Standard Color Identification According to EIA/TIA 598B | ||||||
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Cable Mechanical characteristic
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
