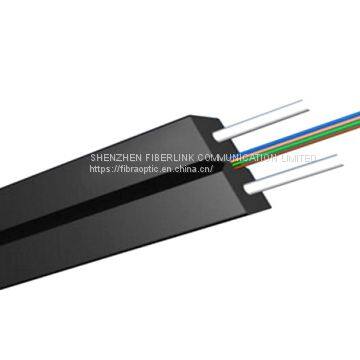

Indoor FTTH Flat Drop Cable is is a good design that has high tensile strength and flexibility in a compact cable size, which used for FTTH project solution. The optical fiber unit id positioned in the center. Two parallel strength member are placed at the two sides, then the cable is completed with black LSZH sheath.
Features
Suitable for limited space field of the branch, indoor series;
Laid to facilitate construction operations;
Jacket use low smoke, halogen-free flame-retardant materials;
Prevent lightning and strong electric environment;
FRP strengthen the component materials.
Applications
Building to building connecting;
Outdoor / Indoor fiber to the home, support broadband network, CATV, telephone;
Make pigtails, movable patch cord ., easy to reach 100M and increase more users.
Specifications
| Drop Cable Type | GJXFH-12B6 | |||
| No.of Fibers | 12 Fibers | |||
| Gross weight | 16.2kg/km | |||
SM fiber |
Fiber type | G657A1, A2 | Concentricity error | |
| Cladding diameter | 124.8±0.7um | Cladding non-circularity | ||
| Coating diameter | 245±5um | Fiber color | standard spectrum | |
| Strength member | Material | FRP | Color | white |
| Diameter | 0.5mm | Qty | 2 | |
| Out sheath | Material | LSZH | Color | Black / White Optional |
| Diameter | 2.8*3.8mm | Thickness | ≧0.5mm |
|
