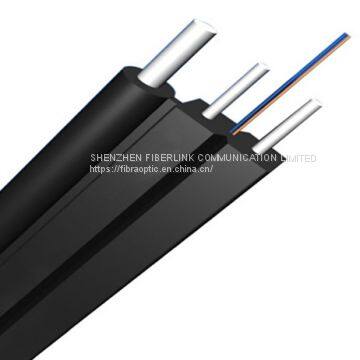

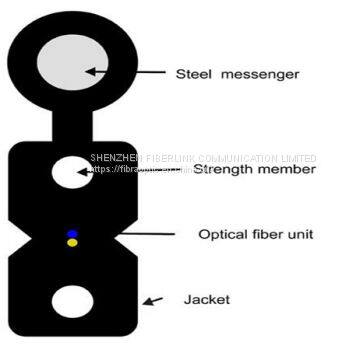

Outdoor Figure 8 Flat Drop cable is a cable designed specifically for FTTH project. It adopts double reinforcement figure 8 structure, the optical fiber unit is positioned in the center, two parallel fiber reinforced steel wire are placed at two sides, then the cable is completed with a black or white color LSZH Sheath. This drop cable can directly drop into the building household from the fiber optic splice closure.
Features
Suitable for limited space field of the branch, indoor series;
Laid to facilitate construction operations;
Jacket use low smoke, halogen-free flame-retardant materials;
Prevent lightning and strong electric environment;
FRP strengthen the component materials.
Applications
Used in access network oras access cable from outdoorto indoor
in customer premises network.
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
Specifications
| Drop Cable Type | GJYXFCH-1B6/2B6/4B6/6B6 | |||
| No.of fiber | 1F-4F | |||
|
SM fiber |
Fiber type | G657A1 or A2 | Concentricity error | ≤0.5um |
| Cladding diameter | 124.8±0.7um | Cladding non-circularity | ≤0.7% | |
| Coating diameter | 245±5um | Fiber color | standard spectrum | |
| Central strength member | Material | FRP | Color | white |
| Diameter | 0.5mm | Qty | 2 | |
| Self support messenger wire | Material | bright steel wire or FRP | Diameter | 1.0mm |
| Out sheath | Material | LSZH | Color | black |
| Diameter | 2.0*5.2mm (1-2F) 2.0*5.4mm (4, 6F) |
Thickness | ≧0.5mm | |
