Help CenterUnitube Light-armored Cable(GYXTW)
Related Products
-
Non-metallic Central Loose Outdoor Fiber Cable GYFXYNegotiableMOQ: 10 Meters -
Uni-tube Central Loose Fiber Cable GYXTWNegotiableMOQ: 10 Meters
-
Double Sheath Loose Tube Outdoor Optical Fiber Cable (GYFTY)NegotiableMOQ: 10 Pieces
-
Outdoor Figure 8 Flat Drop Cable (GJYXFCH)-1,2,4,6 FibersNegotiableMOQ: 10 Pieces
-
Double Sheath Loose Tube Outdoor Optical Fiber Cable (GYFTY-PKP)NegotiableMOQ: 10 Pieces

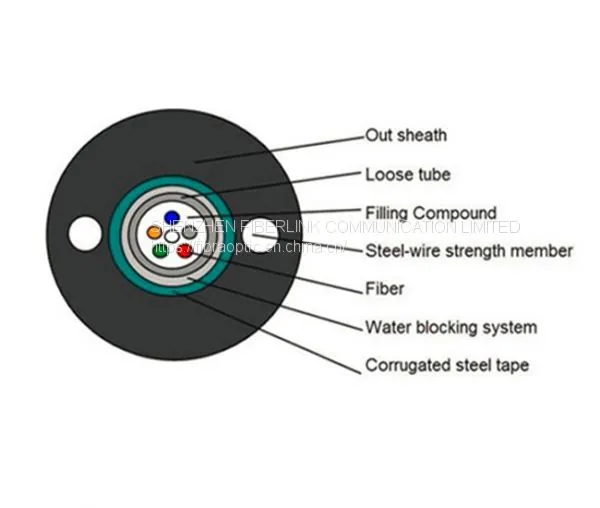

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
Two parallel steel wires ensure tensile strength
Small diameter, light weight and friendly installation
Applications
Suitable for ducts & aerial fiber optic cable
Local area network system
Long distance communication system
Specifications
Fiber Allocation Scheme
| Fiber number | Tube number | Fiber per tube | Fiber type |
| 2-24 | 1 | 2-24 F/Tube | OS1,OS2,OM1,OM2,OM3,OM4 |
Cable construction details
| Items | Description | |
| Number of fiber | 2-24 cores | |
| Moisture Barrier | Water blocking system | |
| Steel wire | Number | 2 |
| diameter | 0.8 mm | |
| Loose tube | material | PBT |
| diameter | Ф2.2mm(outer/inner) | |
| Tube-filling | material | Tube filling compound |
| Outer sheath | material | PE,LSZH( can be required) |
| color | Black (can be required) | |
