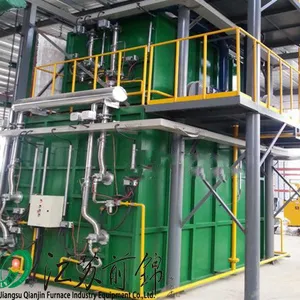

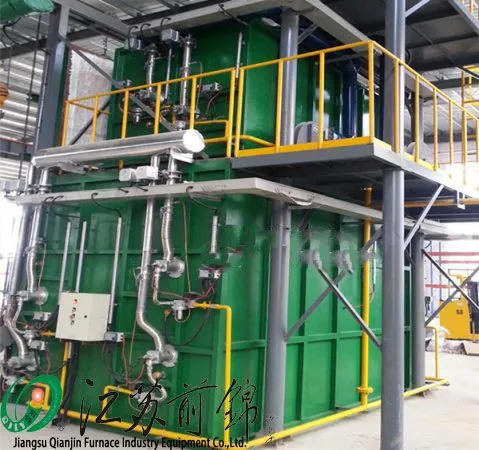

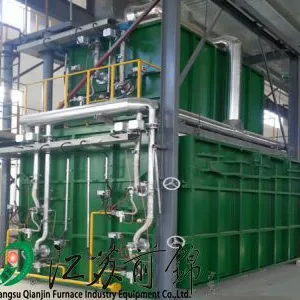

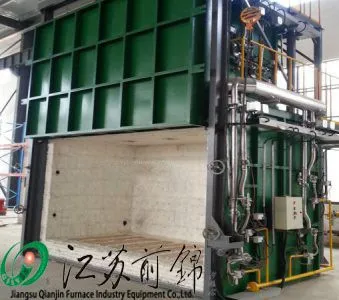

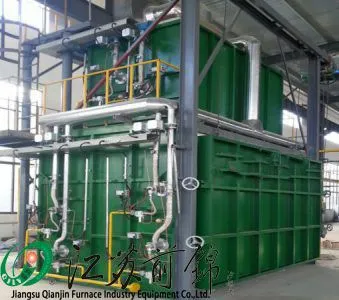

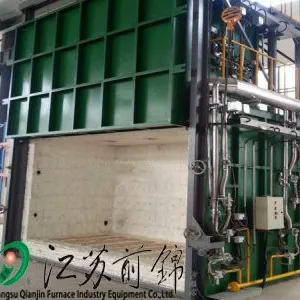

Foam ceramic shuttle kiln

Jiangsu Qianjincompany in China can supply 16M³ foamed ceramic shuttle kiln , the price can be discounted .

Other parameters of the kiln:

1.Quantity of burners : 12 pieces (High speed and energy saving)

2.Rated temperature：1300℃

3.Operating temperature：1200℃

4.Calcined product: ceramic filtration plate, SiC filtration plate

5.Mode of heating : natural gas or liquefied gas

6.Control mode：automatic control and computer operation

7.Sintering atmosphere: oxidizing atmosphere,reducing atmosphere

8.Rate of temperature increase:200℃/h

9.The form of furnace door: electric up and down

10.Flue gas exhausting method:   upward exhaust fume

11.The structure of furnace wall:high purity fiber cotton

12.The construction of furnace top: flat roof and furnace wall have the same structure.

13.The structure of furnace door:use all-fiber module, fix with metal framework externally.

14.The quantity of furnace car:  N/A

15.The manufacture cost of equipment : 700,000 (including environmental protection material room of secondary combustion)

16.Surface temperature:it is not greater than 50℃ on the top and not greater than 40℃ laterally which comply with the requirements of national standard .
