Home > Products > shuttle kiln > Shuttle kiln for electric ceramic Shuttle kiln for grinding wheel and abrasive stone

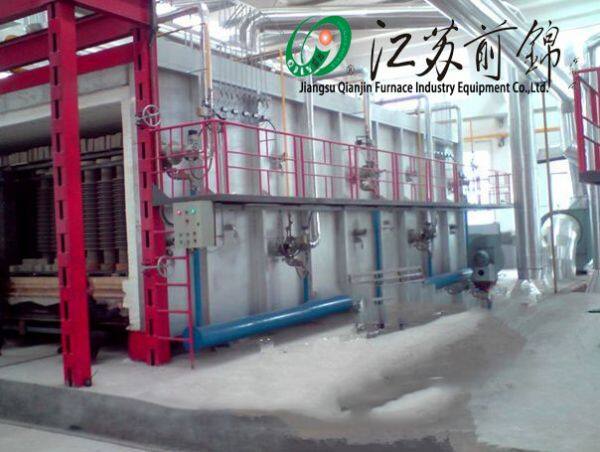

Shuttle kiln for electric ceramic Shuttle kiln for grinding wheel and abrasive stone
- 2 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A
Product Details
Brand Name: | Qianjin | Place of Origin: | China | Model Number: | QJ-60 |
Type: | Blast Furnace | Certification: | ISO9001 | After-sales Service Provided: | Overseas third-party support available |
Warranty: | One year | Weight: | 60T | Dimension(L*W*H): | 10200*4300*3500mm |
Voltage: | 380V | Usage: | Heat Treatment Furnace | Condition: | New |
Power(W): | 45000 |
Product Description
The main technical parameters:
1.The volume of kiln:60m3
2.The dimension of material loading:9000x3000x2300mm
3.Kiln cars in the kiln:3 Units
4.The size of kiln car:3000x2700mm
5.The quantity of nozzles:16 pairs(imported high-speed nozzles)
6.Rated temperature:1450℃
7.Operating temperature:1350℃
8.Roasting product:electric porcelain product,ceramic product
9.Mode of heating:liquefying gas/natural gas

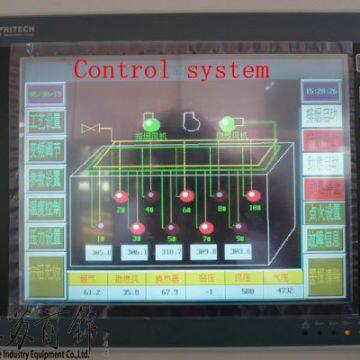

10.Control mode:automation(programmable computer control)
11.Sintering atmosphere: oxidizing atmosphere,reducing atmosphere
12.Rate of temperature increase: 200℃/h
13.The structure of kiln wall: type 1500 mullite brick and polycrystalline cotton,
insulation thickness is 550mm.
14.The structure of kiln car:electric kiln car which is welded by 12# box iron
15.Flue gas exhausting method :discharge the gas from both sides,chimney is made of stainless steel
16.Surface temperature: it is not greater than 50℃ on the top, not greater than 40℃ for the side face, meet the requirement of the national standard.
The kiln and furnace department of Qianjin enterprise is specialized in making electric ceramic shuttle kiln and shuttle kiln for grinding wheel and abrasive stone. The company owns the technology about industrial furnace of China,Japan and Germany,energy-saving and high-efficiency, reliable quality and worry-free after the using of customers.
Thanks for choosing QJ as your reliable partner and trust we will create a brilliant future!
Wish us a pleasant cooperation!
