Help CenterContinuous Mesh Belt Furnace 12M Mesh Belt Furnace for the Drying
Related Products
-
Glass Annealing Furnace Decoration Firing Mesh Belt FurnaceCNY 400000 - 500000MOQ: 1 Set -
Mesh Belt Furnace Mesh Belt Furnace for Binder Removal and DryingCNY 400000 - 600000MOQ: 1 Set
-
Mesh Belt Furnace Mesh Belt Furnace of Bright AnnealingCNY 400000 - 500000MOQ: 1 Set
-
The Specialized Pushed-slab Kiln of Ultra-purealumina PowderCNY 1500000 - 2000000MOQ: 1 Set
-
High Temperature Shuttle Kiln of 22m³ , 1800℃CNY 800000 - 1500000MOQ: 1 Set

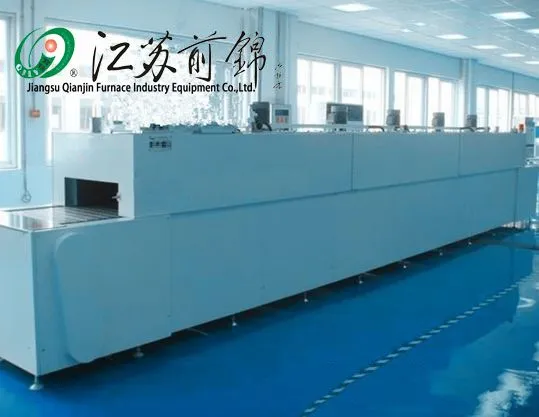

The mesh belt furnace is one kind of industrial furnace with production line and continuous operation,this furnace is low-temperature drying furnace which is suitable for rapid drying of various products,hot-air forced circulating fan is equipped on the top of furnace, the fan will make forced circulation for the temperature which is generated in the combustion chamber by the heaters on both sides, this will make the uniform distribution of temperature in the chamber which improves the heat transfer efficiency and provides the perfect thermal insulation. It is electrical heating for this mesh belt furnace,it has no pollution for the product and environment and it is convenient to realize the automatic and precise control for the temperature.
Other parameters:
1.Rated frequency：50HZ
2.Rated temperature： 500℃
3.Heating temperature zone: 5 zones of electrical heating in total
4.The height of furnace mouth: 2/80mm(adjustable)
5.Temperature control accuracy：±3℃
6.Speed of service: 200∽1000mm/min
The features for the drying mesh belt furnace:
1.It operates steadily, transmission performance is stable.
2.Technological parameter is easy for the adjustment, working environment is good, non-pollution.
3.The energy-saving effect is good,production efficiency is high.
4.The mesh belt furnace is made of heat resistant steel ,long lifetime.
5.It can be used for multiple products.
6.PID control,temperature control accuracy is high.
Note: it can be designed and manufactured according to the requirements of customer.
Please enquire us for more specifications and parameters as well as detailed technical scheme.

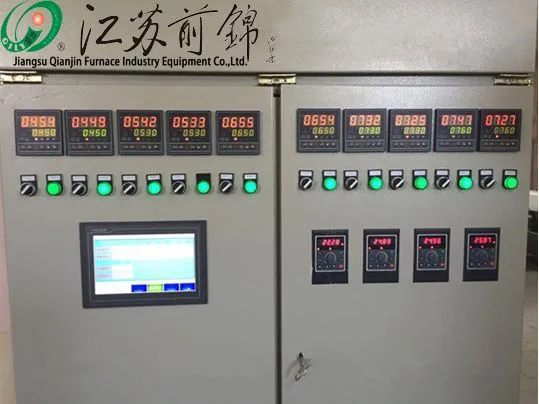

Fully automatic control system, it is set over-temperature alarm function internally,
big-sized touch screen.
Thanks for choosing QJ as your reliable partner and trust we will create a brilliant future!
Wish us a pleasant cooperation!
