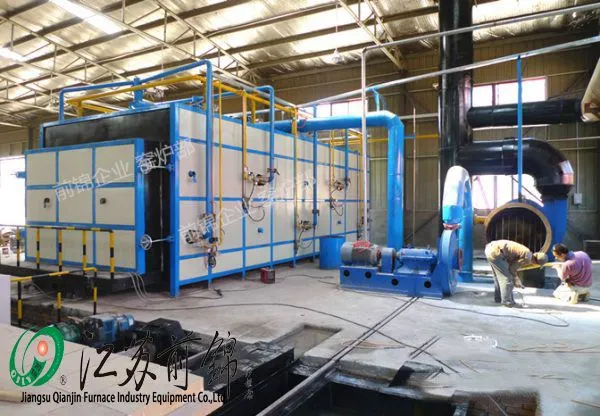

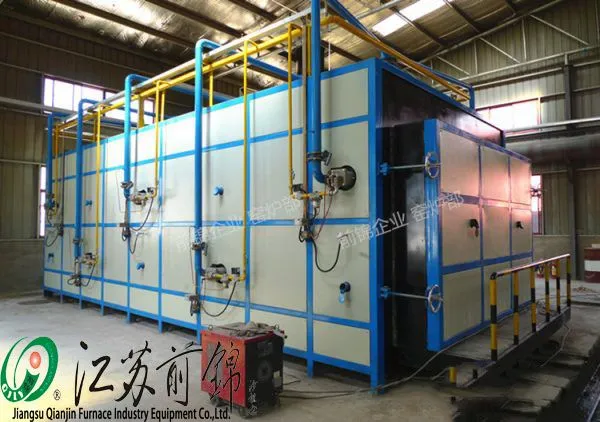

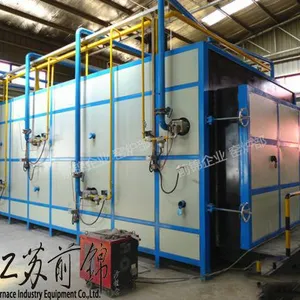

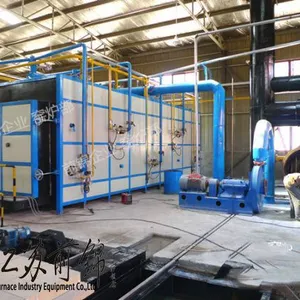

Ceramic shuttle kiln of natural gas 26m³

The brief parameters of the kiln:

1.The volume of kin：26m³

2.The dimensions in the kiln：8000*2400*1400mm

3.Outside dimensions：9300*3500*3200mm

4.The kiln cars in the kiln:4 units

5.The standby kiln cars outside of the kiln: 4 units

6.The dimensions of kiln car：2000╳2300mm

7.The quantity of burners: 10 pairs（high speed burners are imported）

8.Rated temperature：1500℃；

9.Operating temperature：1400℃

10.Calcined products: Ceramic

11.Method: liquefied gas/natural gas Heating

12.Control mode: automatic (computer control)

13.Sintering atmosphere: oxidizing atmosphere,reducing atmosphere

14.Rate of temperature increase：150℃/h，

15.The form of furnace door : traction

16.The structure of gas flue: the material of gas flue in the kiln car is mullite,

discharge the smoke from both sides or rear walls.

17.The structure of kiln walls: mullite bricks,thermal insulation thickness 480mm .

18.The structure on the top of kiln: mullite suspended ceiling,the material is the same as furnace walls.

19.The structure of kiln door:use imported fiber, fix with metal framework externally.

20.The structure of kiln car : electric kiln car which is welded with 14# box iron.

21.Flue gas exhausting method: discharge the smoke from both sides or rear walls. The chimney is made of high temperature stainless steel.

22.Surface temperature: it is not greater than 50℃ on the top and not greater than 40℃ laterally which comply with the requirements of national standard.

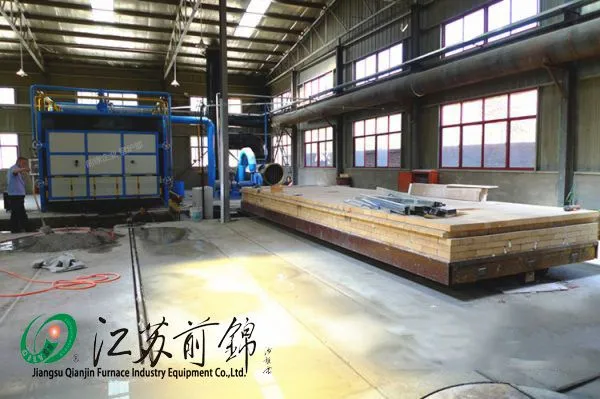

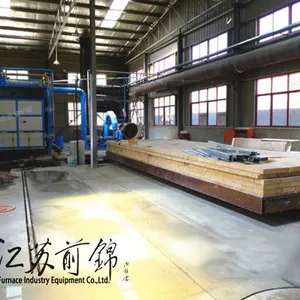

23.The external standby kiln car uses drag conveying,the quantity of kiln cars can be designed according to product demand .

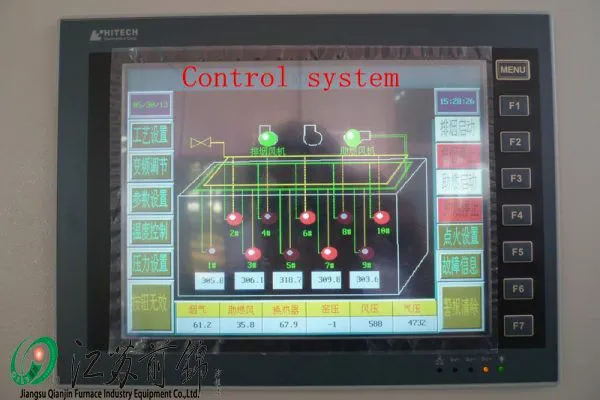

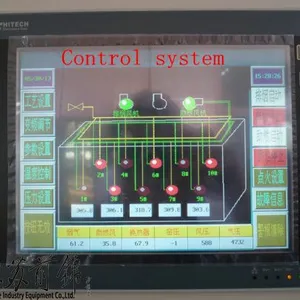

24.Full-automatic electrical control system for shuttle kiln, programmable touch screen,set up the system by remote control.

25.Our company has passed ISO 9001:2008certificate of quality system

The kiln and furnace department of Qianjin Enterprise, the professional manufacturer of ceramic shuttle kiln, the company has industrial furnace qualifications for three countries,that is,China, Japan and Germany, the energy conservation is highly effective, the quality is reliable, the customers don’t need to worry anything after using it.
