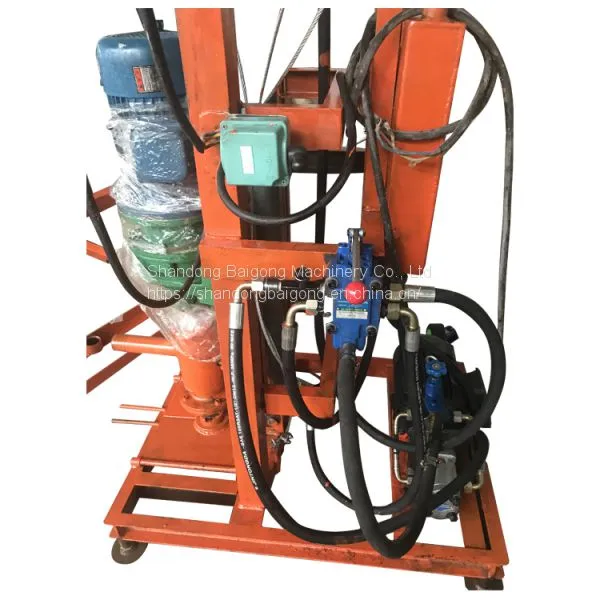

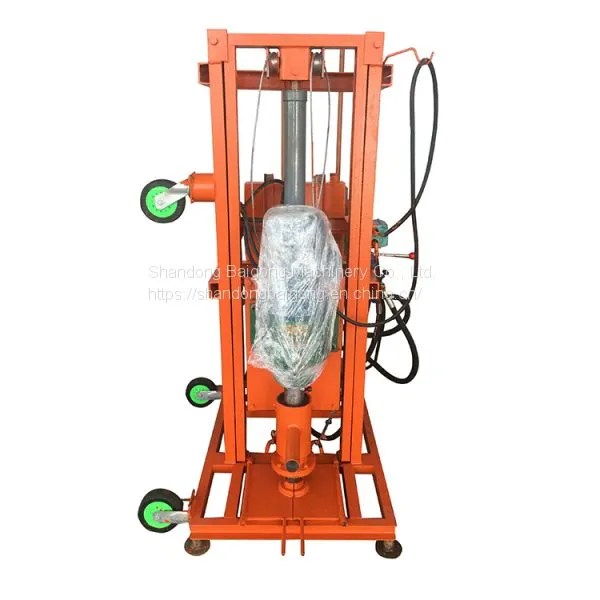

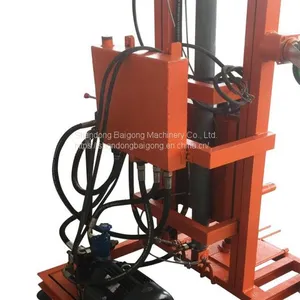

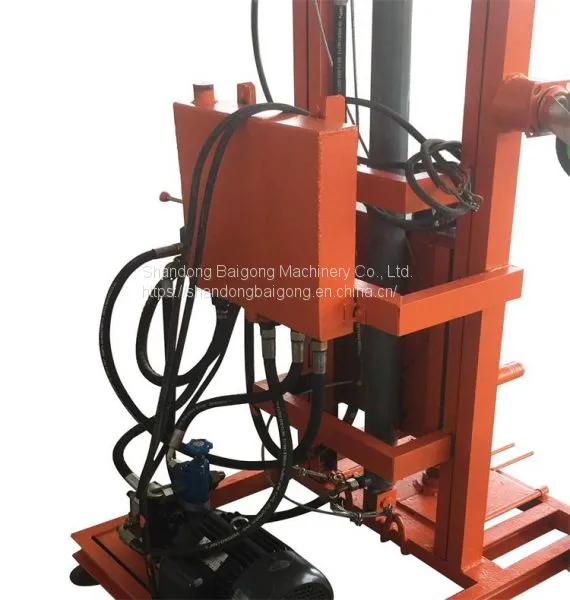

High efficiency Hydraulic lift electric water well drilling rig
Product Description:
Hydraulic lift electric drilling rig is a new mechanized drilling rig with high efficiency, light weight, economy and practicability produced by our factory. Its advantages are: large torque, small volume, portable, high efficiency, easy operation, low noise and adaptability to various environmental topography. The machine is easy to use, simple to operate, fast to form holes. It can be operated by a single person at about 10 meters per hour. It can dump the drill pipe mechanically. Taking a well drilled at 100 meters as an example, the average time of drill pipe disassembly takes about 10 minutes. After completion of drilling operation, the machine can be moved by a single person.
parameter:
Parameter |
Unit |
BF-hydraulic lifting electric drilling rig |
Power Voltage |
V |
380(Positive and Reversible) |
Motor Power |
Kw |
Main Motor 3kw/5KW, Oil Pump 3KW |
Borehole diameter |
mm |
32-220 |
Drill pipe diameter |
1 inch, 1.2 inch, 1.5 inch various specifications and lengths can be selected |
|
Bit Specification |
Multi-bore Alloy and Diamond Bit Selection |
|
Drilling depth |
M |
100 |
weight |
Kg |
200 |
Suitable for soil, |
mud layer, quicksand layer, small amount of rock layer, pebble, etc. |
