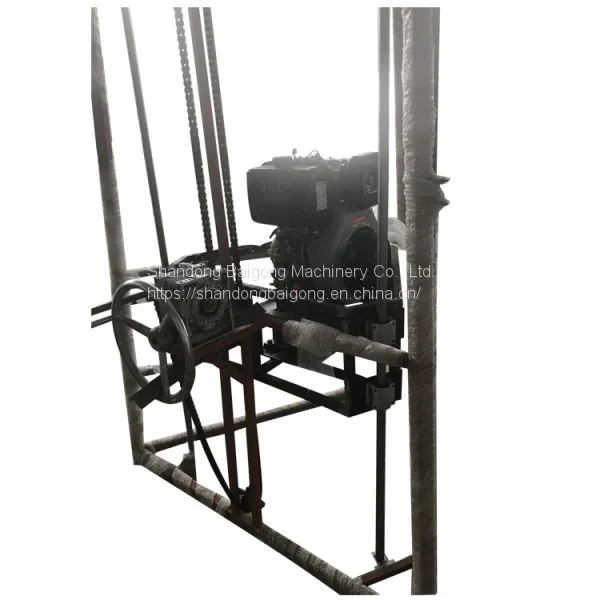

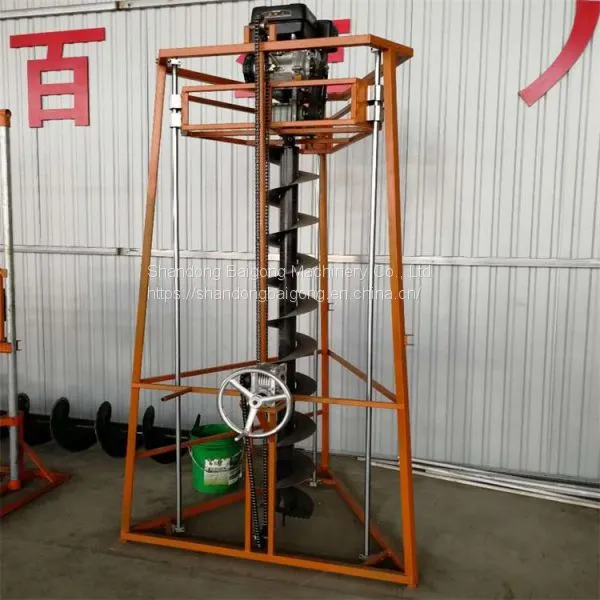

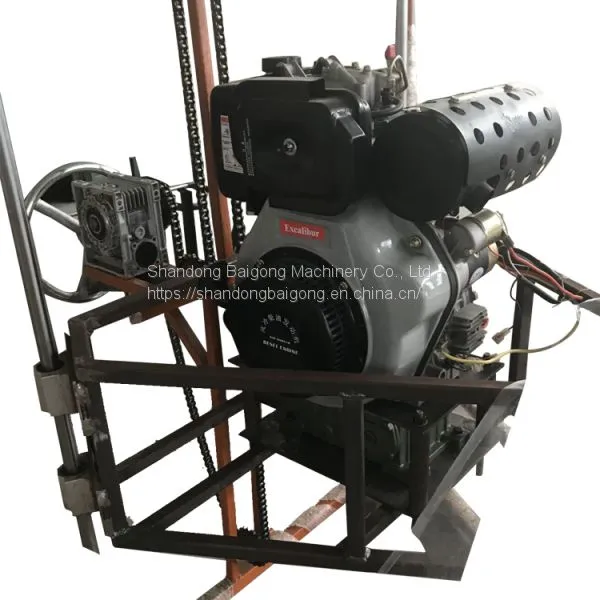

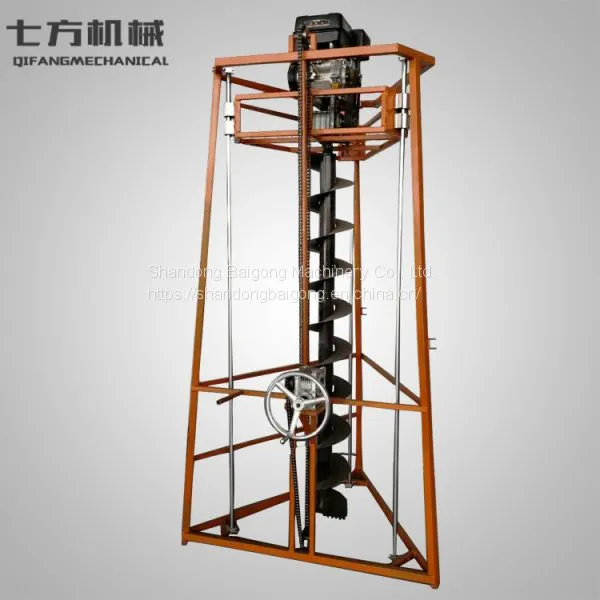

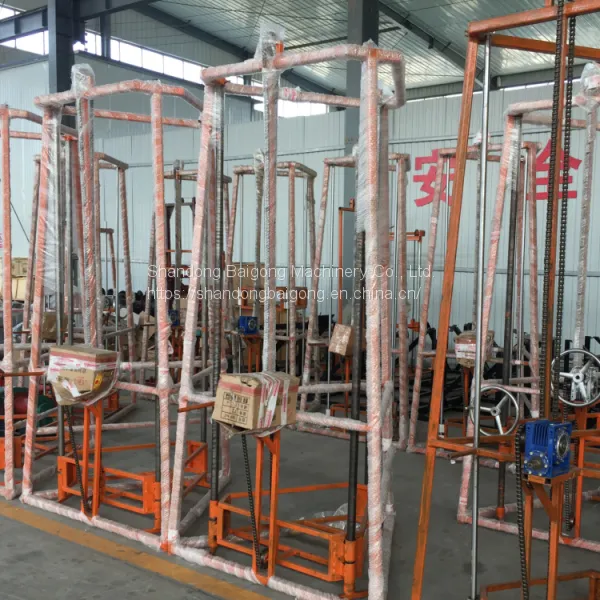

Tripod Pit Digger

Name: Tripod Pit Digger
Brand: Bafang
SKU: 161168089
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Bafang

Place of Origin:

China

Model Number:

BF-30

Shandong Baigong Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

15 days

Brand Name Bafang

Place of Origin China

Model Number BF-30

Type Core Drilling Rig

After-sales Service Provided No overseas service provided

Weight 180kg

Dimension(L*W*H) 510×410×470mm

Power Type Diesel

Usage Ore

Condition New

Power(W) 4000

Parameter	unit
Drilling depth	mm	2500-2650
Drilling tower height	mm	2200-2500
Max drilling diameter	mm	400
Optic axis diameter	mm	25
Optic axis quantity		3
Gasoline engine model		170F	190F
displacement	Ml	212	420
Power	Kw	4	8.5
Gasoline engine type		Single cylinder 4 stroke
Cool type		Air cool
Rated speed	r/min	3600
Max torque	N·M
Fuel tank capacity	L	3.6	6
Gasoline		92#
Weight	Kg	180	200
Reduction box ratio		1:10
Reduction box weight	Kg	17
Start type		Hand start
Transfer motion type		Reducer optical axis chain drive
Gasoline packing size	mm	510×410×470	660×600×970
Drilling machine packing type		Thickening thin film
