Help CenterDY-HT70MD Portable Intelligent Multi-faceted Blackbody Furnace (room Temperature +5°C~150℃)
Related Products
-
DY-HT2M-70 Small Size High Precision Surface Source Blackbody Furnace (radiation Surface 70mm)NegotiableMOQ: 1 Piece -
DY-HT1M-70 Small Size High Precision Surface Source Blackbody Furnace (radiation Surface 70mm)NegotiableMOQ: 1 Piece
-
DY-HTX1 Blackbody Radiation Source for Thermal Image Public Entrance Temperature TestNegotiableMOQ: 1 Set
-
Infrared Thermometer Calibration Instrument/Black Body Radiation SourceNegotiableMOQ: 1 Piece
-
DY-HT1M-150XK Blackbody Radiation Sources of Radiation Thermometry (50-500°C)NegotiableMOQ: 1 Piece
Product Introduction
Definition of black body: an object that can absorb all external radiation energy and radiate all its own energy at the same time.
The main technical indicators of black body: emissivity of black body, diameter of black body cavity, temperature uniformity and uncertainty of radiation temperature. Therefore, in order to ensure the product quality of black body, black body is usually designed according to temperature segmentation. Usually what we call black body is artificial black body. The emissivity of artificial black body is close to 1, but not equal to 1.
The main function of black body is to generate standard radiation at a certain temperature. Therefore, it is mainly used to calibrate various radiation thermometers, such as optical pyrometers, infrared thermometers, infrared thermal imagers, etc. in temperature measurement.
Black body is mainly used in the field of temperature measurement in industry, and the main product is black body furnace. For the calibration and verification of radiation thermometer, the comparison method is usually used, that is, through a high-stability radiation source (usually a black body radiation source) and other supporting equipment, the temperature reproduced by the standard instrument is compared with the temperature reproduced by the radiation thermometer to be tested to determine whether it is qualified or give a calibration result.
As a standard radiation source, standard black bodies are mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensor detectors. Our company currently has advanced black body technology, a full range of black body products with a wide temperature range. The products are small in size, light in weight and easy to carry. They are not only suitable for calibrating radiation thermometers in laboratories of metrology institutions at all levels, but can also be used for on-site calibration.
Product Application
The surface source blackbody radiation source is the infrared radiation working standard. It is widely used in the process test and technical index test of the identification test in the development process of infrared detectors. It can complete the test of parameters such as the uniformity of the photosensitive surface response, response curve and dead pixel of the infrared focal plane device. At the same time, the surface source blackbody radiation source, as the core equipment of the infrared imaging prism device, cooperates with the infrared collimation optical system and infrared target to complete the key technical index test and performance evaluation of the infrared imaging system. It can meet the test needs of the infrared imager in the newly developed infrared imaging guided weapons in my country, and can meet the test needs of infrared thermal imagers widely used in medical, construction, security monitoring, environmental testing and other industries.
Product Features
1. More portable and lighter. Higher precision.
2. Human-machine interface, Chinese display, touch operation, beautiful and elegant.
3. One-key temperature setting, simple operation. Rapid heating and temperature control.
4. According to customer requirements, the language interface of multiple countries and regions can be copied for easy export.
Product Parameters
Model |
DY-HT70MD |
Temperature range |
Side A: RT+5℃~50℃, Side B: RT +5°C~80℃, Side C: RT+5°C~150℃ |
Display resolution |
0.01°C |
Temperature control |
PID automatic control |
Control mode |
Touch screen |
Emissivity |
≥0.995 |
Radiant surface |
ↀ70mm |
Temperature stability |
±0.2°C/10min |
Temperature uniformity |
±0.3℃ (2/3 area) |
Default display |
English display Full color LCD ℃ or ℉ |
Power supply |
220VAC 50/60HZ |
Battery life |
Full power heating time 2h Standby time 36h |
Dimensions |
155mmX 160mm X120mm |
Weight |
1.7KG |
Remark |
Other special requirements can be customized according to user needs |

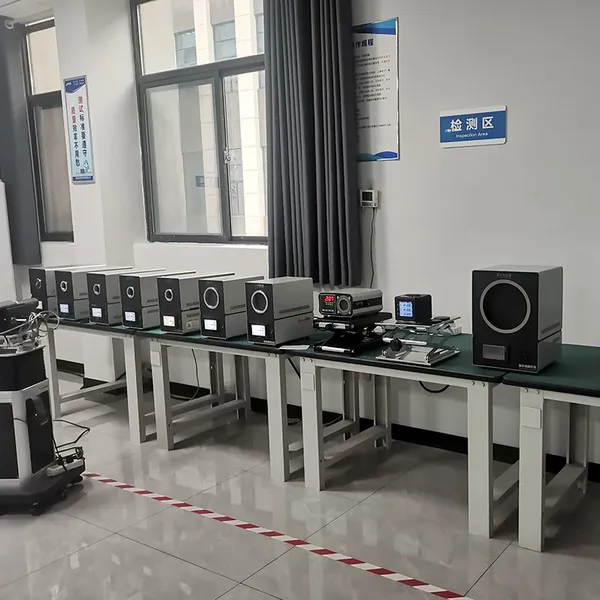

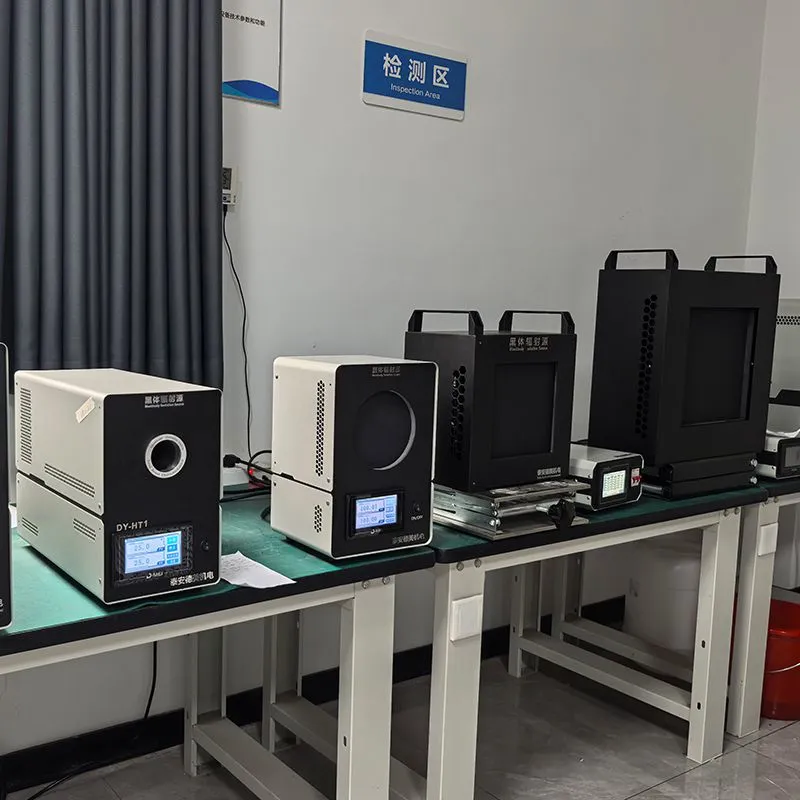

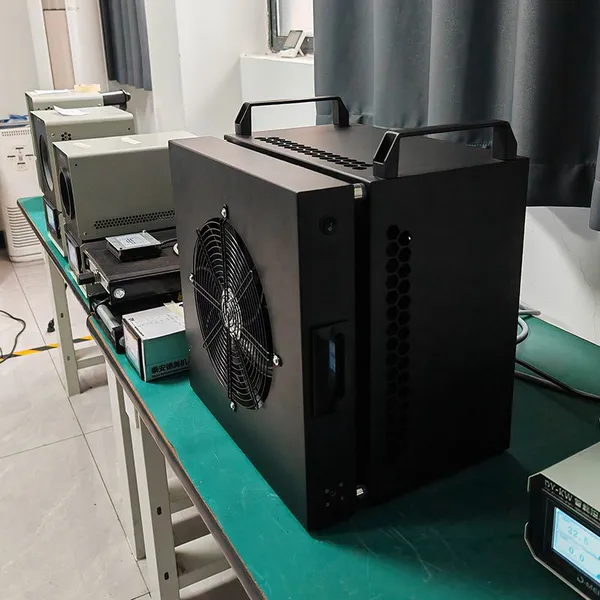

Product photos
If you have any questions,please feel free to contact us!
Tel: +86 186 5382 5886
Wechat:demeicalibrator
Email: sales@dmthermo.com
