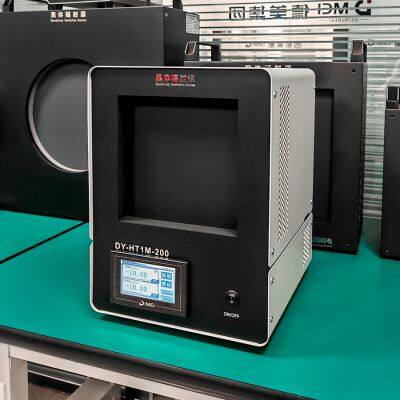

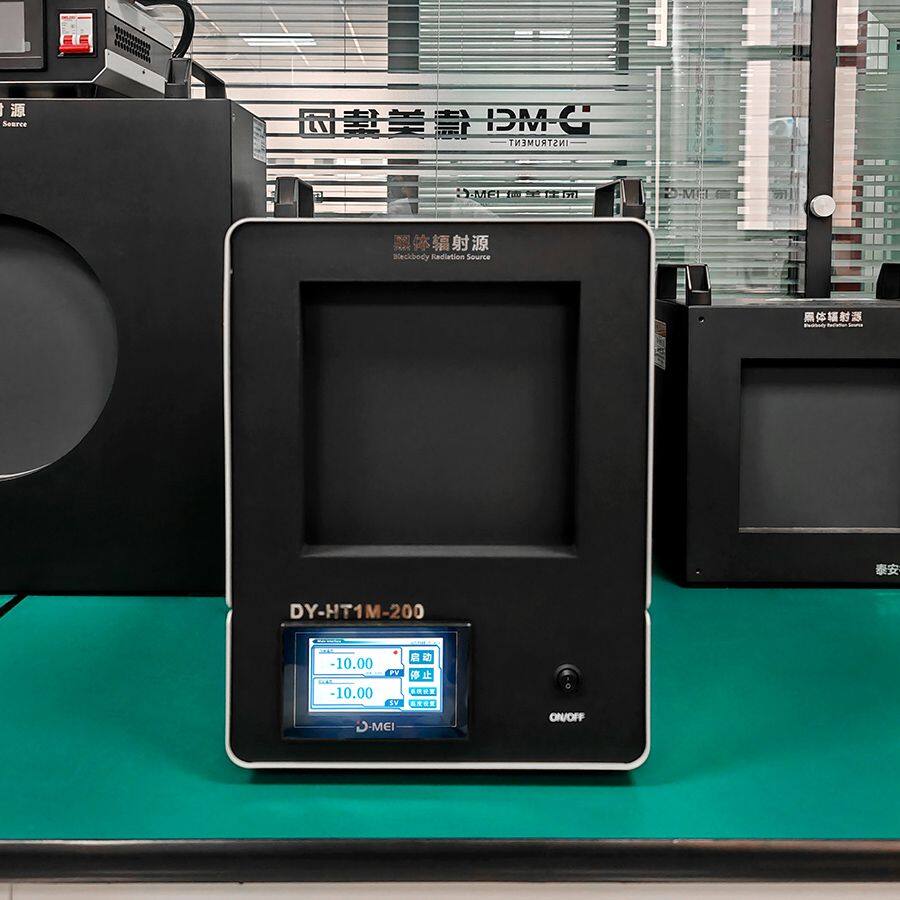

DY-HT1M Infrared Thermometer Calibration Instrument/Black body radiation source
【Features】
1. 200mm large-area low-temperature blackbody furnace, with a large effective radiation surface and uniform temperature field.
2. Human-machine interface, Chinese display, touch operation, aesthetically pleasing and user-friendly.
3. One-button temperature setting, simple operation. Rapid heating and temperature control.
4. Language interface can be customized to any language worldwide according to customer requirements, facilitating export.
【Product Advantages】
1) Novel design with a separate structure for the furnace body and temperature controller.
2) The heating element is insulated from the outer casing, and special software is used for pressure-limited heating, eliminating the need for a high-power power transformer.
3) Features automatic temperature control, ensuring safety and reliability, fast heating speed, and excellent temperature stability.
4) Rapid heating and short stabilization time; it takes only 8 minutes to reach the target temperature from room temperature to 80℃.
5) Fast cooling speed and short stabilization time, suitable for multiple data measurements in high and low temperature ranges.
6) Easy to use, small size, and lightweight, making it portable and suitable for both laboratory and on-site calibration work.
7) Automatic intelligent adjustment: Includes MH logic intelligent adjustment function and advanced control algorithms with parameter self-tuning capabilities.
8) Temperature fluctuation curve: The system is configured with a temperature control curve to monitor temperature changes in real time.
9) Communication interface: RS485 serial port can be customized according to user requirements.
10) Customizable emissivity adjustment function (adjustable between 0.95 and 1).
11) Programmable control system: Operating modes and parameters can be programmed or preset according to user needs.
12) The materials used in the equipment must have good safety performance and meet RoHS requirements. Components in contact with the product made of black rubber, PVC, and polyurethane require RoHS reports.

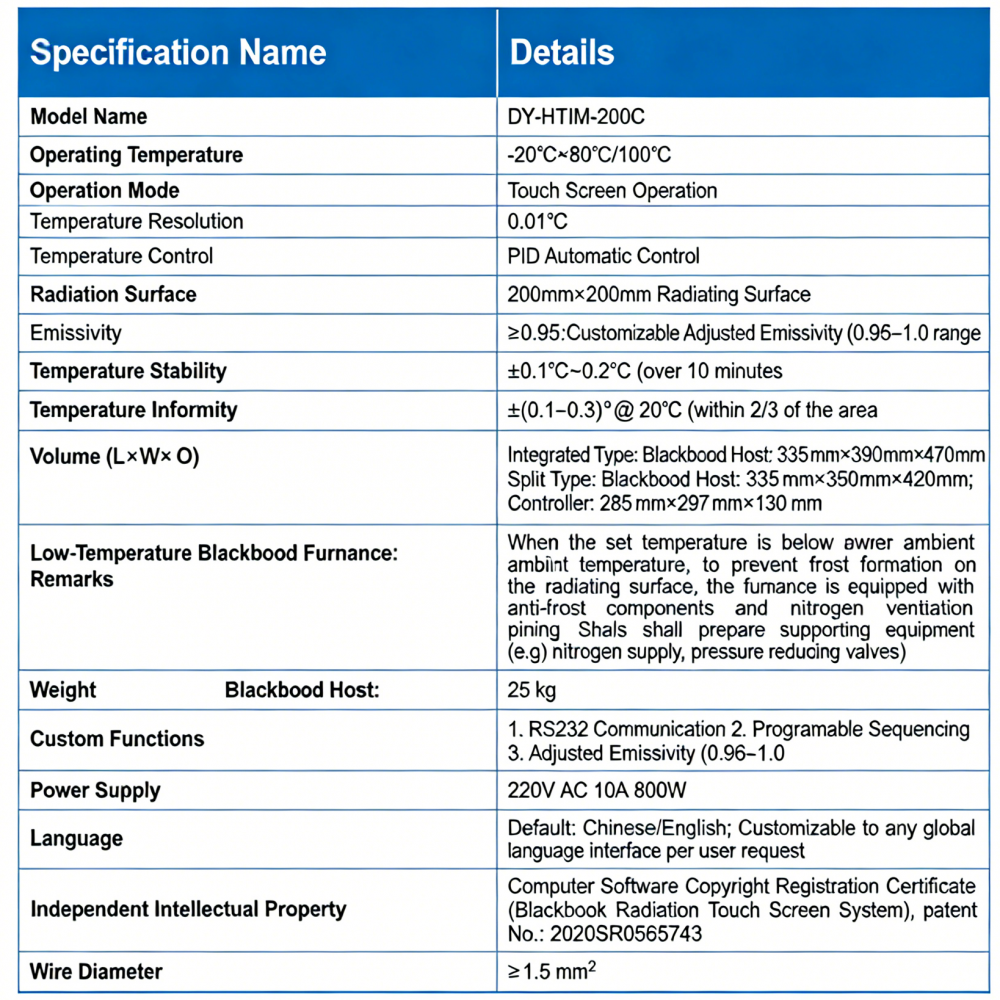

【Technical Parameters】
